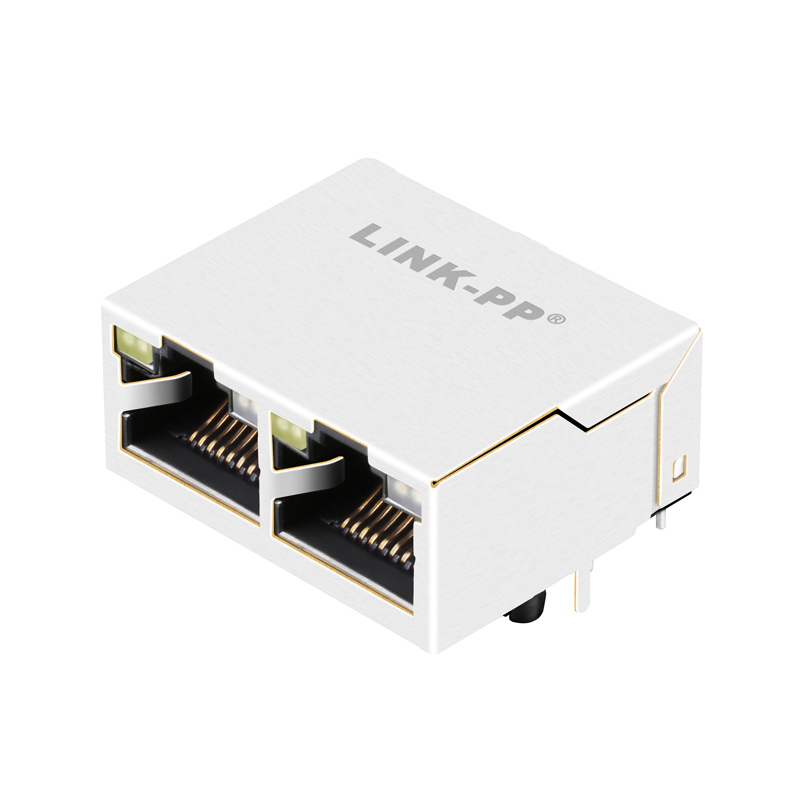

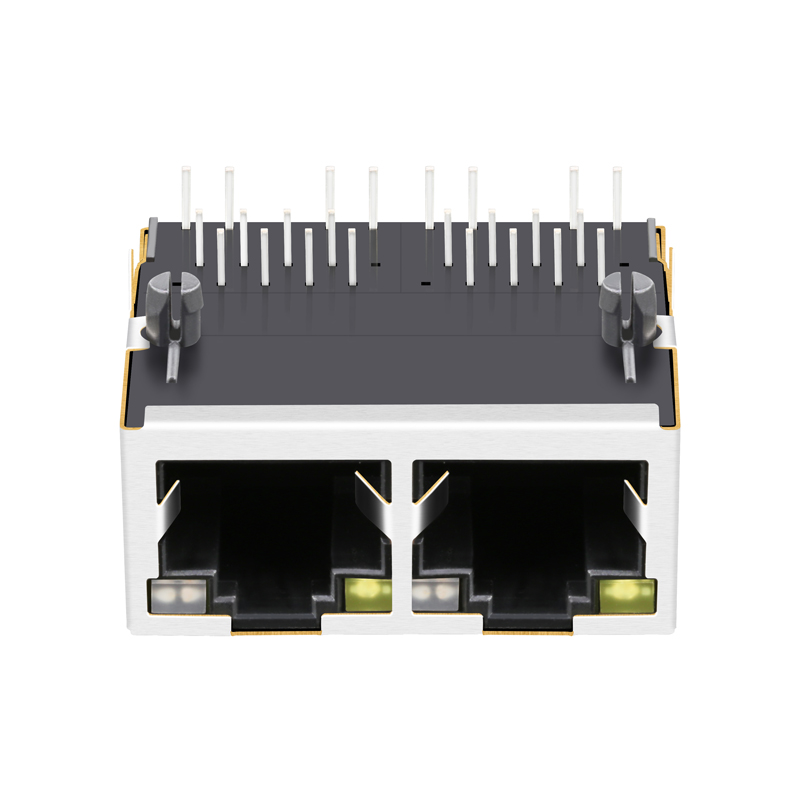

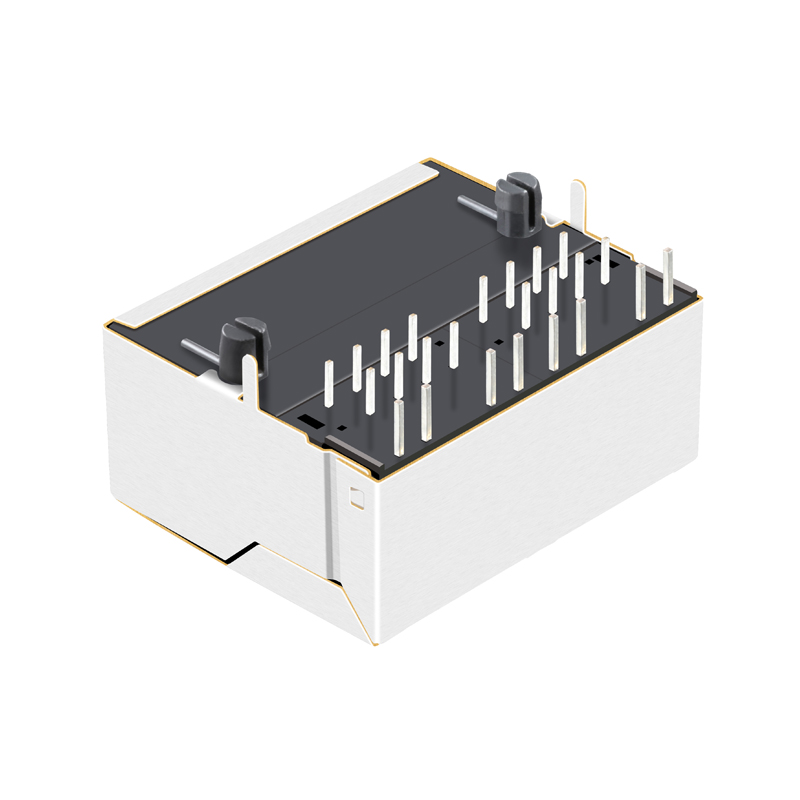

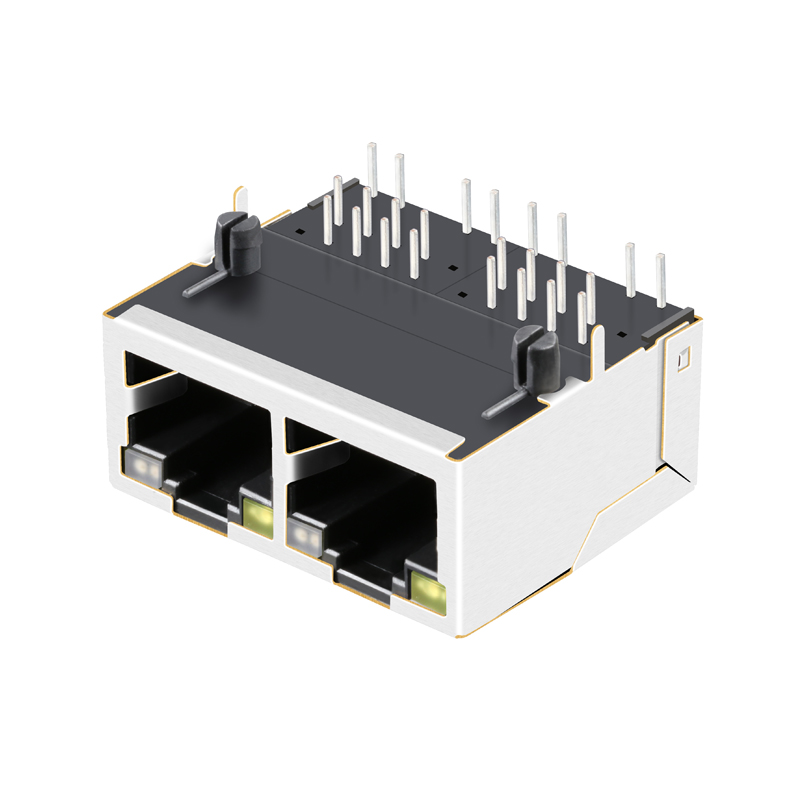

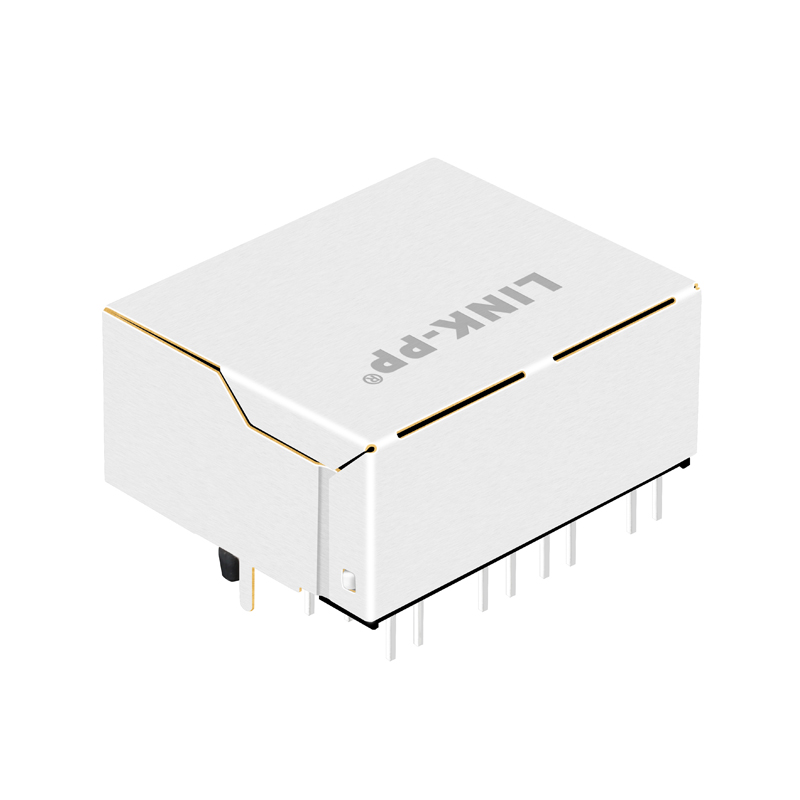

Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2
| Part Number |
1840538-3 6610128-1 1840538-4 1840538-2 |
| Application-LAN |
ETHERNET(NoN POE) |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Cores Per Port |
6 |
| Diodes |
NO DIODES |
| LED Option |
GREEN/GREEN |
| Latch |
UP |
| Number of Ports |
1x2 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH |
| Shielding |
Shielded |
| Speed |
10/100 Base-T |
| Temperature |
0°C ~ 70°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Preferred Supplier Of TI, Samsung, Cisco, Siemens...
Approved for BeagleBone Board designs
Logo featured on BeagleBone Board
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
- Manufactured Under Strict Controls
- 100% Tested (Not Just Batch Tested)
- OEM Of TE (Tyco) For 9 Years
- Successful Customer: Texas Instruments, Samsung, Cisco, Siemens, and Intel…
- Preferred Supplier Of TI (Texas Instruments)
- Quality Guarantee: 6 Years
- More Competitive Price Than Pulse, Tyco, Halo, Wurth, and Amphenol
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
- 90% Off Shipping Cost By DHL, UPS, FEDEX, Or TNT
Shielded Magnetic Qual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2
Frequently Asked Questions (FAQ)
What are the primary applications for these shielded RJ-45 connectors?
These shielded magnetic dual ports RJ-45 connectors are designed for standard Ethernet (Non-PoE) applications, offering efficient signal routing and noise reduction at 10/100 Base-T speeds.
What certifications and environmental compliance standards do these connectors meet?
The connectors are manufactured under strict ISO 9001:2008 quality controls. They are UL Certified, Reach Certified, and RoHS Compliant (RoHS-5 with lead in solder exemption).
What is the operating temperature range for these parts?
These RJ-45 connectors are rated to operate reliably within a standard temperature range of 0°C to 70°C, making them suitable for commercial and standard industrial environments.
Are custom designs and product samples available?
Yes, custom designs can be developed to meet specific project and board layout requirements. Free samples are available for performance evaluation and testing before placing bulk orders.
What guarantees are provided regarding the quality of these connectors?
Each connector undergoes 100% individual testing (not just random batch testing) to ensure high-reliability performance. All parts are backed by a comprehensive 6-year quality guarantee.
How do these connectors compare in pricing and delivery timeline?
They offer a highly competitive pricing structure compared to major brands like Pulse, Tyco, Halo, Wurth, and Amphenol, with a standard delivery timeline of 2-3 weeks post-order.
