| Item | Value |
|---|---|

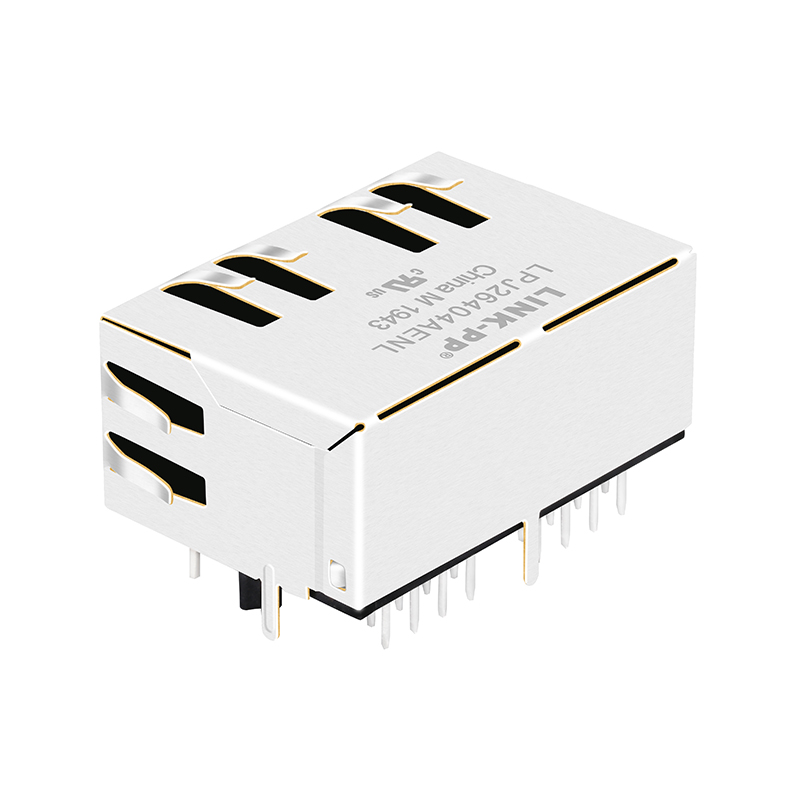

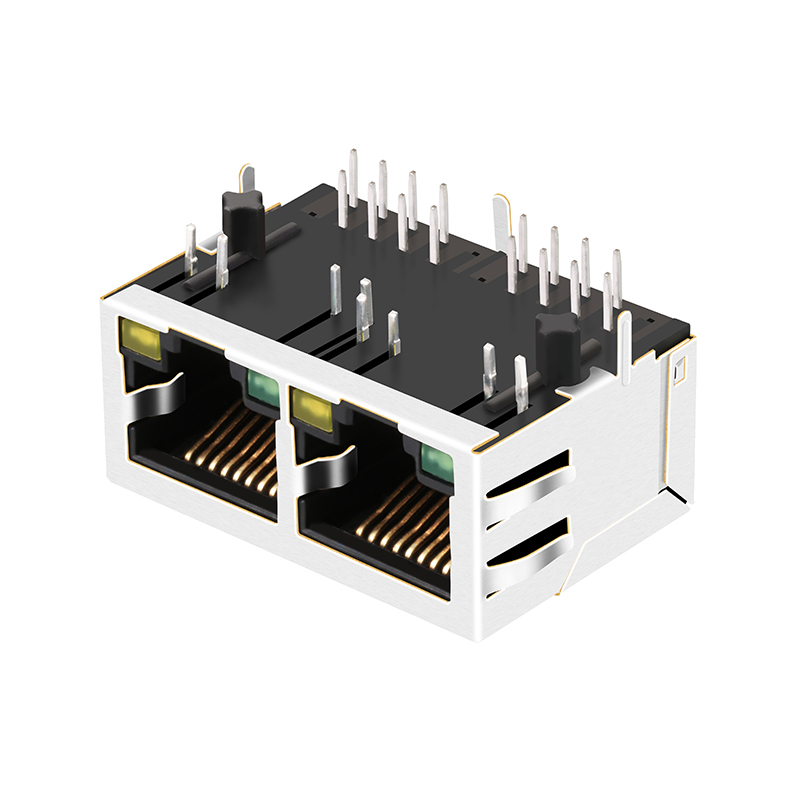

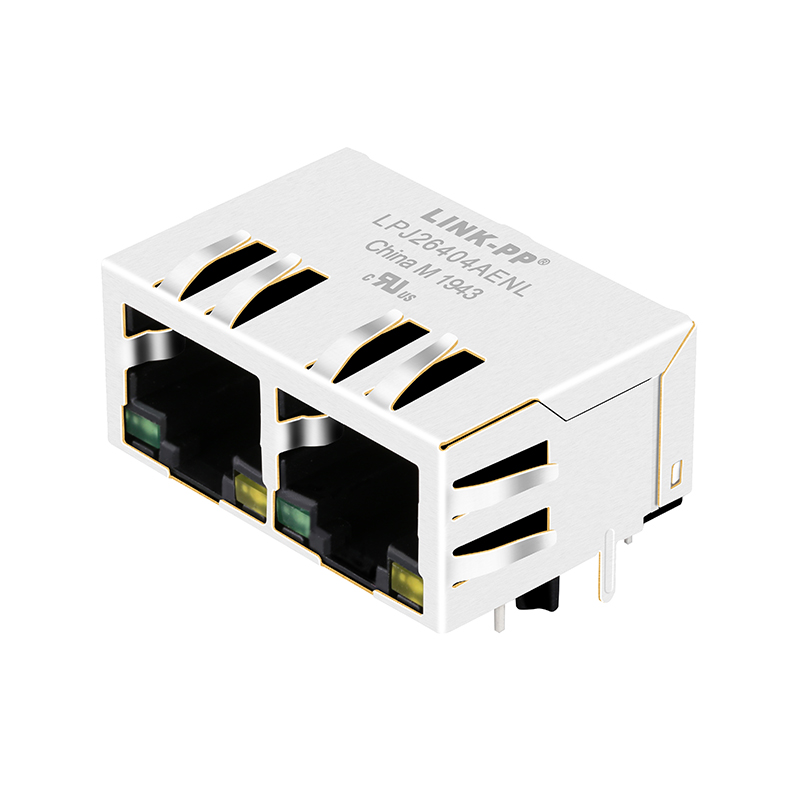

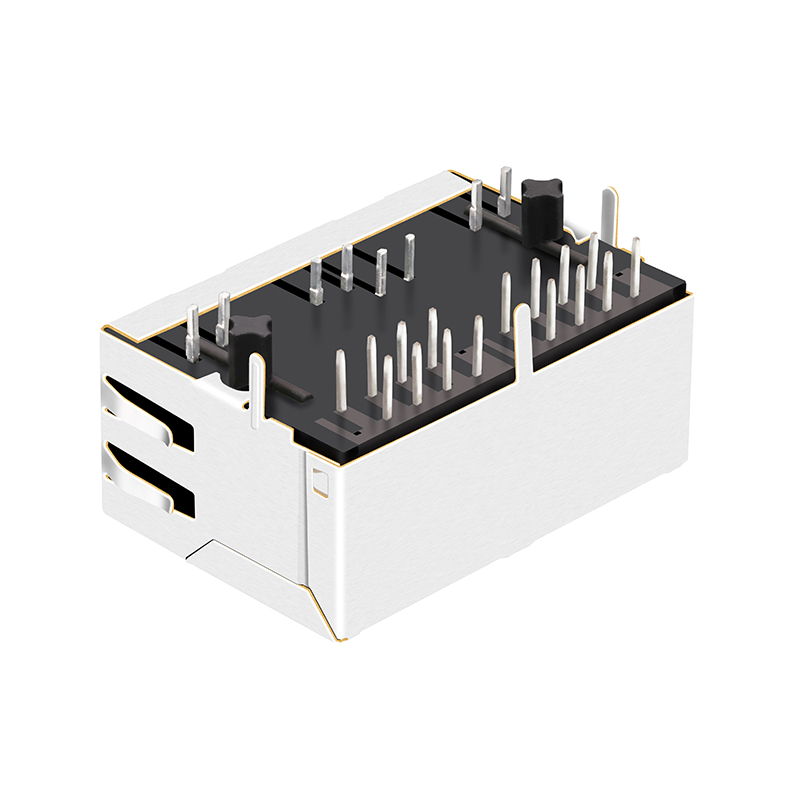

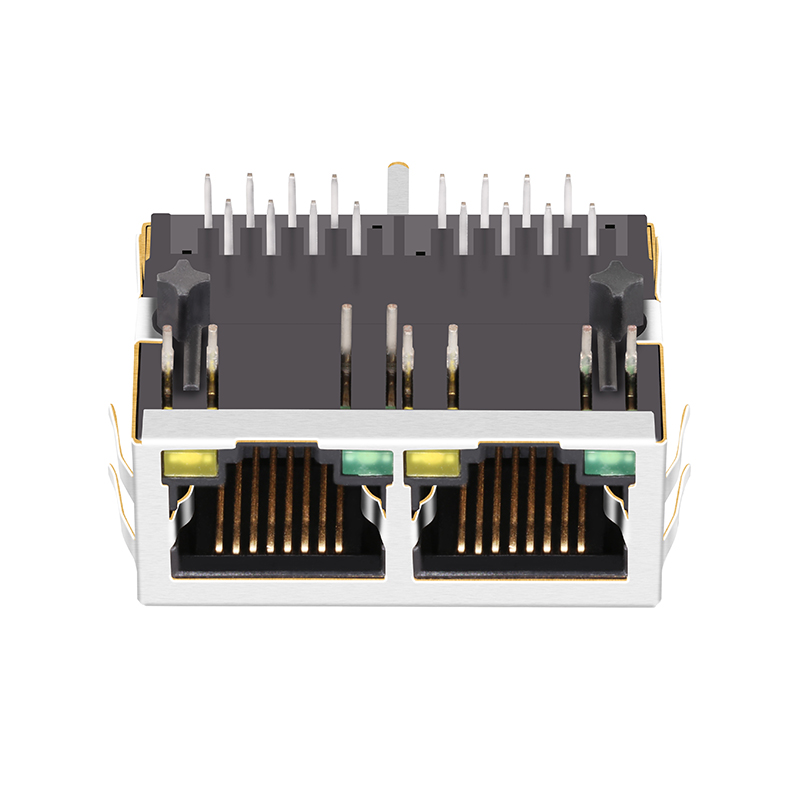

| LINK-PP Part Number | LPJ26404AENL |
| Pulse Part Number | JXD0-2005NL / JXR8-1001NL |
| Part Status | Active |
| Connector Type | RJ45 |
| Applications-Lan | Ethernet(Non_PoE) |
| Speed | 10/100 Base-T, AutoMDIX |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Contact Finish Thickness | 6.00µin (0.152µm) |
| LED Color | Green/Yellow Led |
| Number of Cores per Jack | 4 |
| Shielding | Shielded, Emi Finger |
| Number of Ports | 1x2 Port |
| Features | Board Guide |
| Tab Direction | Down |
| Contact Finish | Gold |
| Configuration RX/TX | T,C |
| Turns Ratio RX/TX | 1CT:1CT |
| Operating Temperature | -40°C ~ 85°C |
As a specialized manufacturer of magnetic telecom and networking components certified by ISO9001:2000, RoHS, REACH, CE, and UL, advanced manufacturing facilities and imported testing equipment are utilized to ensure the highest standards. Dedicated to delivering professional complete solutions and providing strong technical support, products are widely designed into networking and communication systems including HUBs, PC cards, Switches, Routers, Mainboards, SDH, PDH, IP Phones, and xDSL modems.
