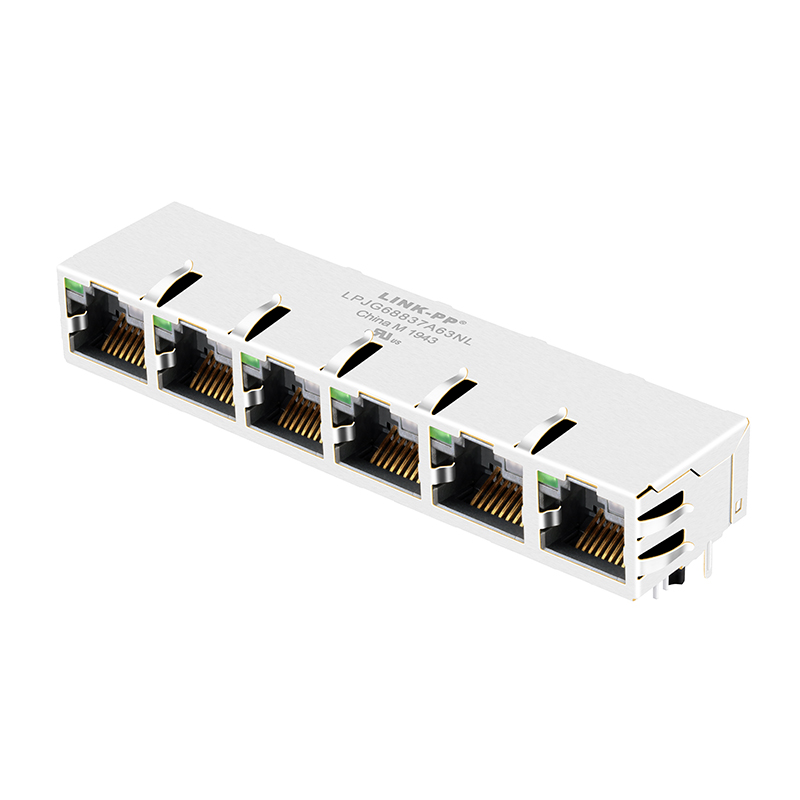

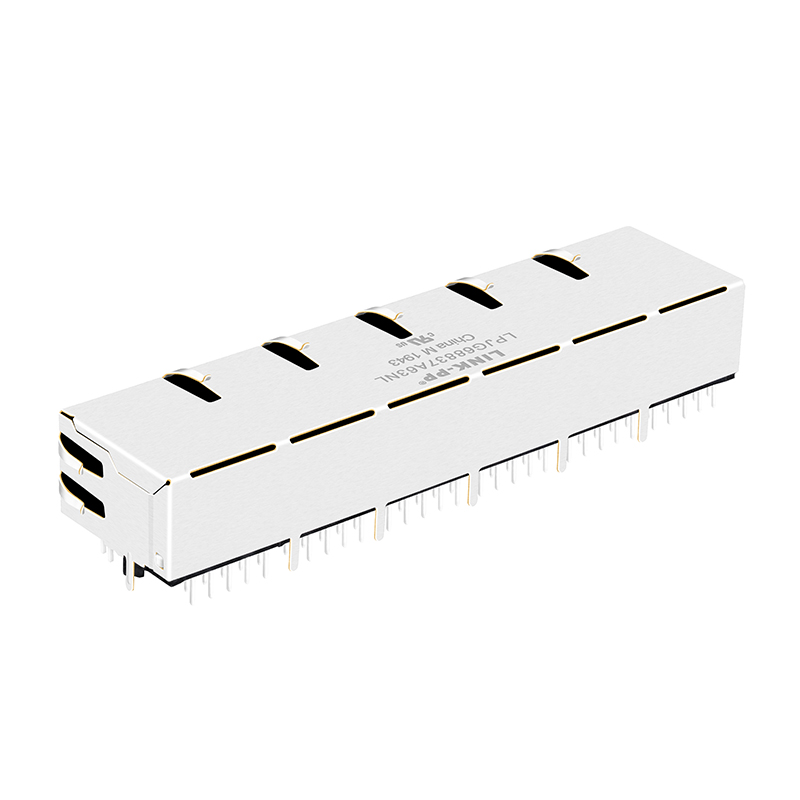

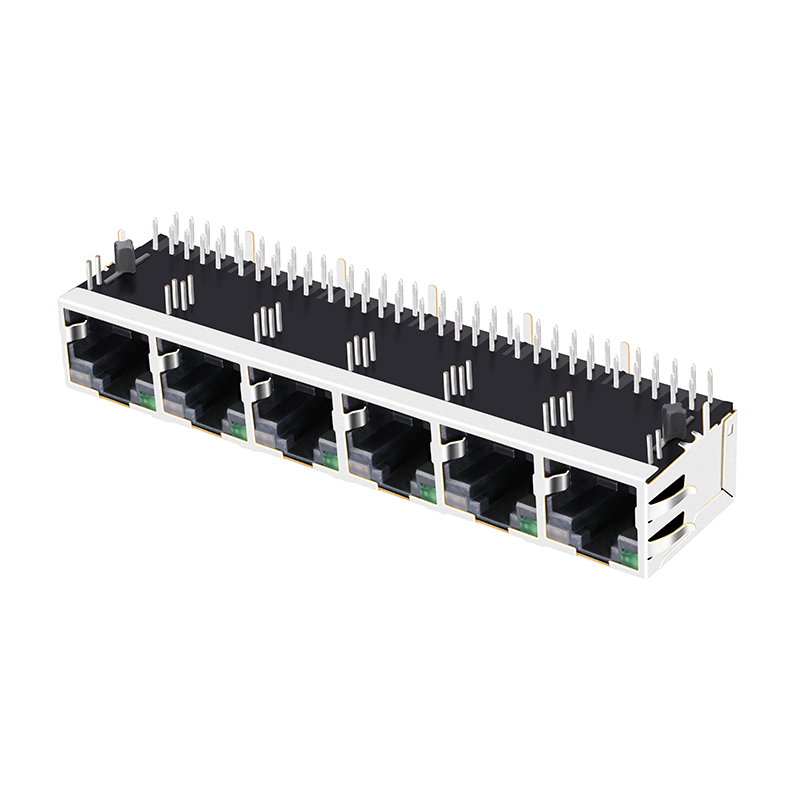

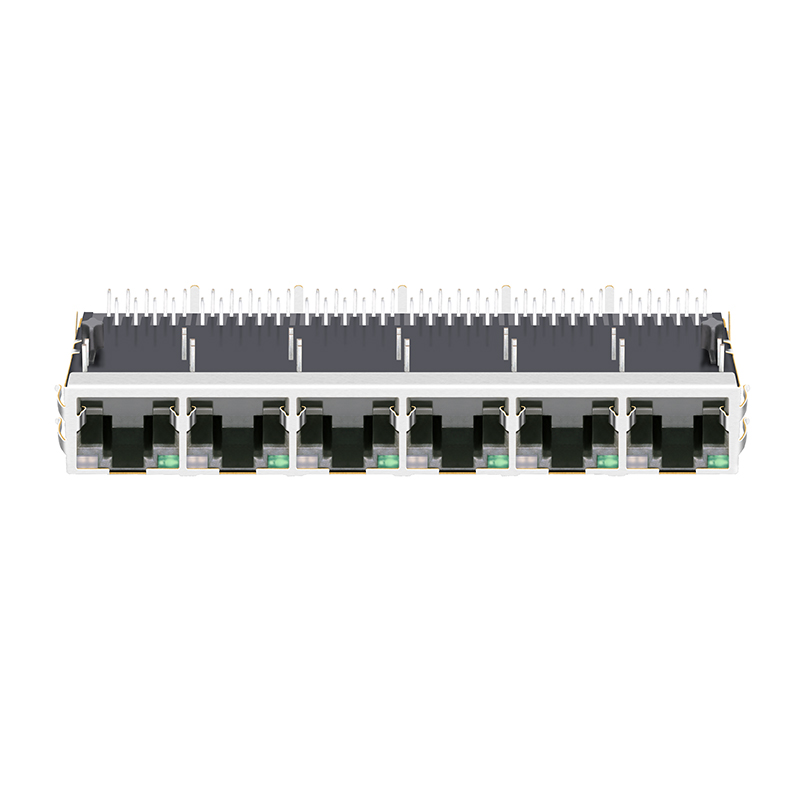

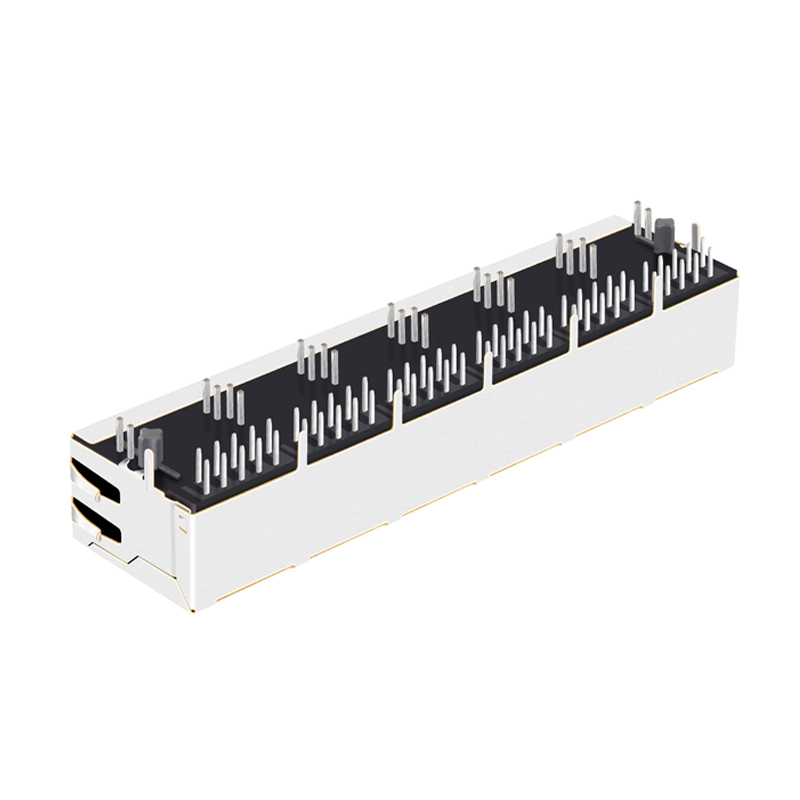

JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack

Product Description

Product Presentation 1
Product Presentation 2
Specification
item value
LINK-PP Part Number LPJG68837A63NL
Pulse Part Number JG0-0070NL
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet(Non_PoE)
Speed 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green/Green&Orange Led
Number of Cores per Jack 8
Shielding Shielded, Emi Finger
Number of Ports 1x6 Port
Features Board Guide
Tab Direction Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C
Detail View 1
Detail View 2
Detail View 3
Detail View 4
Detail View 5
Detail View 6
About Our Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE and UL. We own advanced manufacturing facilities and testing equipment imported from abroad. Established in 1997, we support around 2000 staff members. With an abundant production capacity of 3000K units per month, we ensure prompt order delivery. Furthermore, we deliver professional, end-to-end solutions for magnetic components alongside robust technical support. Our products are widely implemented in networking and communication apparatus including HUBs, PC cards, switches, routers, PC mainboards, SDH, PDH, IP Phones, and xDSL modems.
Main Product Categories
  • 10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetics
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Application Image 1
Application Image 2
Application Image 3
Frequently Asked Questions
Are you a manufacturer or trade company?
We are a specialized manufacturer of RJ45 connectors and LAN Transformers with over 23 years of industry experience.
Can I get some samples?
Yes, we provide 3-5 pcs of free samples for qualification and testing purposes. Small batch orders are also accepted.
Is OEM service available?
Yes, we offer comprehensive OEM customization. We have the capability to implement your specific designs and laser print your brand on the products.
How about the lead time?
We manage production with highly professional staff. Typically, products can be shipped within 30 days. Please reach out to our team for exact scheduling details.
What compliance and quality standards do your products follow?
All our products are manufactured to meet global standards and are certified by ISO9001:2000, RoHS, REACH, CE, and UL.
What are the primary applications of these magnetic components?
Our RJ45 connectors and pulse transformers are widely implemented in networking equipment like routers, mainboards, network switches, IP phones, and xDSL modems.
