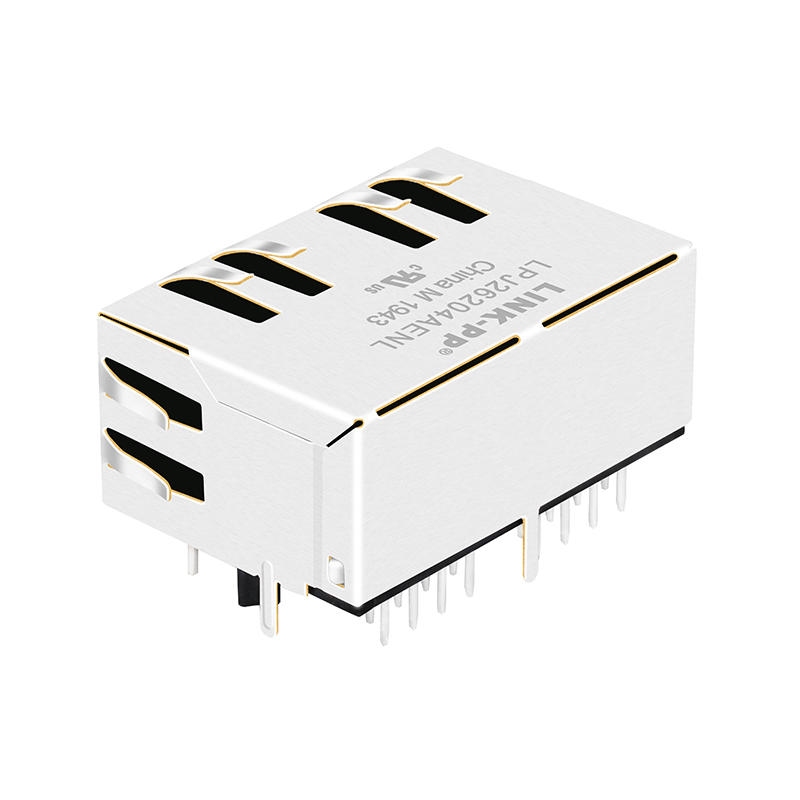

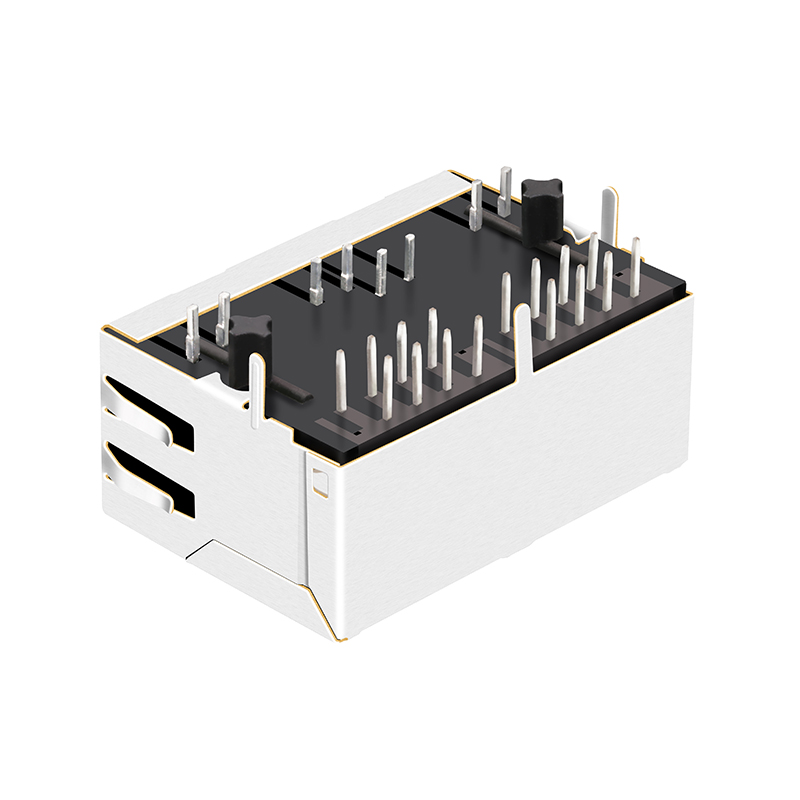

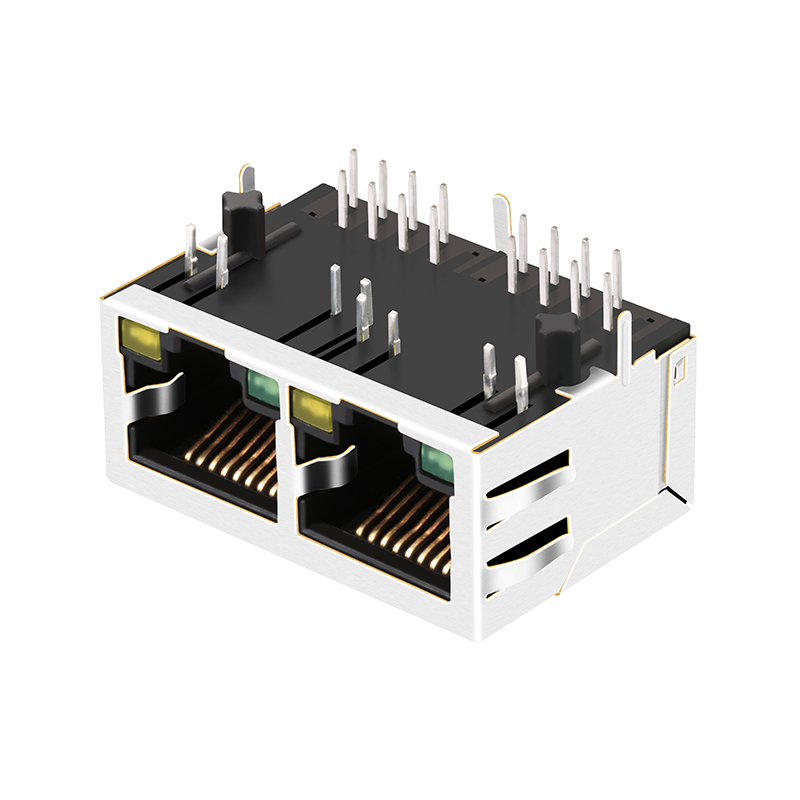

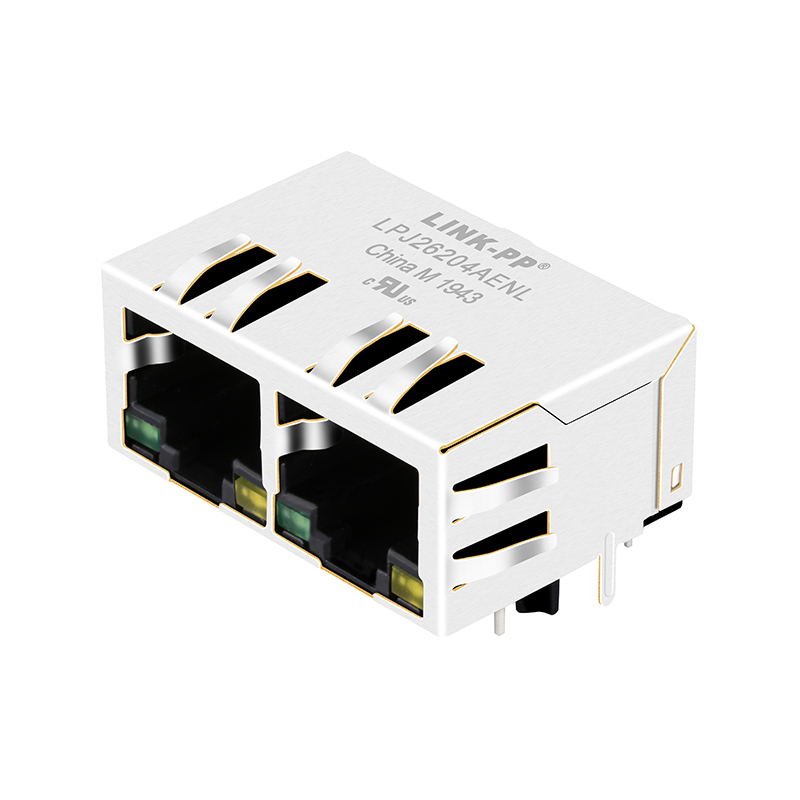

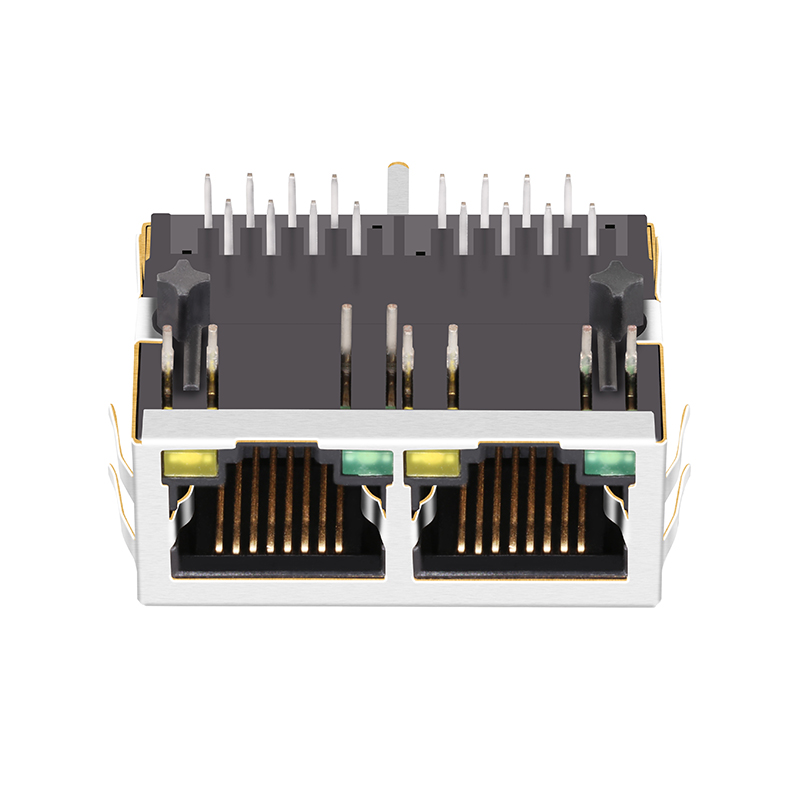

J8064D628ANL J8064D628A Tab Down 10/100 Base-t 1x2 Ports Magnetic RJ45 Jack With Leds
J8064D628ANL J8064D628A Tab Down 10/100 Base-t 1x2 Ports Magnetic RJ45 Jack With Leds
J8064D628ANL J8064D628A Tab Down 10/100 Base-t 1x2 Ports Magnetic RJ45 Jack With Leds
J8064D628ANL J8064D628A Tab Down 10/100 Base-t 1x2 Ports Magnetic RJ45 Jack With Leds
J8064D628ANL J8064D628A Tab Down 10/100 Base-t 1x2 Ports Magnetic RJ45 Jack With Leds
1 / 5
J8064D628ANL J8064D628A Tab Down 10/100 Base-t 1x2 Ports Magnetic RJ45 Jack With Leds
J8064D628ANL J8064D628A Tab Down 10/100 Base-t 1x2 Ports Magnetic RJ45 Jack With Leds
J8064D628ANL J8064D628A Tab Down 10/100 Base-t 1x2 Ports Magnetic RJ45 Jack With Leds
J8064D628ANL J8064D628A Tab Down 10/100 Base-t 1x2 Ports Magnetic RJ45 Jack With Leds
J8064D628ANL J8064D628A Tab Down 10/100 Base-t 1x2 Ports Magnetic RJ45 Jack With Leds

J8064D628ANL J8064D628A Tab Down 10/100 Base-t 1x2 Ports Magnetic RJ45 Jack With Leds

Send Inquiry

Product Description

Product Categories
J8064D628ANL J8064D628A Tab Down 10/100 Base-t 1x2 Ports Magnetic RJ45 Jack With Leds
Products Description
Item RJ45 Female Connector
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x2 Port
Speed 10/100 Base-T
Latch Down
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Detail
☝ Products Link To Get More ☝
Product Categories Grid
Technical Drawing
Product Angle View 1
Product Angle View 2
Product Angle View 3
Production Detail 1
Production Detail 2
Production Detail 3
Manufacturing Line 1
Manufacturing Line 2
Quality Control Testing
FAQ
1 Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2 Can I get a sample before mass production?
Yes, we can offer you a free sample to test quality, but you should pay the shipping fee.
3 What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
4 What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
5 Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion.
6 What is your advantage?
19 years of production experience and we are a partner to major industry leaders for many years.
