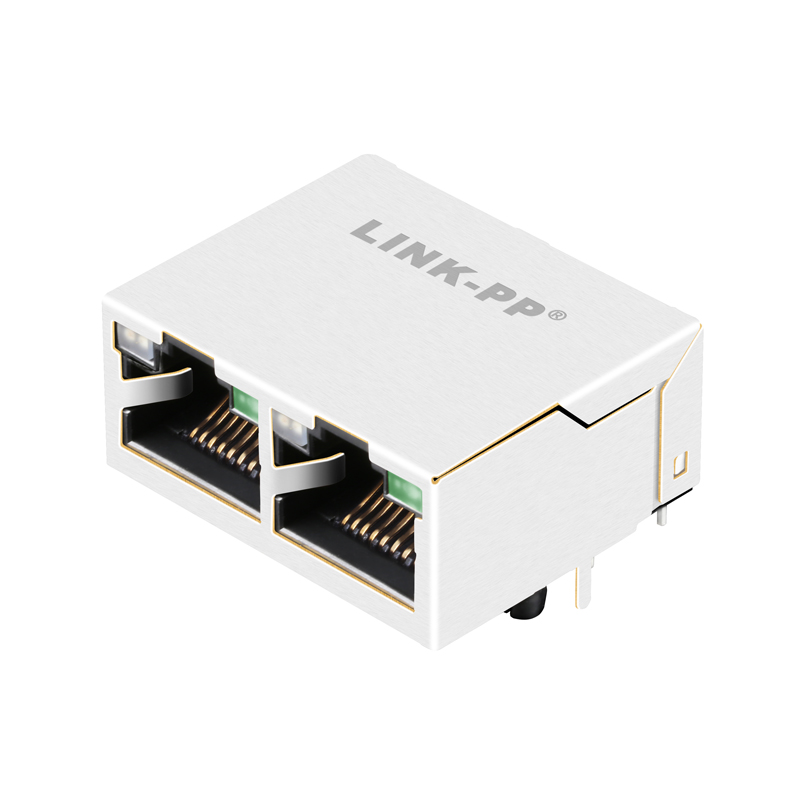

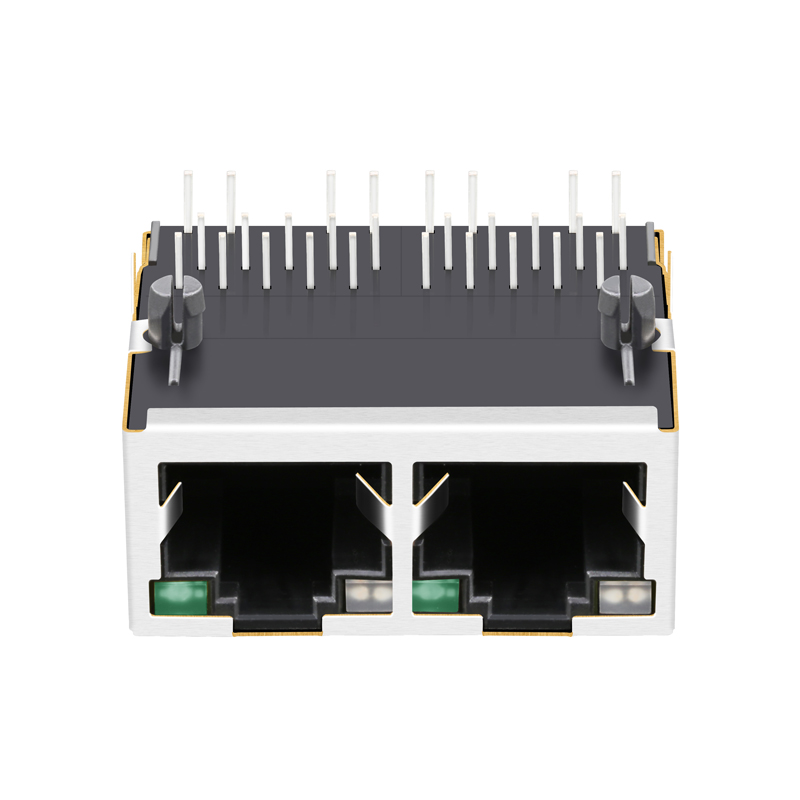

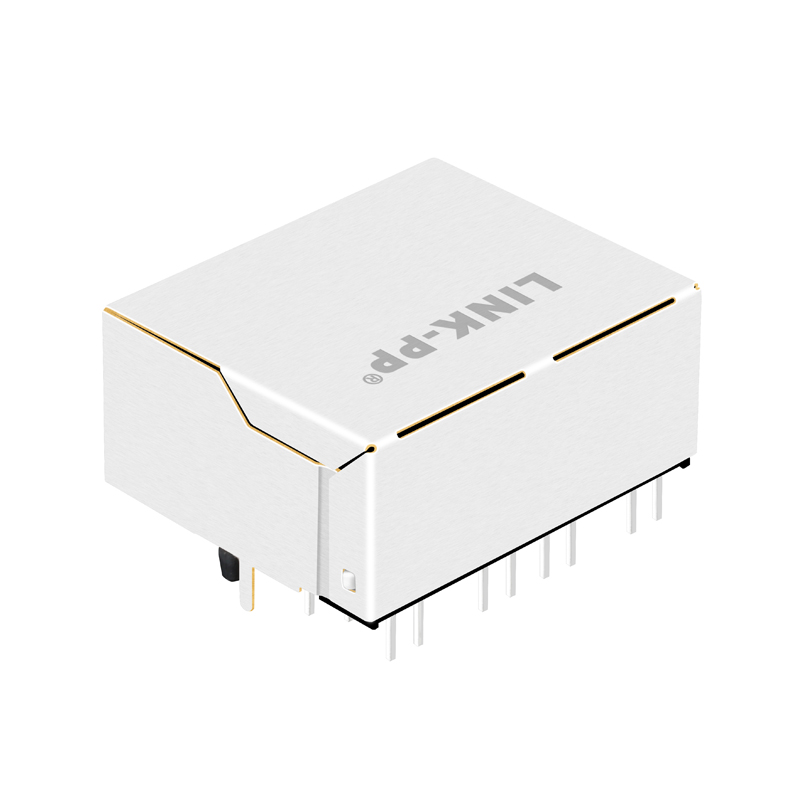

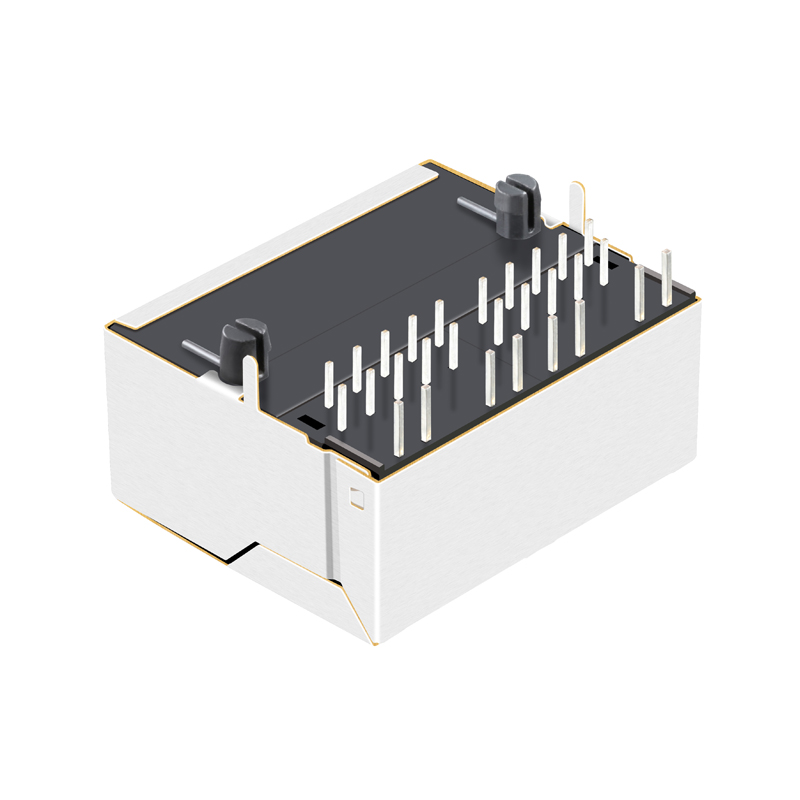

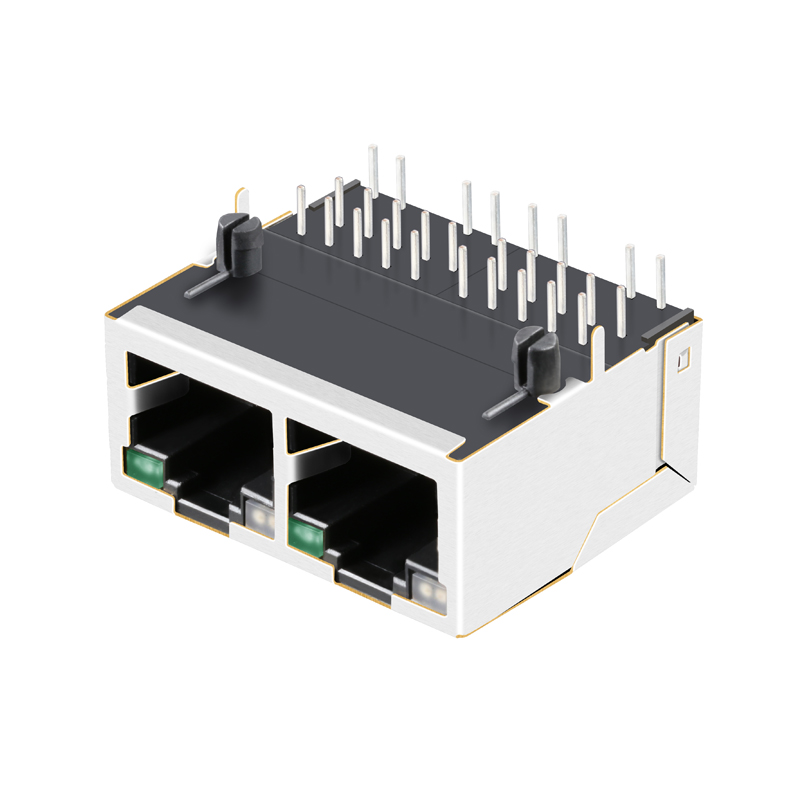

| Item | RJ45 Female Connector |
| Part Number | LPJ26204AENL |
| Compatible With | HR911205C |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet (Non-PoE) |
| Number of Ports | 1x2 Port |
| Speed | 10/100/1000 Base-T |
| Latch | Down/Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without/With |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0℃ TO 70℃ / -40℃ TO 85℃ |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, we can offer you free samples to test the quality, but shipping costs will need to be covered.
We have items ready to ship for in-stock orders, and 15-30 days for new mass production orders.
We provide a one-year warranty period and offer online technical support 24 hours a day.
Yes, please send your requirements to us so we can proceed with a detailed discussion.
We have 19 years of production manufacturing experience and have been a trusted partner to global market leaders for many years.
