Home > Multi Port RJ45 Connector > LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector

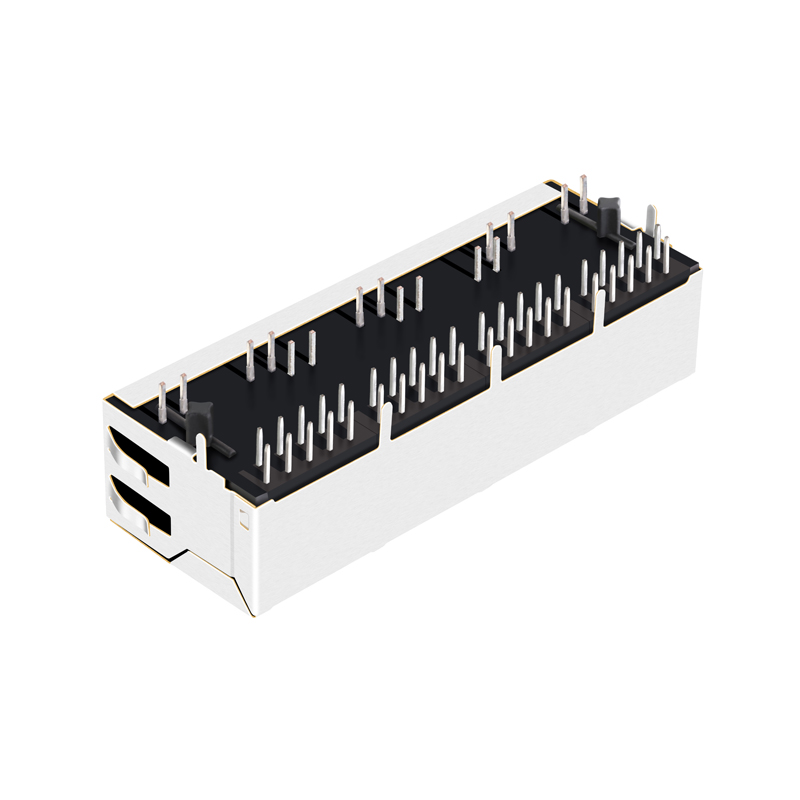

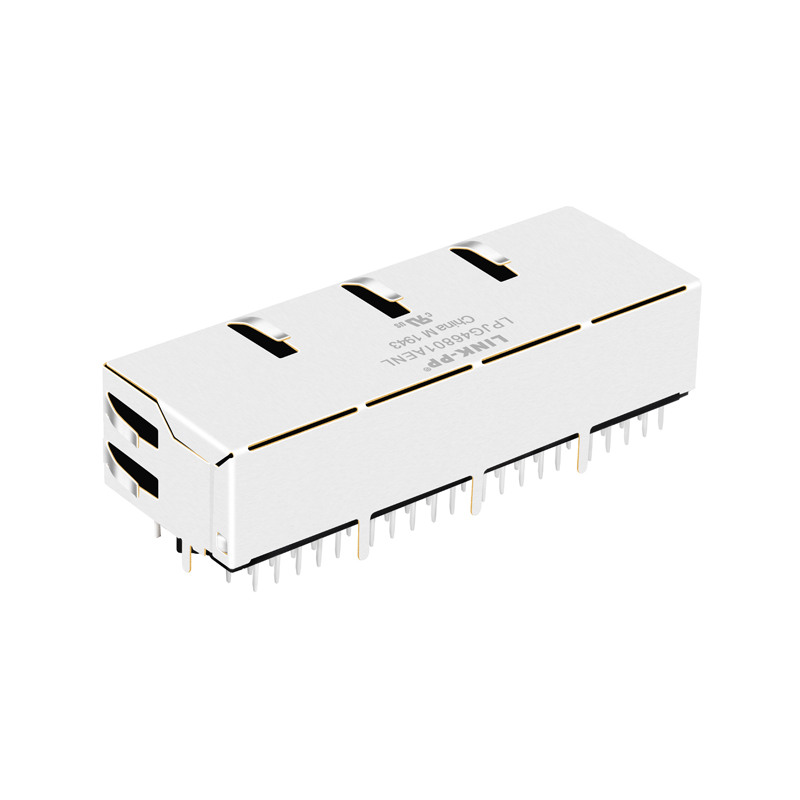

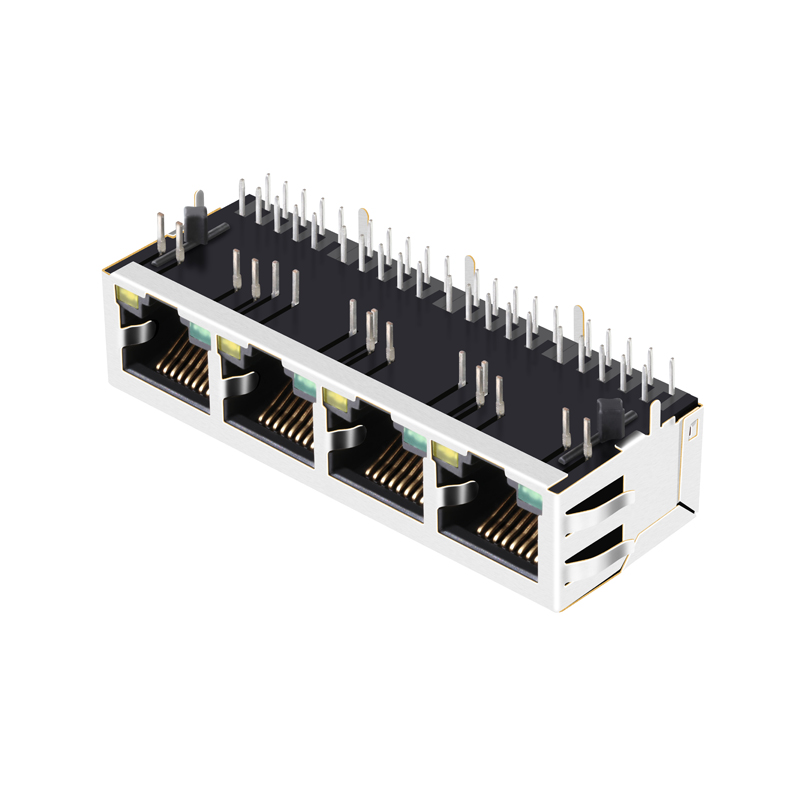

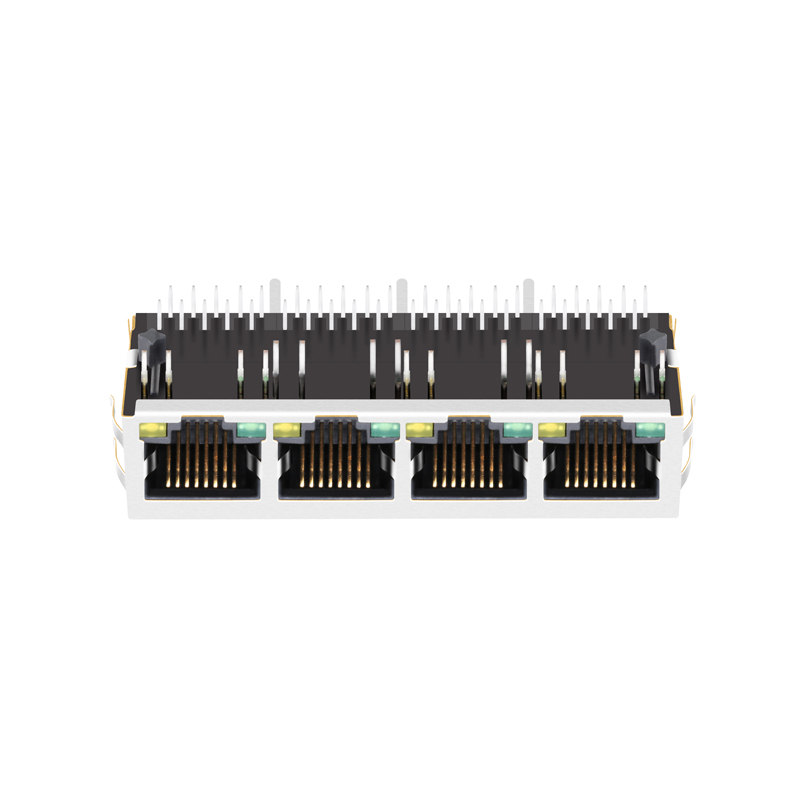

LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
1 / 5
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector

LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector

Send Inquiry

Product Description

Product Description

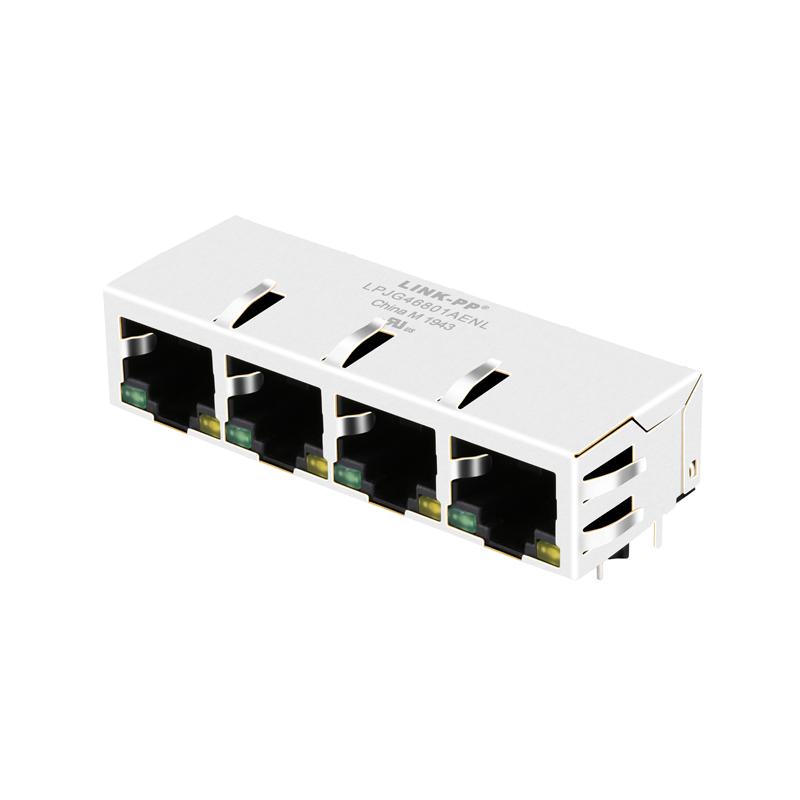

Product Description Image 1
Product Description Image 2
Specification
Item Value
Model Number LPJG46801AENL
Part Status Active
Connector Type RJ45
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green - Yellow
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Number of Ports 1X4 Port
Features Board Guide
Tab Direction Down
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C
Packing & Delivery
Package Configuration: 20 pcs in 1 tray, 20 trays in 1 carton, which measures 37*30*30cm, with a total weight of 10 KGS (400pcs) per carton.
Packaging Detail
Technical Details & Applications

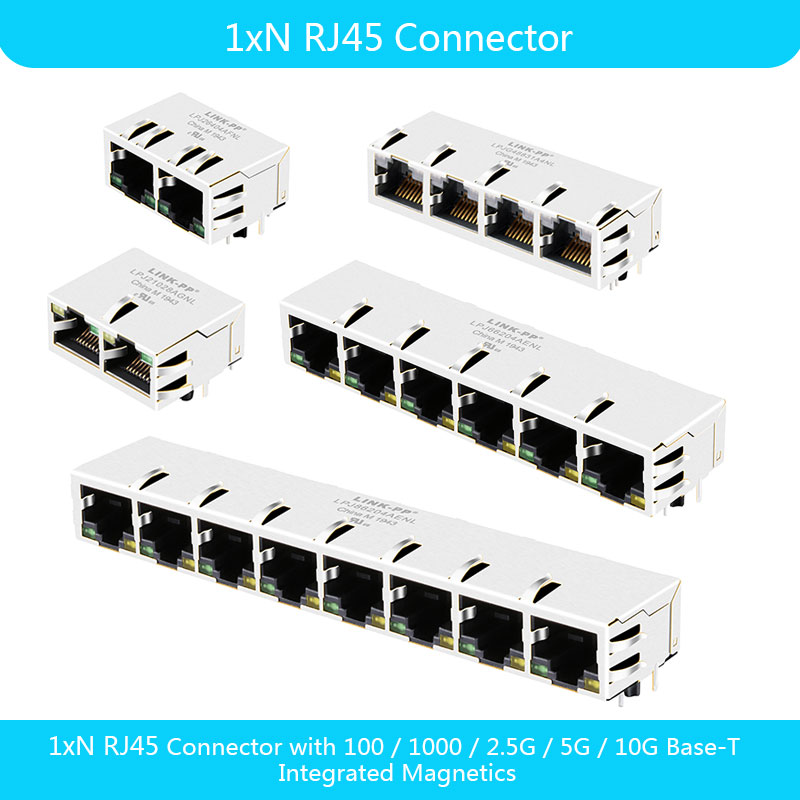

100 / 1000 / 2.5G / 5G / 10G Base-T 1xN RJ45 Connector
  • Suitable for industrial operating temperatures from –40 °C up to +85 °C
  • Compatible with Industrial Ethernet systems like EtherCAT or Profinet
  • Compliant with most mainstream ICs for Ethernet applications such as Microchip, Broadcom, and Marvell
  • Highly applicable for Hubs, Routers, Switches, IP cameras, and IoT device installations
RJ45 Technical Image
Product Angle Image
Technical Drawing Image
Internal Schematic Diagram
Additional Spec Drawing
Detailed Technical Specifications Sheet
Frequently Asked Questions
What types of components can I purchase?
You can purchase a wide range of products including RJ45 Magnetic connectors, LAN transformers, Modular Jacks, and RJ11 Connectors.
How is the product quality guaranteed?
Quality is strictly managed. We always provide a pre-production sample before starting mass production, and we perform a final inspection on all units before shipment.
What are the applications for these connectors?
Our connectors are compatible with Industrial Ethernet systems like EtherCAT or Profinet and compliant with most ICs (e.g. Microchip, Broadcom, Marvell). They are suitable for industrial temperatures from -40 °C to +85 °C and widely used in Hubs, Routers, Switches, IP cameras, and IoT devices.
What packaging options and sizing are standard?
The standard packaging includes 20 pcs per tray, and 20 trays per carton. Each carton has dimensions of 37*30*30 cm and weighs approximately 10 KGS.
What delivery terms and payment currencies do you accept?
We accept various delivery terms including FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, and DES. The accepted payment currencies include USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, and CHF.
What payment methods and languages are supported?
Accepted payment types include T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, and Escrow. Supported languages include English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, and Italian.
