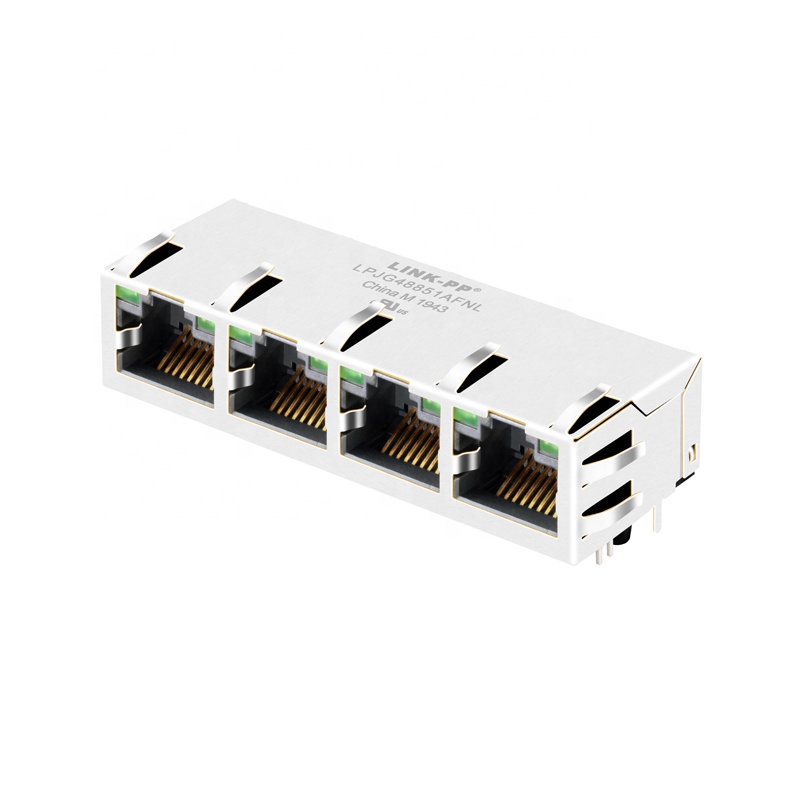

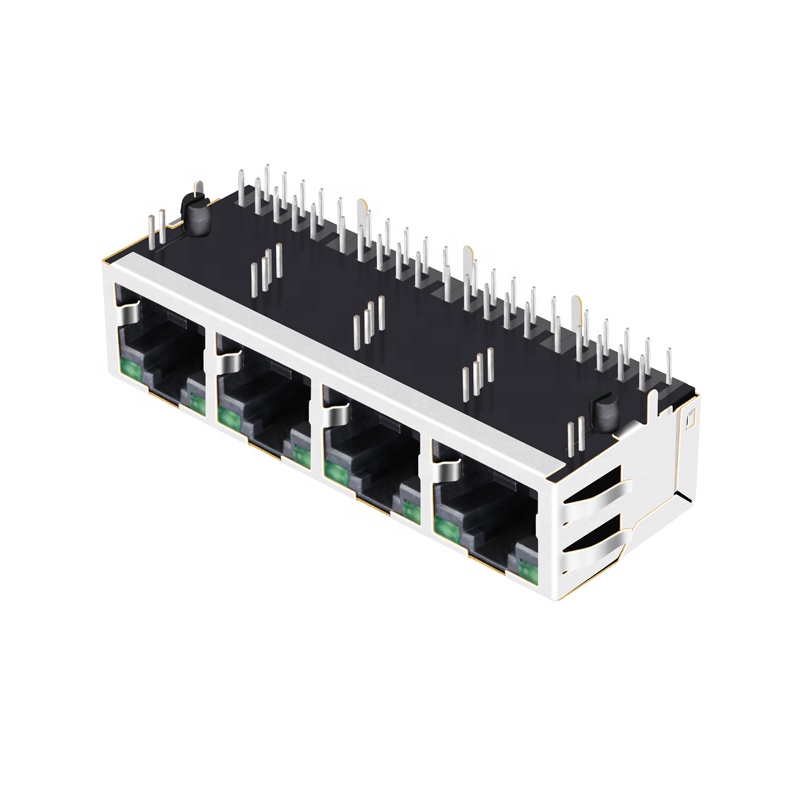

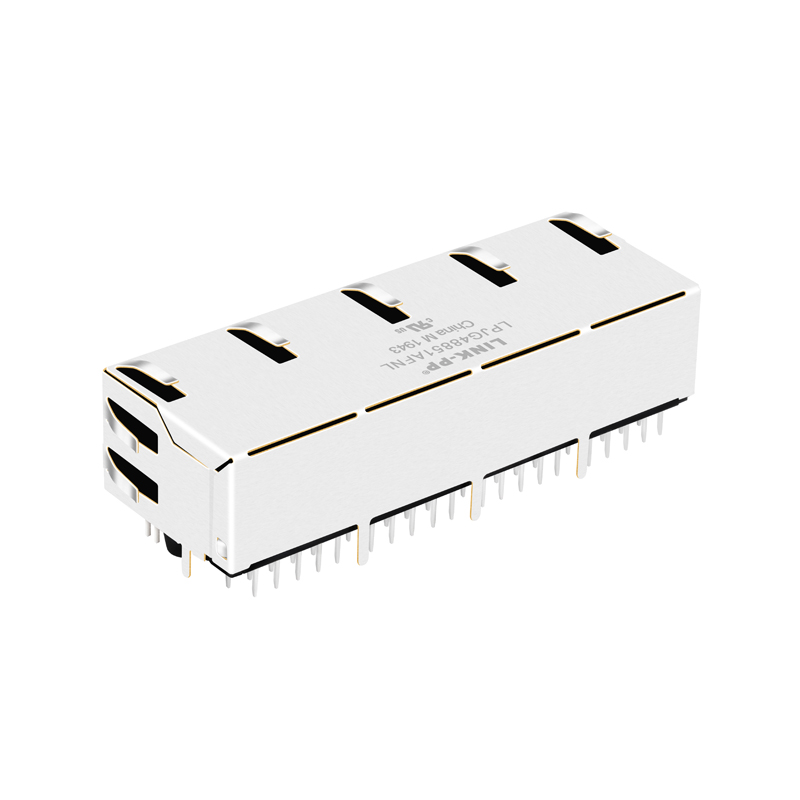

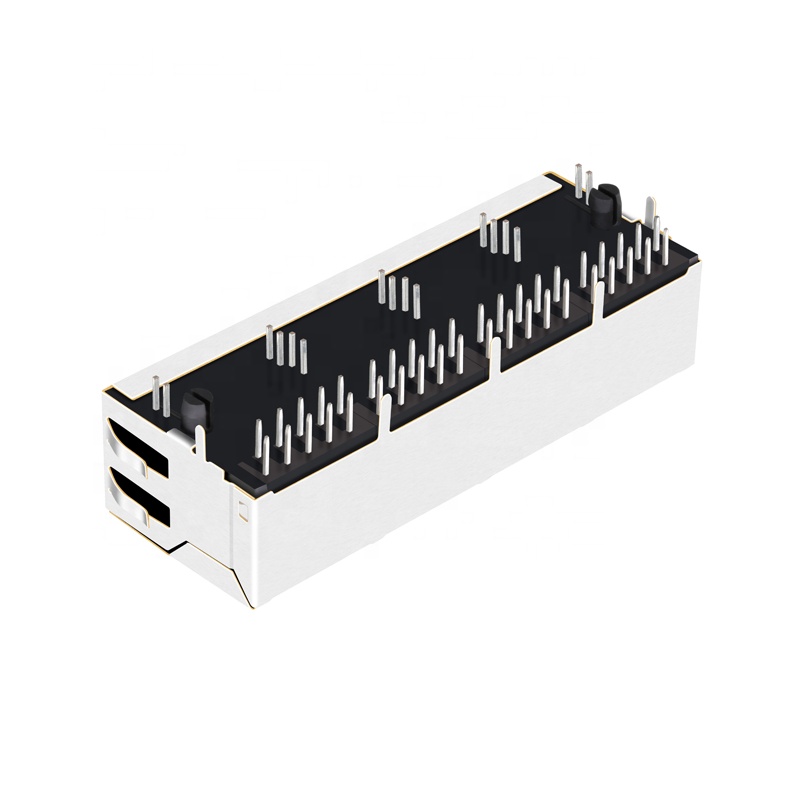

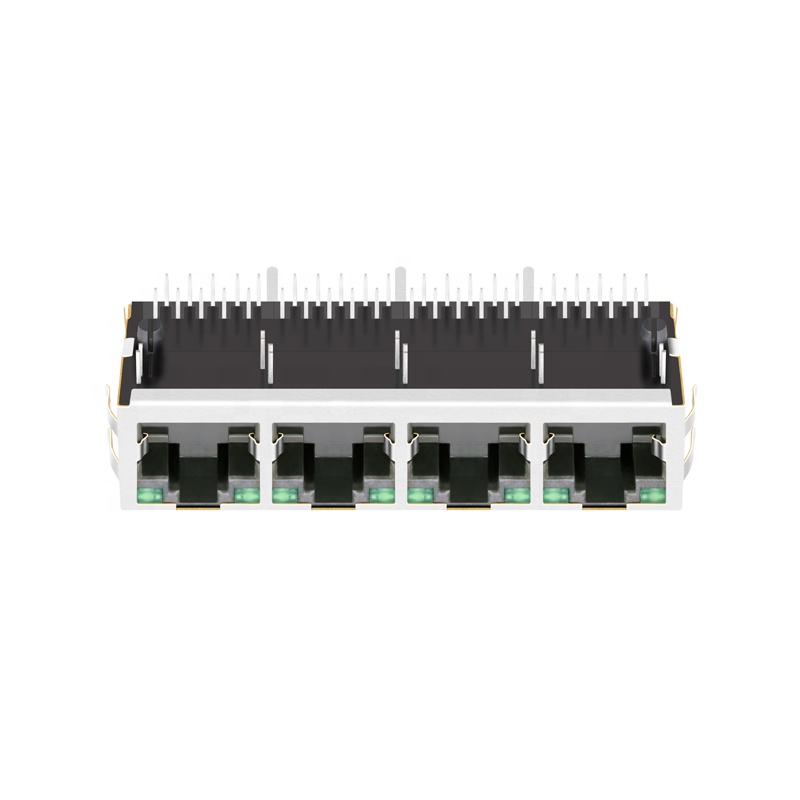

1x4 Port 1000 Base-T Shielded With LEDs Jack RJ 45 Connector LPJG48851AFNL
| Item |
RJ45 Female Connector |
| Part Status |
Active |
| Connector Type |
Jack |
| Number of Positions/Contacts |
8p8c (RJ45, Ethernet) |
| Application-Lan |
Ethernet(NoN PoE) |
| Number of Ports |
1x4 Port |
| Speed |
1000 Base-T |
| Latch |
Up |
| Cores per Port |
4 |
| Orientation |
90° Angle (Right) |
| PCB Mount Angle |
SIDE ENTRY |
| Shield EMI Tabs |
With |
| LED Option |
Green/Yellow |
| PCB |
FR4 |
| PCB Retaining Post |
T POST |
| Temperature |
0°C TO 70°C / -40°C TO 85°C |
| Bst Circuit |
Yes |
| AutomDX |
YES |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX |
1CT:1CT |
| Configuration RX/TX |
T,C |
☞ Click Below Products Link To Get More ☞
Established in 1997, the manufacturer is a professional designer and developer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
Serving as a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers in over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, there is a commitment to leading the global market for Ethernet RJ45 connectors and LAN transformers.
1
Are you factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2
Can I get a sample before mass production?
Yes, we can offer you free sample to test quality, but you should pay the shipping fee.
3
What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
4
What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
5
Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
6
What is your advantage?
19 years of production experience and long-term partnership with global technology brands for many years.
