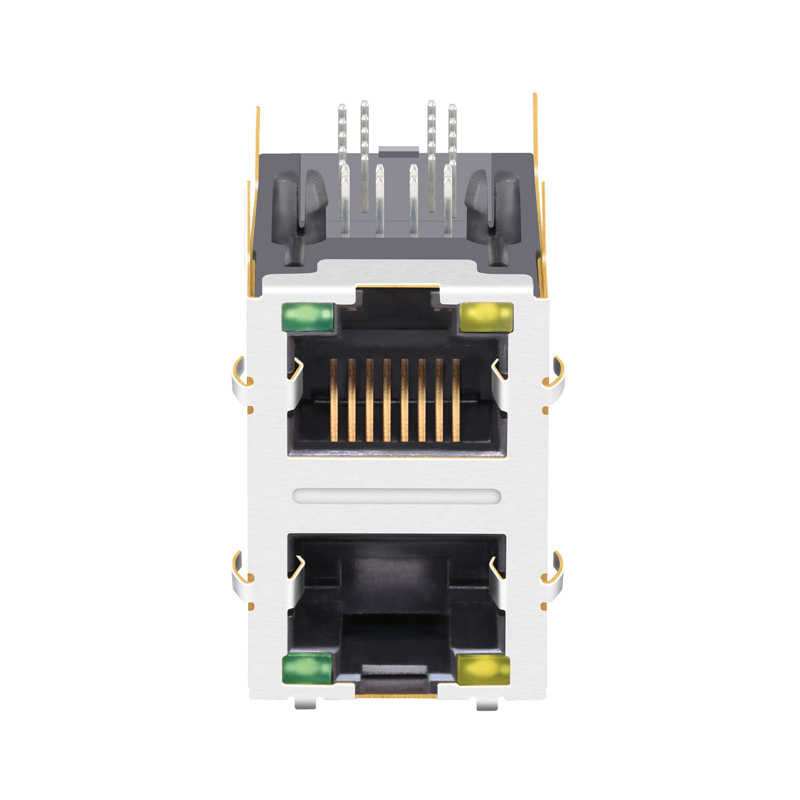

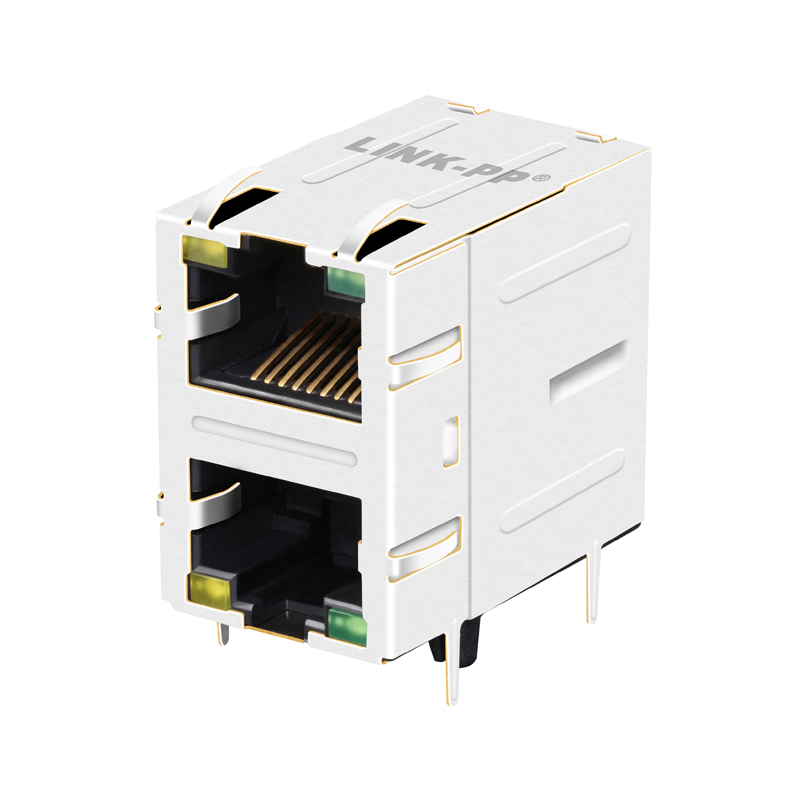

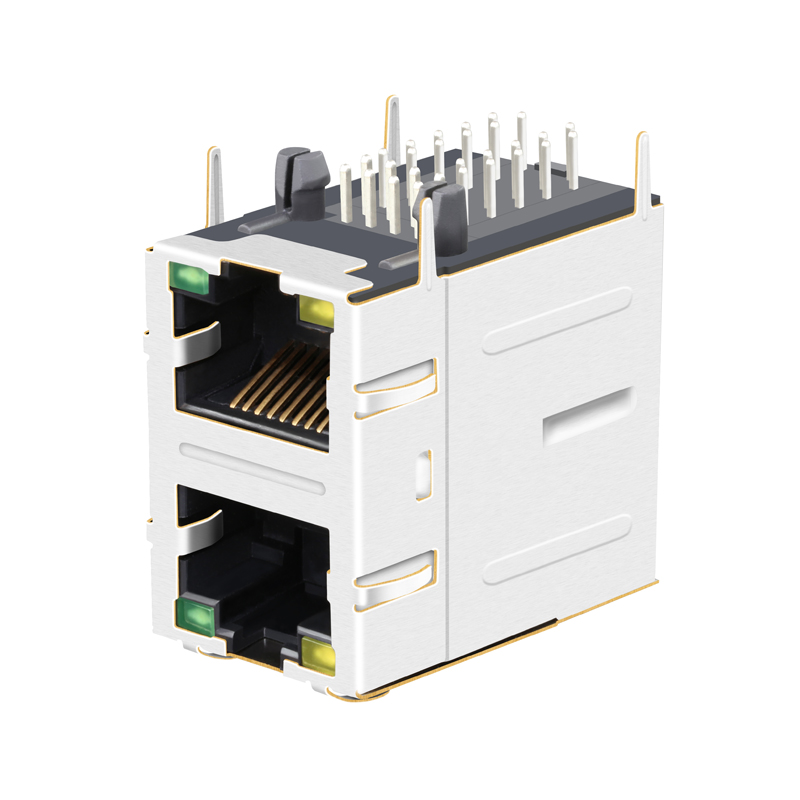

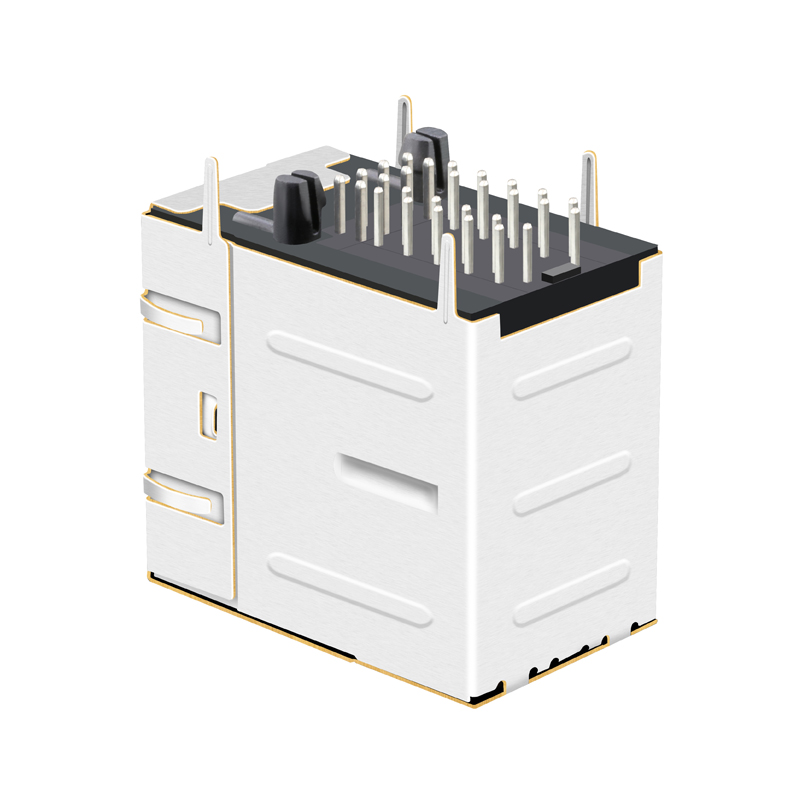

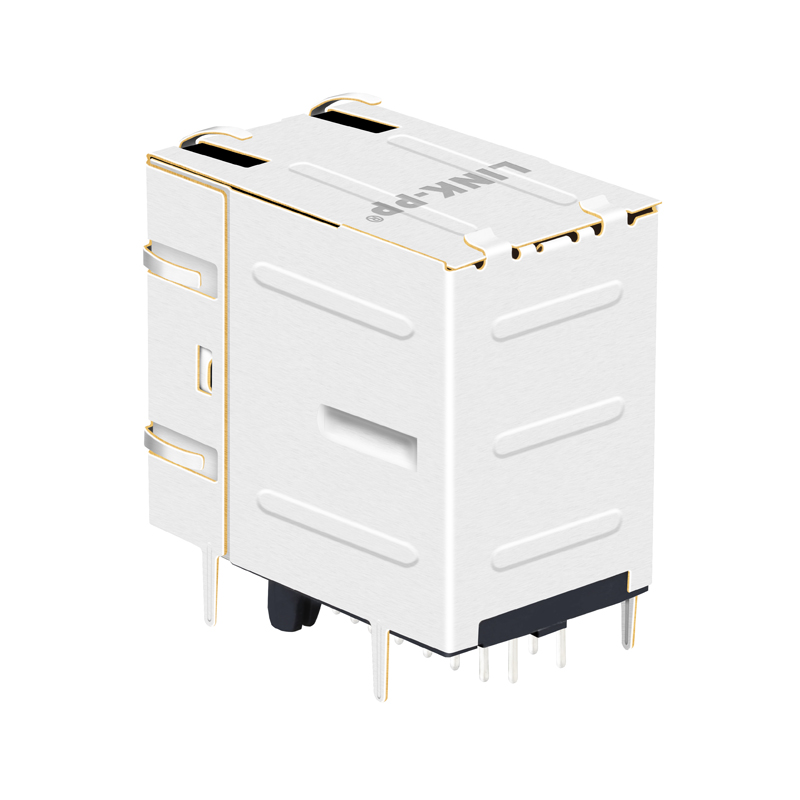

Y/G LEDs 1000 Base-T 2x1 Port RJ45 Stacked Connector RJ 45 Modular Jack LPJG17561BGNL
Y/G LEDs 1000 Base-T 2x1 Port RJ45 Stacked Connector RJ 45 Modular Jack LPJG17561BGNL
Y/G LEDs 1000 Base-T 2x1 Port RJ45 Stacked Connector RJ 45 Modular Jack LPJG17561BGNL
Y/G LEDs 1000 Base-T 2x1 Port RJ45 Stacked Connector RJ 45 Modular Jack LPJG17561BGNL
Y/G LEDs 1000 Base-T 2x1 Port RJ45 Stacked Connector RJ 45 Modular Jack LPJG17561BGNL
1 / 5
Y/G LEDs 1000 Base-T 2x1 Port RJ45 Stacked Connector RJ 45 Modular Jack LPJG17561BGNL
Y/G LEDs 1000 Base-T 2x1 Port RJ45 Stacked Connector RJ 45 Modular Jack LPJG17561BGNL
Y/G LEDs 1000 Base-T 2x1 Port RJ45 Stacked Connector RJ 45 Modular Jack LPJG17561BGNL
Y/G LEDs 1000 Base-T 2x1 Port RJ45 Stacked Connector RJ 45 Modular Jack LPJG17561BGNL
Y/G LEDs 1000 Base-T 2x1 Port RJ45 Stacked Connector RJ 45 Modular Jack LPJG17561BGNL

Y/G LEDs 1000 Base-T 2x1 Port RJ45 Stacked Connector RJ 45 Modular Jack LPJG17561BGNL

Send Inquiry

Product Description

Y/G LEDs 1000 Base-T 2x1 Port RJ45 Stacked Connector RJ 45 Modular Jack LPJG17561BGNL
RJ45 Stacked Connector Overview
Products Description
Item RJ45 Female Connector
Part Number LPJG17561BGNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 2x1 Port
Speed 1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C / -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
RJ45 Stacked Connector Mechanical Drawing
💡 Check Below Products For More Options
Product Categories Overview
Ethernet Jack Specification Sheet 1 Ethernet Jack Specification Sheet 2 Ethernet Jack Mechanical Diagram Ethernet Jack Production Flow Ethernet Jack Packaging Standard Ethernet Jack Testing Standard
FAQ
Are you factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should cover the shipping cost.
What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production.
What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
Can you accept OEM/ODM order?
Yes, please send an inquiry to us so that we can have a detailed discussion.
What is your advantage?
19 years of production experience and partnership with industry leaders for many years.
