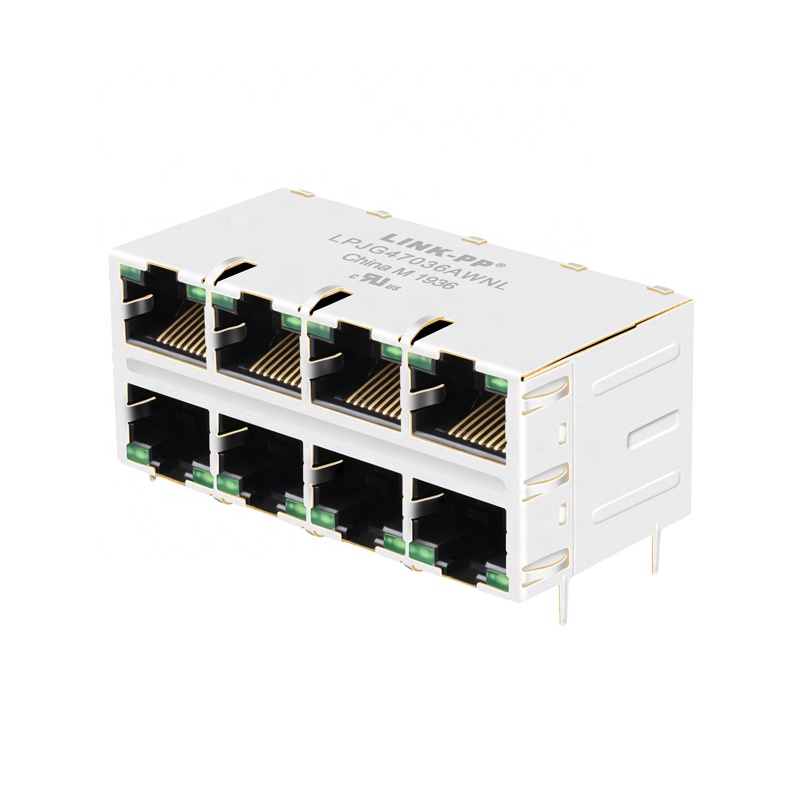

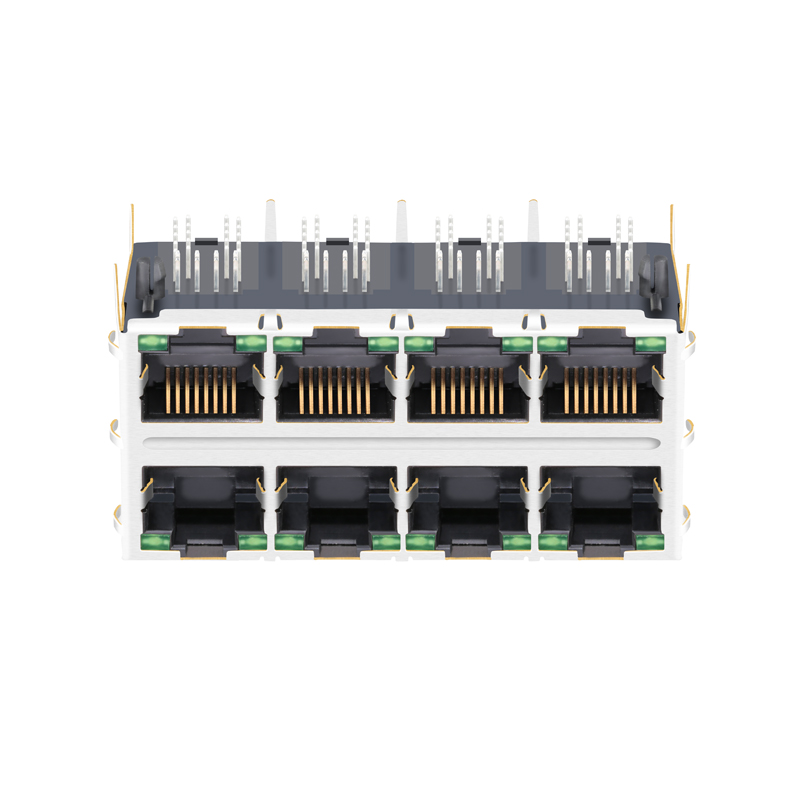

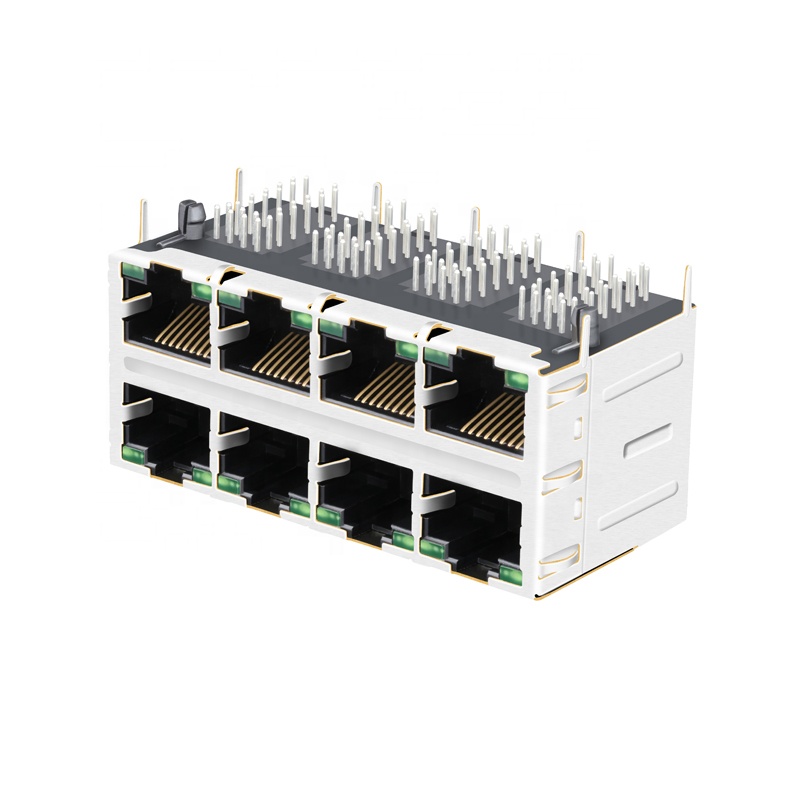

2x4 Port For PoE Cat5e 2.5G Jack RJ45 Female Connector
Part Number
LPJG47036AWNL
Application-LAN
ETHERNET(POE)
AutomDX
YES
Bst Circuit
YES
Configuration RX
T,C
Configuration TX
T,C
Contact Mating Area Plating
GOLD 6u"/15u"/30u"/50u"
Cores Per Port
8
Diodes
NO DIODES
LED Option
GREEN/GREEN
Latch
UP/DOWN
Number of Ports
2X4
PCB
FR4
PCB Mount Angle
SIDE ENTRY
PCB Retaining Post
T POST
Pin Type
THT SOLDER
RoHS Compliant
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search
YES
Shield EMI Tabs
WITH
Shielding
Shielded
Speed
2.5G BASE-T
Temperature
-20~+70℃
Turns Ratio RX
1CT:1
Turns Ratio TX
1CT:1
Preferred Supplier Of TI Samsung Cisco Siemens ...
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
ISO 9001:2008
UL Certification
Reach Certification
RoHS Compliance
Active Environmental Policy
100% Guarantee Quality
Manufactured Under Strict Controls
100% Tested (Not Just Batch Tested)
OEM Of TE (Tyco) For 9 Years
Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
Preferred Supplier Of TI (Texas Instruments)
Quality Guarantee: 6 Years
Competitive Price And Service
More Competitive Price Than Pulse Tyco Halo Wurth And Amphenol
Delivery Time: 2-3 Weeks After Orders
Free Samples Are Available
Provide New Design For Customer Requirements
90% Off Shipping Cost By DHL UPS FEDEX Or TNT
2x4 Port For PoE Cat5e 2.5G Jack RJ45 Female Connector
Frequently Asked Questions (FAQ)
What is the transmission speed of this RJ45 connector?
This RJ45 female connector supports speeds up to 2.5G BASE-T, providing highly stable and rapid data transfer rates compatible with Cat5e cabling systems.
Does this connector support Power over Ethernet (PoE) functionality?
Yes, the application is designed for ETHERNET (PoE), making it suitable for transmitting both power and network data through a single cable configuration.
What are the options for contact mating area plating?
We offer standard gold plating options of 6u", 15u", 30u", and 50u" on the contact mating area to meet different requirement levels for signal integrity and longevity.
What is the operating temperature range for this RJ45 connector?
The connector is certified to operate reliably within a temperature range of -20°C to +70°C, ensuring stability in standard industrial and commercial environments.
Is this component compliant with environmental regulations?
Yes, this connector complies with RoHS standards (specifically RoHS-5 with lead in solder exemption) and holds Reach certification.

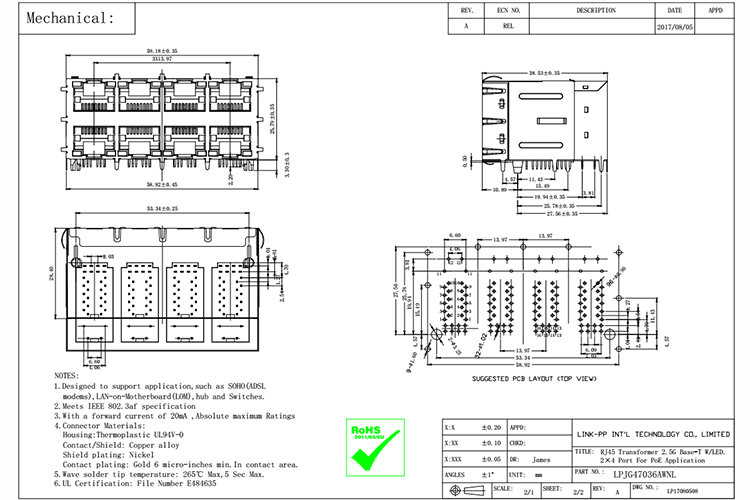

What is the physical mounting configuration of this product?
It features a 2x4 port structure, side entry PCB mounting angle, T Post PCB retaining method, and THT solder pin type.
