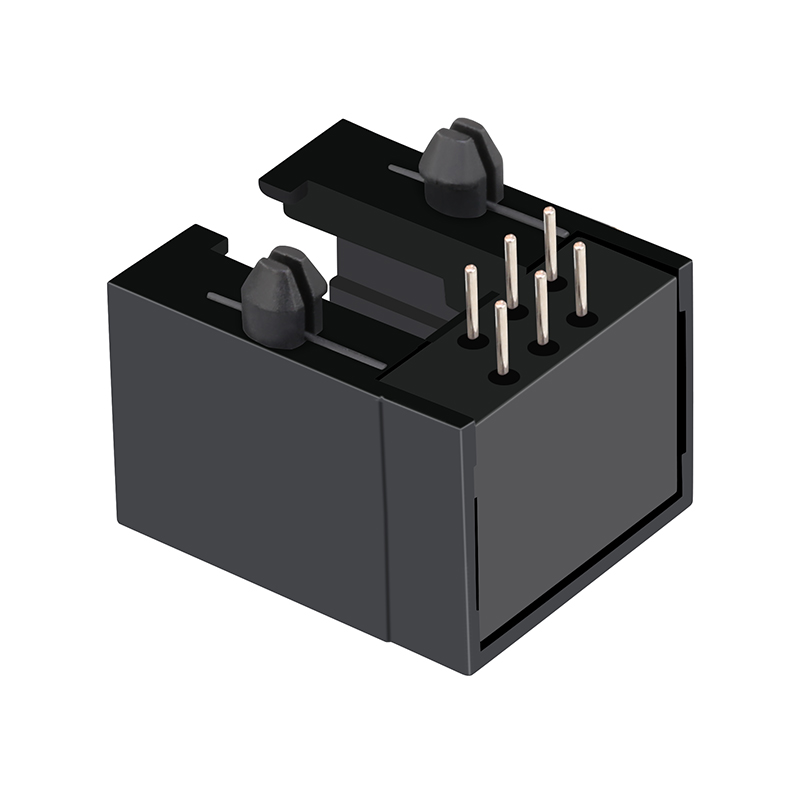

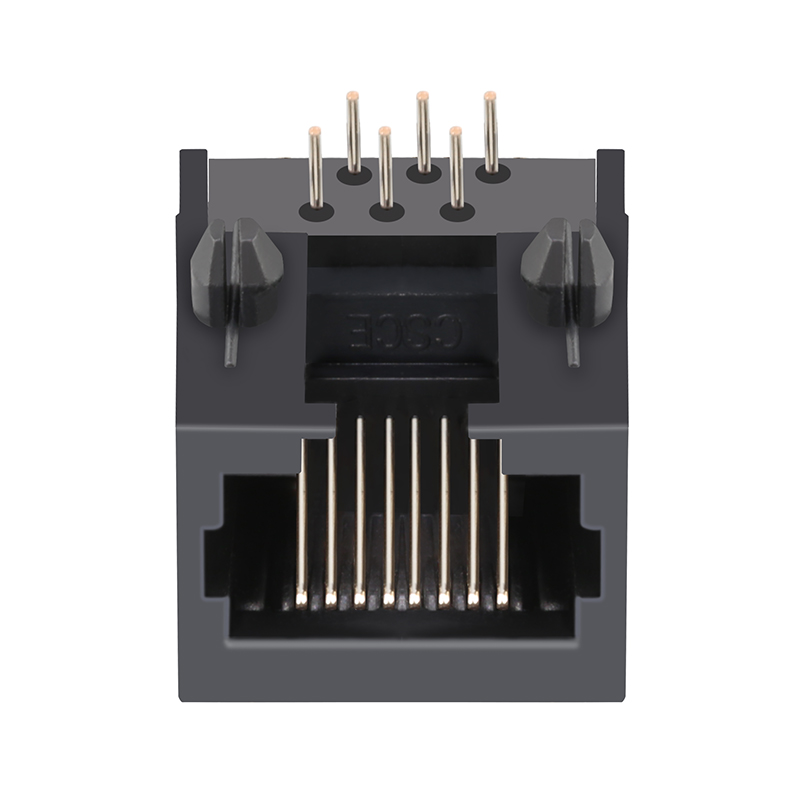

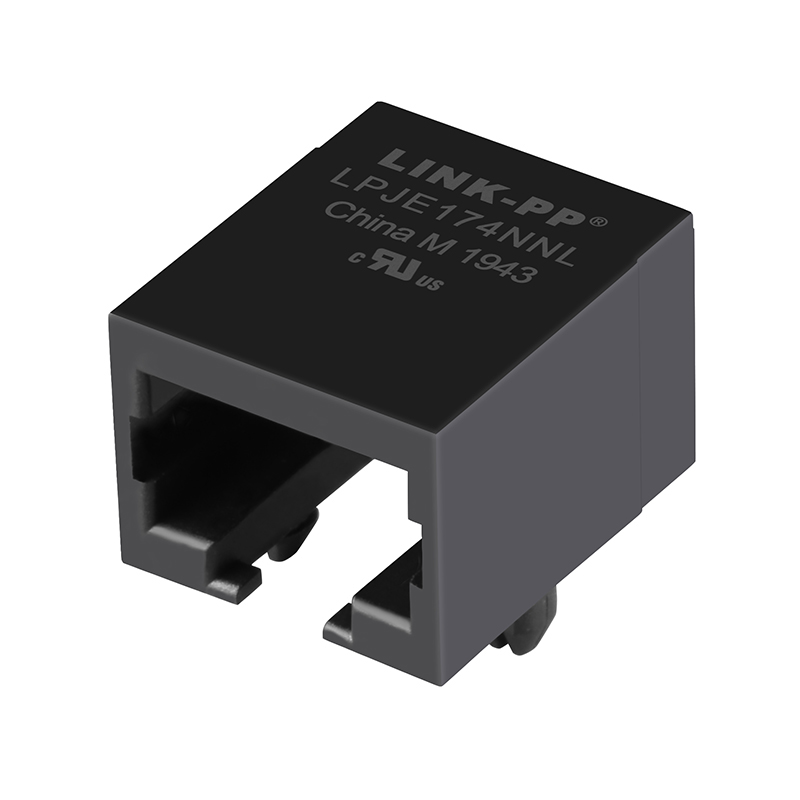

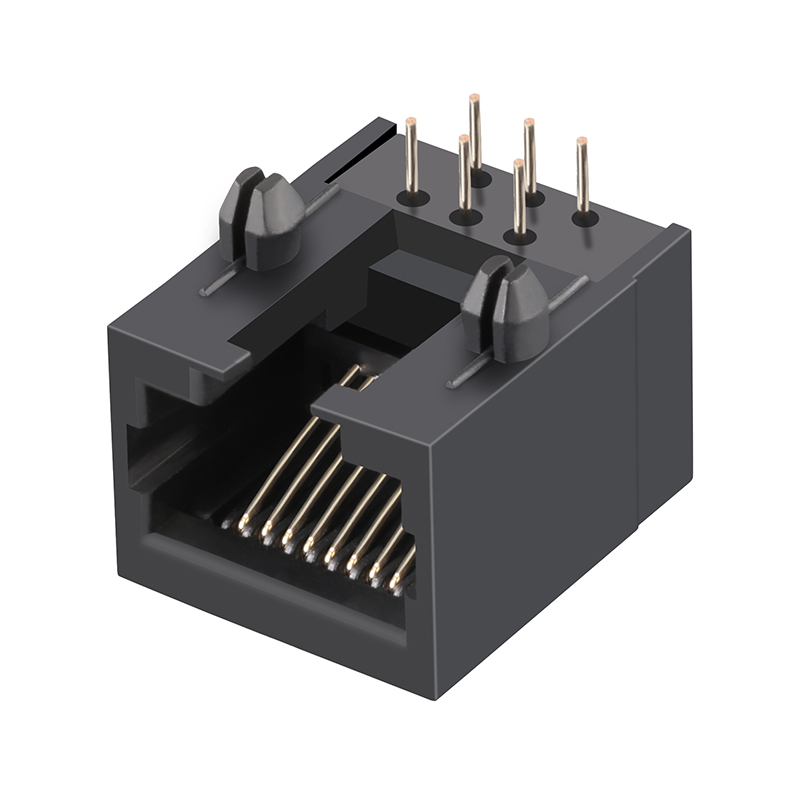

TS6P6C-PCB-U Unshielded Tab Down Without LEDs 1X1 Port RJ45 Modular Jack

Product Description

Product Categories Overview
TS6P6C-PCB-U Unshielded Tab Down Without LEDs 1X1 Port RJ45 Modular Jack
Products Description
Item RJ45 Female Connector
Part Number LPJE174NNL
Compatible With S11-ZZ-0159
Part Status Active
Connector Type Jack
Number of Positions/Contacts 6p6c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Down
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Without
PCB FR4
PCB Retaining Post T POST
Temperature -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Main Dimension Specifications
Product Left Side View Product Front View Product Perspective View
❖ Explore Our Products Series Below
RJ45 Connector Product Categories Grid
Product Blueprint Plan View
Product Blueprint Section View
Product Blueprint Side Section View
Product Layout Recommendation View
Product Structural Materials Info
Product Electrical Specifications Info
