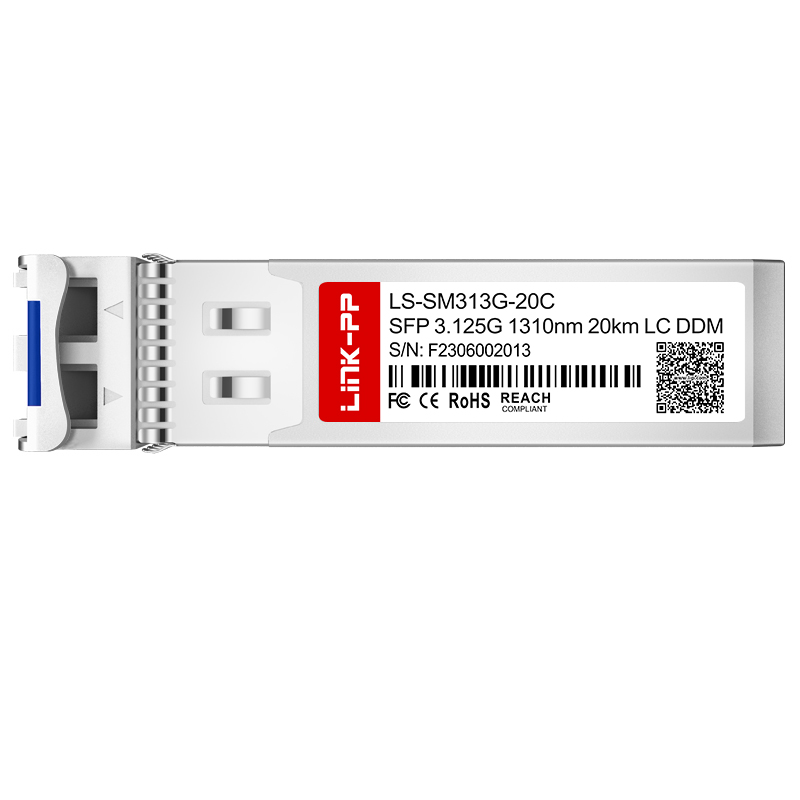

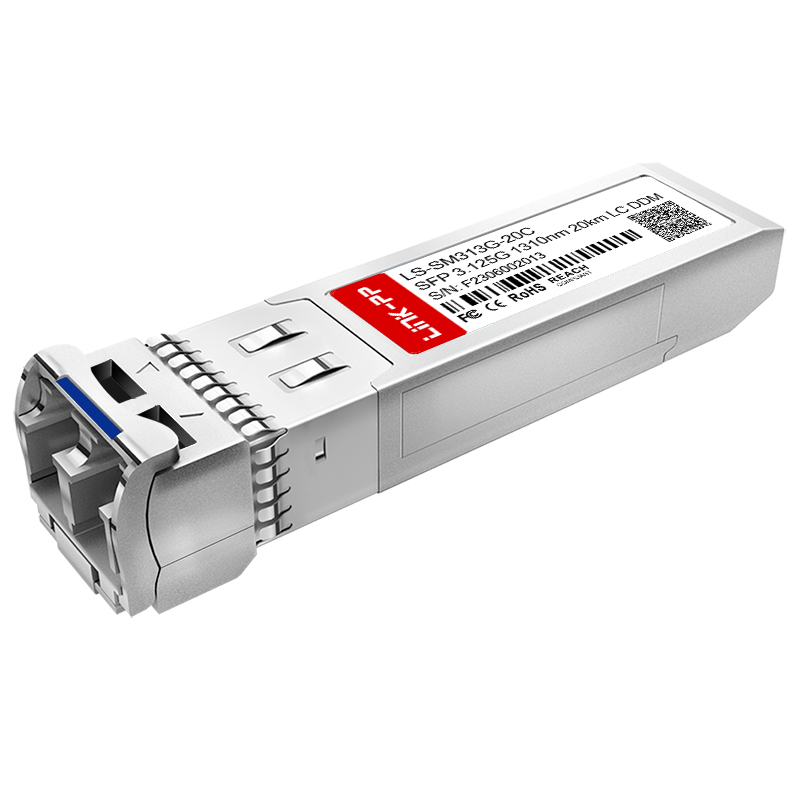

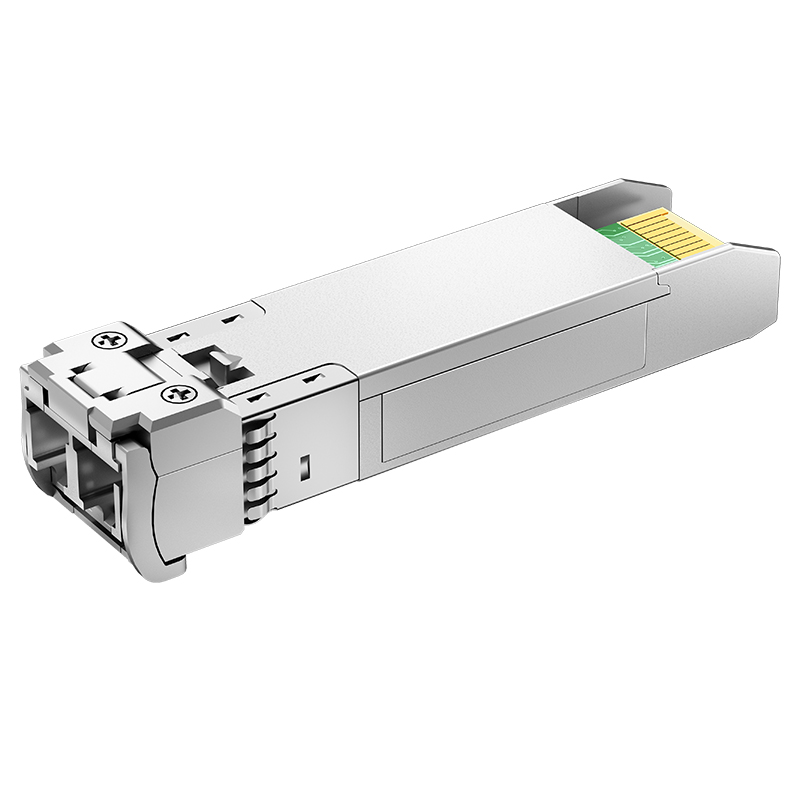

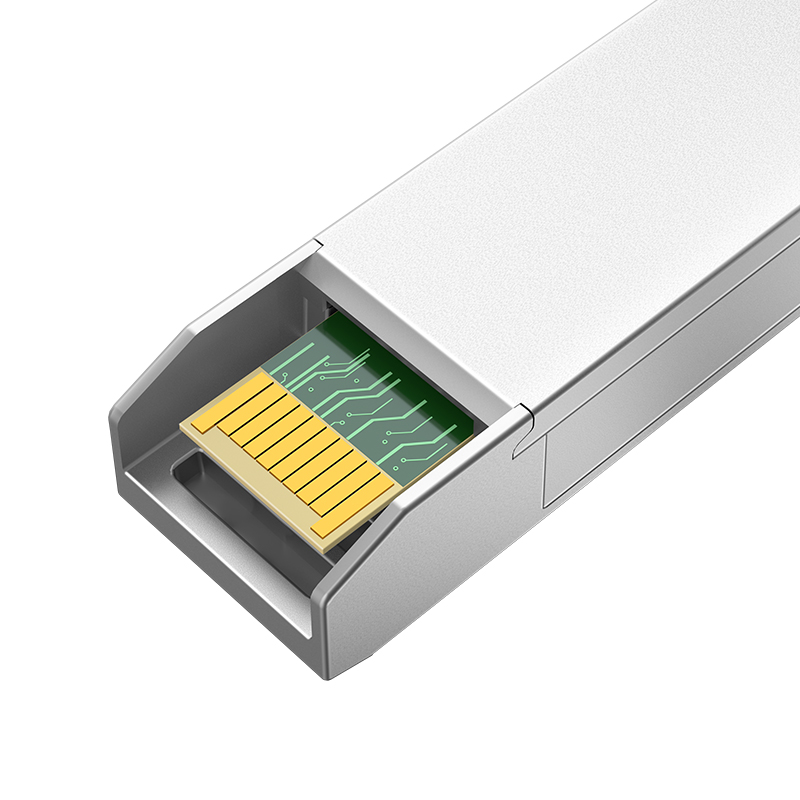

| Part Number | LS-SM313G-20C |
| Form Factor | SFP |
| Max Data Rate | 3.125Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 20km |
| Connector | Duplex LC |
| Media | SMF |
| Transmitter Type | DFB |
| Receiver Type | PIN |
| TX Power | -6 ~ 0dBm |
| Receiver Sensitivity | < -18dBm |
| Receiver Overload | -1dBm |
| EMC (Electro Magnetic Compatibility) | Supported |
| DDM/DOM | Supported |
| Protocols | MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Sample | Available |
| Part Number | Data Rate | Wavelength | Distance | Media | DDM |
|---|---|---|---|---|---|
| LS-MM852G-S3C | 2.5Gbps | 850nm | 300m | Multi-mode | Yes |
| LS-MM852G-S5C | 2.5Gbps | 850nm | 550m | Multi-mode | Yes |
| LS-SM312G-02C | 2.5Gbps | 1310nm | 2km | Single Mode | Yes |
| LS-SM312G-10C | 2.5Gbps | 1310nm | 10km | Single Mode | Yes |
| LS-SM312G-15C | 2.5Gbps | 1310nm | 15km | Single Mode | Yes |
| LS-SM312G-20C | 2.5Gbps | 1310nm | 20km | Single Mode | Yes |
| LS-SM552G-20C | 2.5Gbps | 1550nm | 20km | Single Mode | Yes |
| LS-SM312G-40C | 2.5Gbps | 1310nm | 40km | Single Mode | Yes |
| LS-SM552G-40C | 2.5Gbps | 1550nm | 40km | Single Mode | Yes |
| LS-SM552G-80C | 2.5Gbps | 1550nm | 80km | Single Mode | Yes |
We provide end-to-end DWDM systems with a wide selection of optical devices — ranging from active modules to optical passive components. This includes optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR devices.
To support massive data transmission demands in modern data centers, we have developed a line of high-speed optical modules with data rates spanning from 10G up to 800G. These solutions provide high-quality optical interconnections tailored for enterprise and cloud data centers.
We provide high-reliability, high-performance products built on mature and efficient lasers and mainstream chip solutions. Our wireless solutions cover Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul links, meeting the diverse demands of 4G/5G systems globally.
Designed for global communication network builders, we offer FTTx optical fiber access total solutions, including all-optical or combined optical-copper access products designed to support robust infrastructure deployments.
To maintain seamless operation of optical lines, we offer reliable optical cable operations & maintenance (O&M) solutions. These services integrate optical line protection systems (OLP) with optical line monitoring systems (OLM).
We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROHS, REACH, CE, and UL. Our facilities are equipped with advanced production and testing apparatus. Since our establishment in 1997, our workforce has grown to approximately 2,000 employees. Backed by a monthly production capacity of 3,000K, we ensure fast turnaround times. Additionally, we provide comprehensive optical modules for fixed access, wireless access, carrier Ethernet, WDM, and data center communications. Our product portfolio also covers high-speed optical interconnect solutions optimized for cloud computing and ultra-broadband networks. Using state-of-the-art optoelectronic technologies, we design, manufacture, and distribute our products to clients worldwide.
