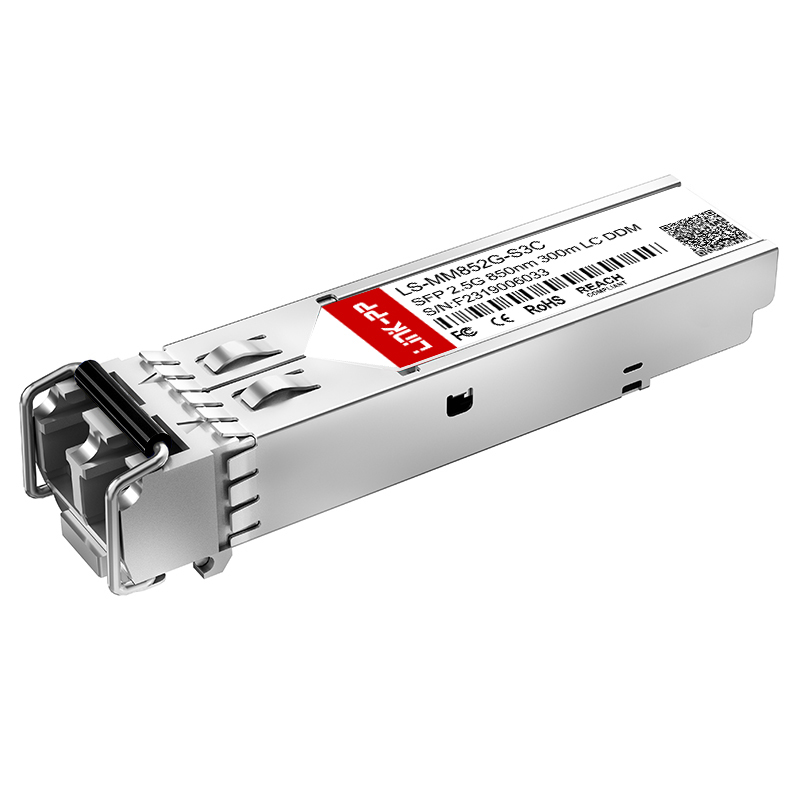

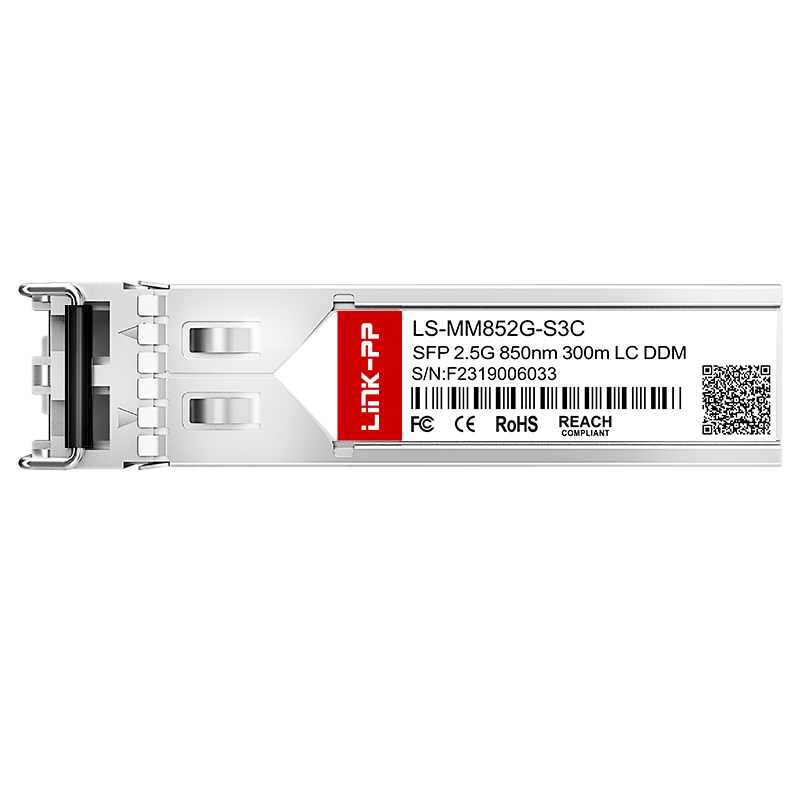

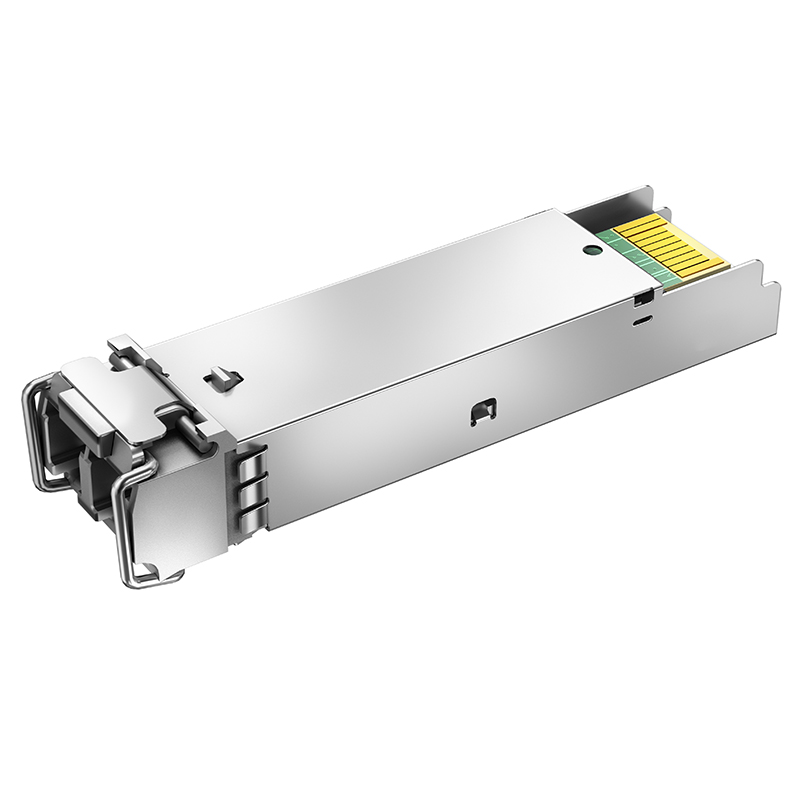

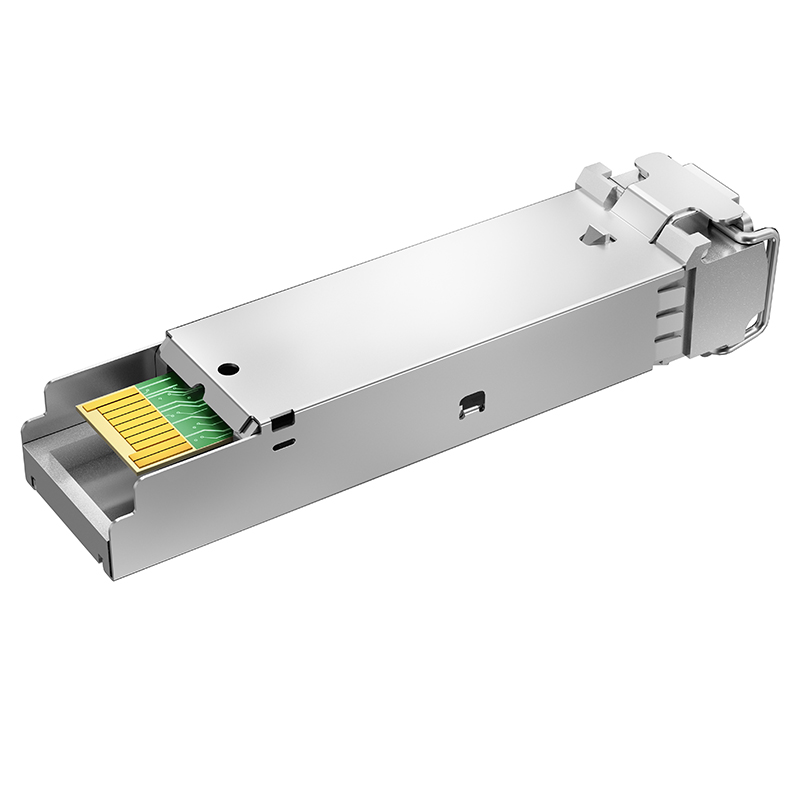

2.5GBASE-SX Multimode 850nm 2.5G SFP Module 300m Duplex LC MMF Optical Transceiver

Product Description

2.5GBASE-SX Multimode 850nm 2.5G SFP Module 300m Duplex LC MMF Optical Transceiver
SFP Module Overview
Products Description
Item 2.5G SFP
Part Status Active
Form Factor SFP
Max Data Rate 2.5Gbps
Wavelength 850nm
Max Cable Distance 300m
Media MMF

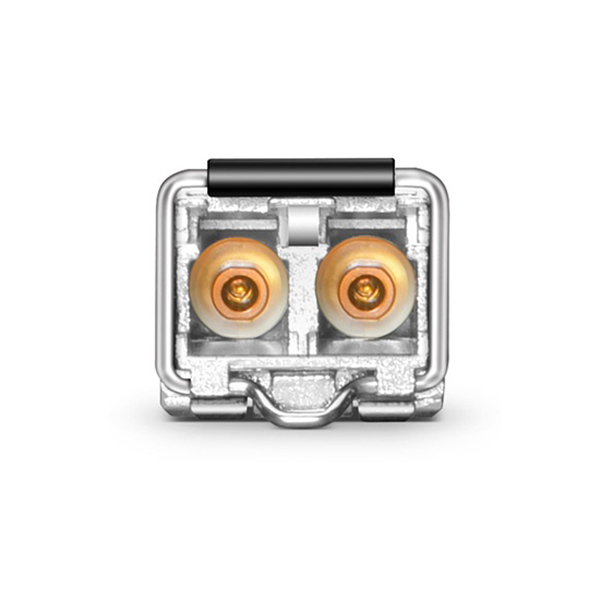

Connector Duplex LC
Optical Component VCSEL/PIN
TX Power -10~-3dBm
Receiver Sensitivity <-18dBm
Receiver Overload -3dBm
Power Consumption 1W
Extinction Ratio >8.2dB
DDM/DOM Supported
Commercial Temperature Range -10 to 70°C (-37 to 158°F)
Protocols SFP MSA(INF-8074i), GR-253-CORE, ITU-T G.957, FC-PI v2.0, SFF-8472 v9.5
Warranty 5 Years
Sample Available
SFP Module Specifications

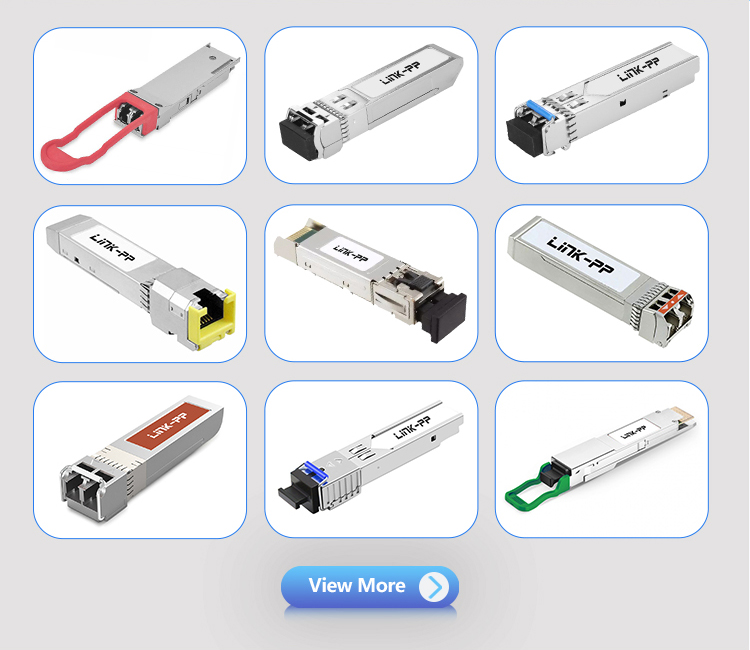

SFP Interface Details
SFP Production Detail 1 SFP Production Detail 2 SFP Production Detail 3 SFP Production Detail 4 SFP Production Detail 5
Product Compatibility
Related Products SFP Cage
Related SFP Cage Type 1 Related SFP Cage Type 2
Why Choose Us
Quality Control Process Advanced Machinery Testing Facility Production Assembly Certificates
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE and UL. We own advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With an abundant production capacity of 3000K per month, we are able to deliver the goods within a short timeframe. Moreover, we can provide professional, complete solutions for magnetic components as well as strong technical support.
Main Products
  • 10/100/1000M LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems. We have exported our products to more than 30 countries and regions worldwide, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan.
Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solutions for our customers' unique requirements. We trust that our strength in the field and our faith in pursuing higher standards will convince you to become our long-term partner.
Production Workshop R&D Department
FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you will need to cover the shipping fee.
3. What is your delivery time?
We are ready to ship for stock items and 15-30 days for mass production.
4. What after-service can you offer?
We offer a one-year warranty period and technical support online 24 hours a day.
5. Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so that we can have a detailed discussion.
6. What is your advantage?
We have 19 years of production experience and have partnered with major industry leaders for many years.
