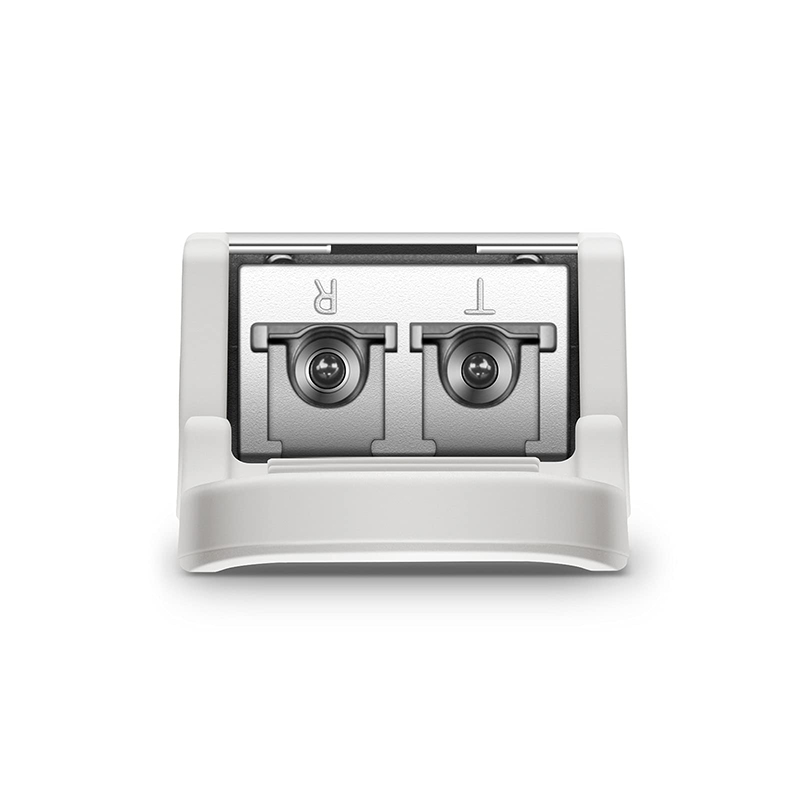

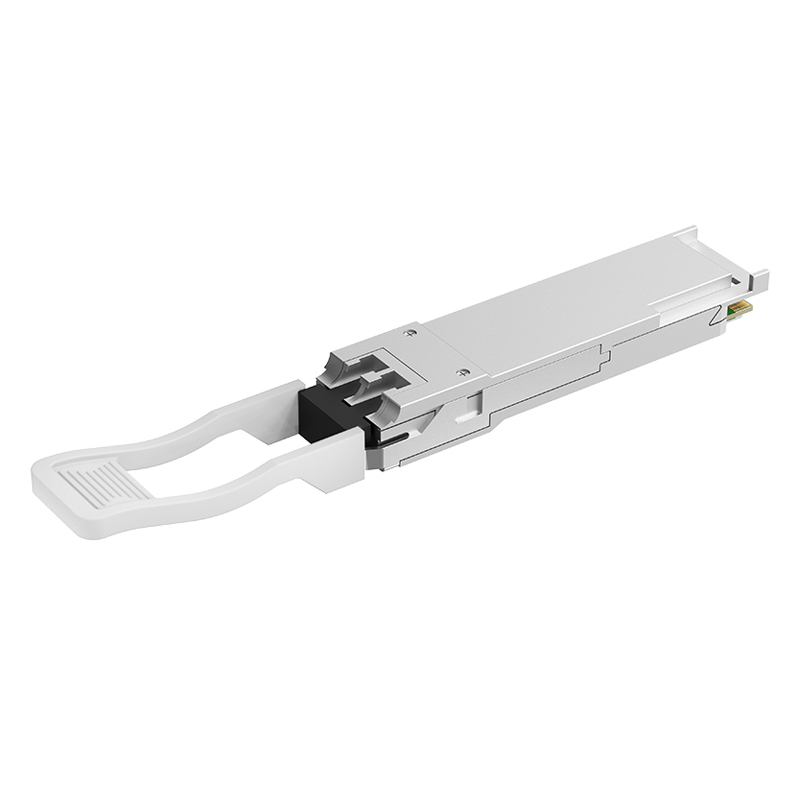

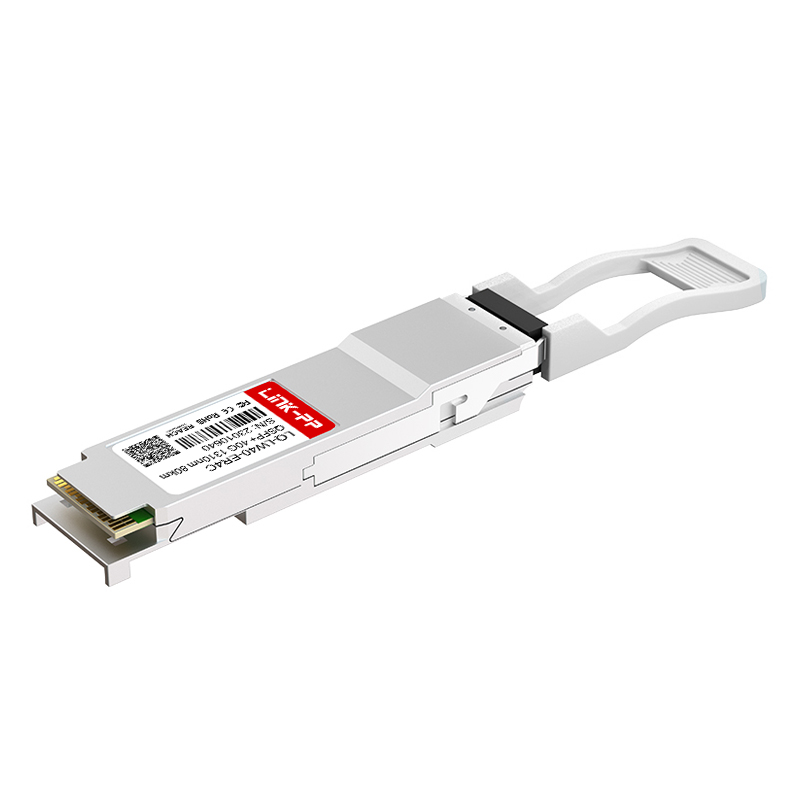

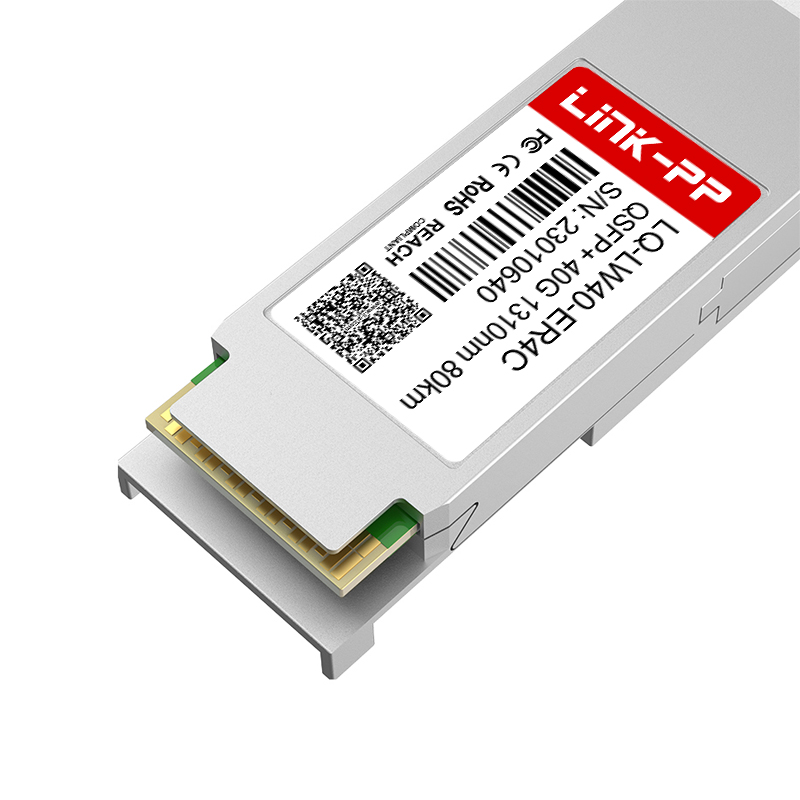

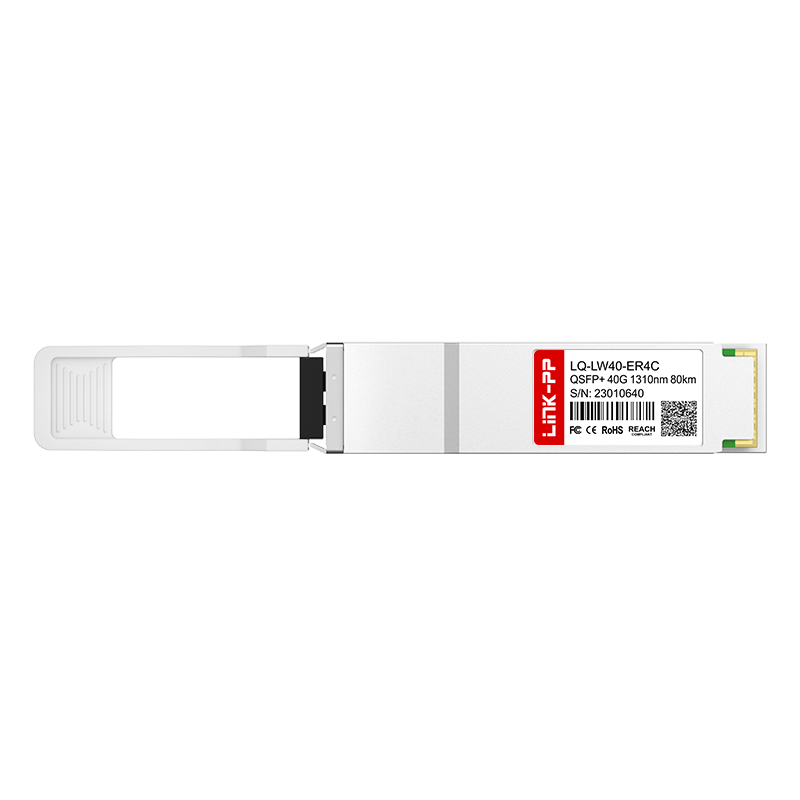

Single Mode Fiber Optic Transceiver Module Duplex LC 1310nm SMF QSFP+ 40G 80km

Product Description

Single Mode Fiber Optic Transceiver Module Duplex LC 1310nm SMF QSFP+ 40G 80km
Products Description
Item 40G QSFP+ Module
Part Status Active
Form Factor QSFP+
Max Data Rate 40G
Wavelength 1310nm
Max Cable Distance 80KM
Connector Duplex LC
Media SMF
Optical Component EML/PIN
TX Power 1~6dBm
Receiver Sensitivity <-25dBm
Receiver Overload -8dBm
Power Consumption ≤4.5W
DDM/DOM DDM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Protocols QSFP+ MSA, IEEE 802.3ba Compliant
Warranty 5 Years
Sample Available
VIEW OUR SOLUTION
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Solution Image 1
Solution Detail 1
Solution Detail 2
Solution Overview 1
Solution Overview 2
Optical Transport Networks
Optical Transport Networks
We provide end-to-end DWDM devices with almost all optical elements - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR, etc.
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Cloud and Enterprise
Wireless
Wireless
We deliver high reliability and performance products using mature and efficient lasers and mainstream chip solutions to customers worldwide. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul, meeting all the needs of various scenarios in 4G/5G systems.
FTTx
Aimed at global communication network constructors, we provide comprehensive FTTx optical fiber access solutions covering all-optical or optical-copper combined access solutions and products.
FTTx
Subsystems
Subsystems
To ensure the normal operation of communication lines, we provide an optical cable O&M solution that integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Product Image 1
Product Image 2
Related Products SFP Cage
Related Products
Why Choose Us
Feature Advantage 1
Feature Advantage 2
Feature Advantage 3
Feature Advantage 4
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROSH, REACH, CE, and UL, owning advanced manufacturing facilities and test equipment imported from abroad.

Established in 1997, we currently have around 2,000 staff members. With an abundant production capacity of 3,000K units per month, we are able to deliver products within a short timeframe.

Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronics technologies, we develop, manufacture, and sell products worldwide.
Facility Image 1
Facility Image 2
FAQ
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, with shipping costs covered by the buyer.
What is your delivery time?
Items in stock are ready to ship immediately, while mass production typical lead time is 15-30 days.
What after-service warranty do you offer?
We provide a comprehensive warranty period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send your inquiries and specifications to us so we can discuss the details.
What is your core advantage?
We offer over 19 years of professional production experience and long-standing partnerships with global industry-leading enterprises.
