Home > Single Port RJ45 Connector > RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534

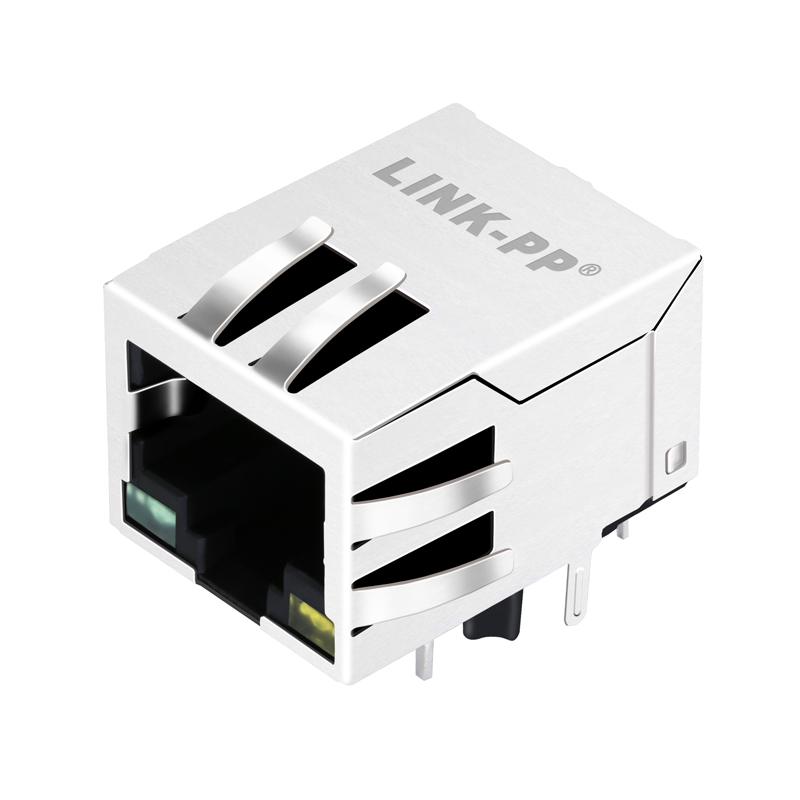

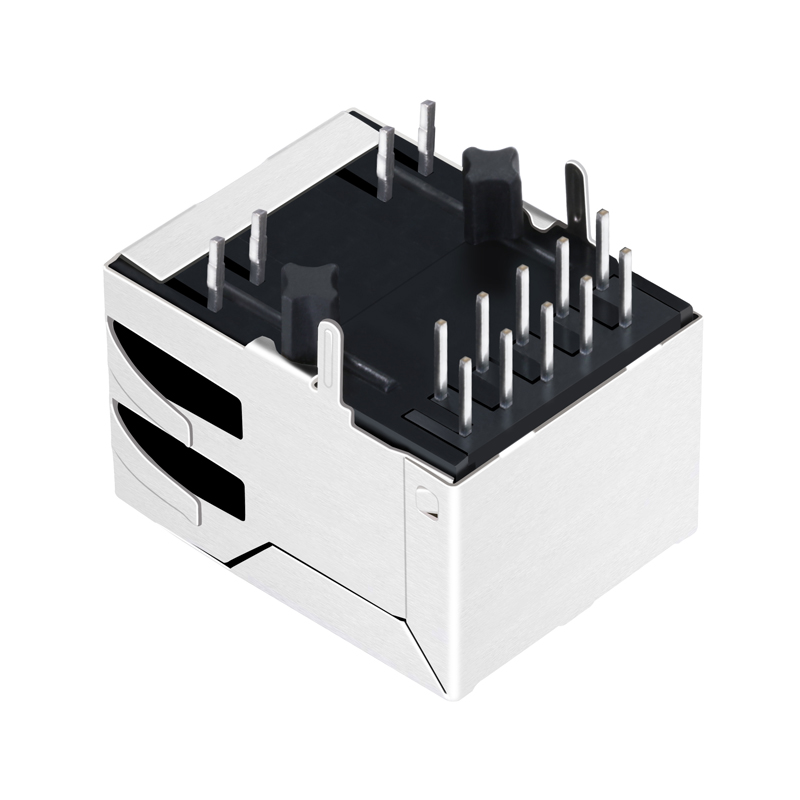

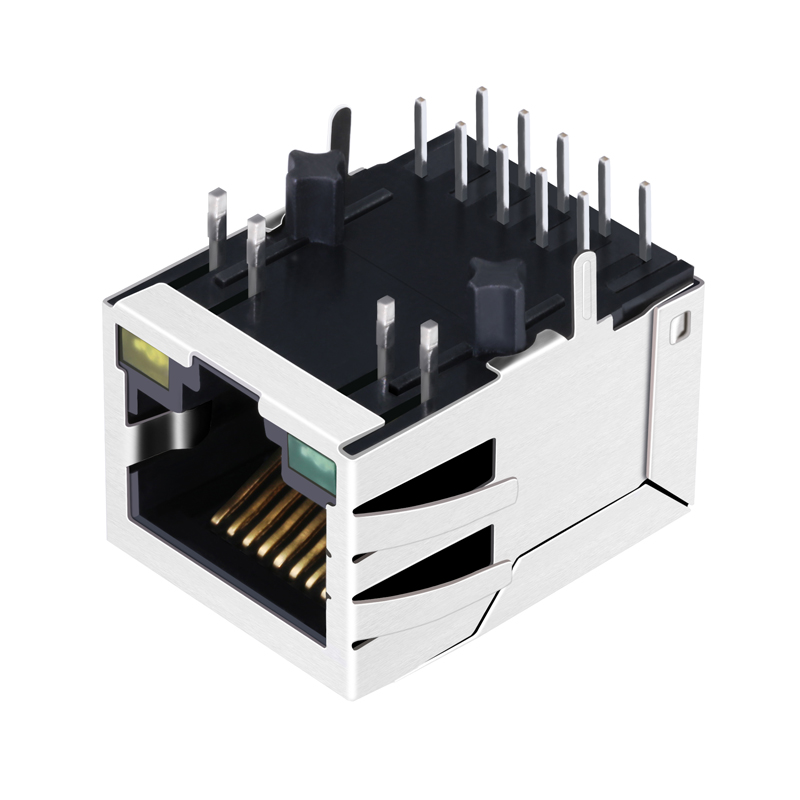

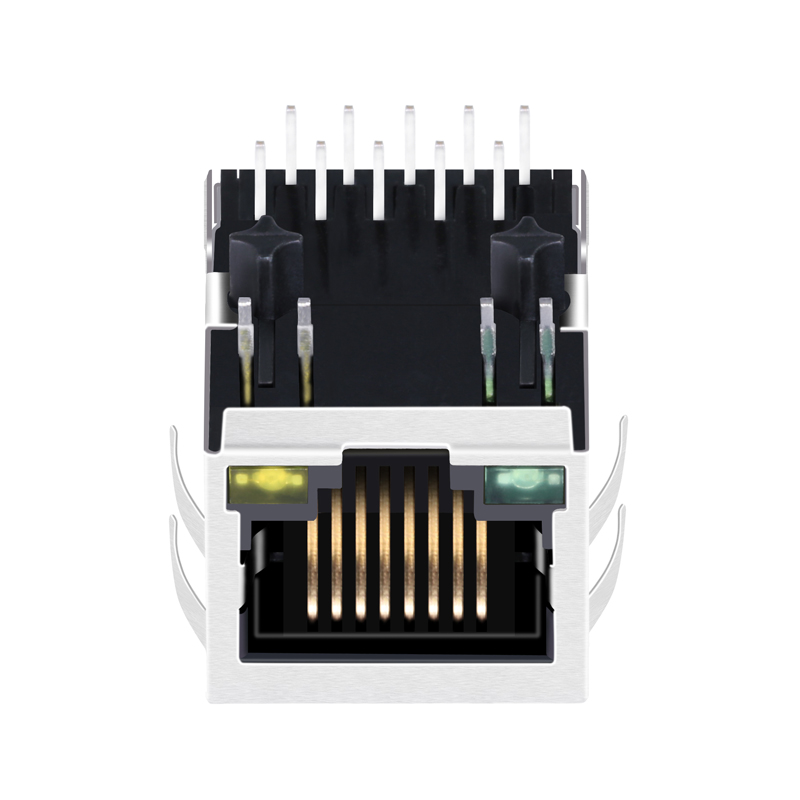

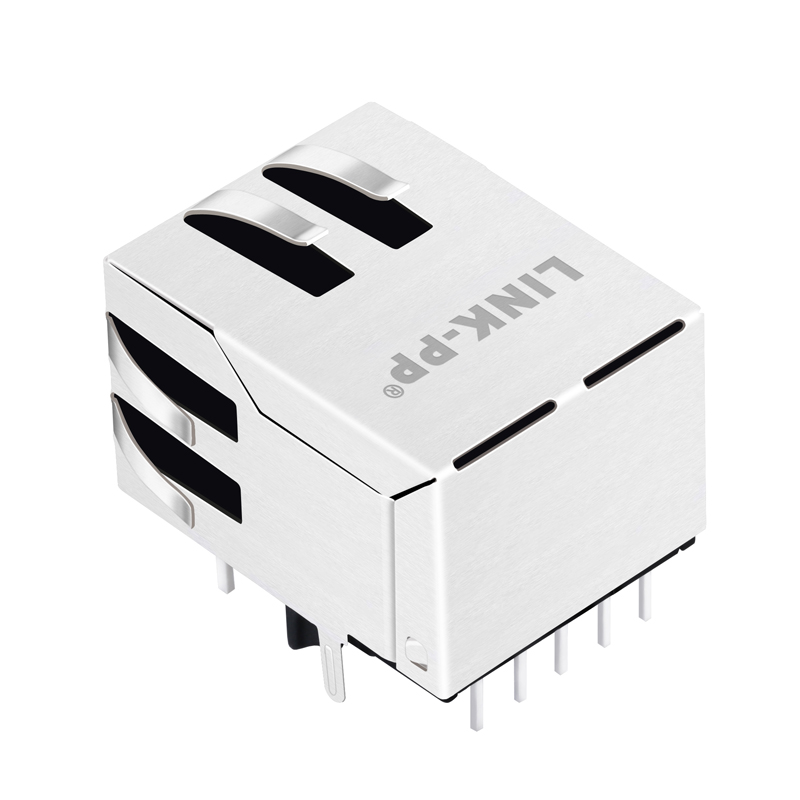

RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534
RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534
RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534
RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534
RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534
1 / 5
RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534
RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534
RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534
RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534
RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534

RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534

Send Inquiry

Product Description

RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534
RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534
RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534
RJ 45 Connectors with POE RJ45 Ethernet Jack
Technical Specifications
Part Number ARJ11E-MCSS
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"/50u"
Cores Per Port 4
Diodes NO DIODES
LED Option GREEN/RED
Latch UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH OR WITHOUT
Speed 1000 BASE-T
Temperature 0 TO 70°C/-40 TO 85°C
Turns Ratio RX 1CT:1
Turns Ratio TX 1CT:1
RJ 45 Connectors Drawing
Schematic & Dimensional Details
Technical Specifications Sheet
RJ 45 Connector Dimensions
Ethernet Jack Layout
Section Divider
PCB Mount Diagram
Mating View Configuration
Why Choose Us
Professional Certification
  • ISO 9001:2008
  • UL Certification
  • Reach Certification
  • RoHS Compliance
  • Active Environmental Policy
100% Quality Guarantee

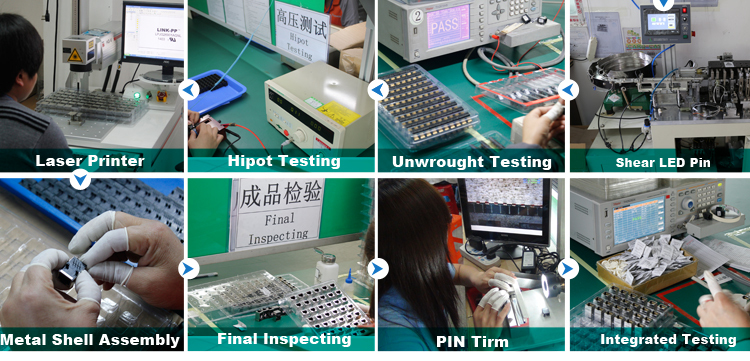

  • Manufactured Under Strict Controls
  • 100% Tested (Not Just Batch Tested)
  • OEM Partner for Leading Connectivity Brands for 9 Years
  • Successful Customer Applications: Texas Instruments, Samsung, Cisco, Siemens, Intel
  • Quality Guarantee: 6 Years
Competitive Advantage & Service
  • Highly Competitive Pricing Structure
  • Delivery Time: 2-3 Weeks After Orders
  • Free Samples Available Upon Request
  • New Designs Tailored to Customer Requirements
  • Up to 90% Off Standard Shipping Costs
Corporate Quality Policy
  • Achieve the Highest Level of Customer Satisfaction
  • Continuous Improvements in Quality, Delivery, and Service
  • Expect Quality Performance and Adherence to Zero-Defect Standard
Frequently Asked Questions

What is the part number of this RJ45 connector and what configurations does it support?

The part number is ARJ11E-MCSS. It supports side entry PCB mounting with a T-post retaining mechanism and THT solder pin type.

Does this RJ45 Ethernet Jack support PoE and Gigabit Ethernet speeds?

Yes, it supports Gigabit Ethernet speeds of 1000 BASE-T and is designed as an RJ45 Ethernet Jack with PoE configurations.

What is the contact mating area plating specification?

The contact mating area is plated with gold, available in multiple thickness options including 6u", 15u", 30u", and 50u".

What temperature range can this connector withstand?

This RJ45 connector is rated for operation across dual temperature ranges of 0 to 70°C and -40 to 85°C depending on application requirements.

Is this RJ45 product RoHS compliant?

Yes, it complies with RoHS-5 standards and is designed with an exemption for lead content in the solder.

What certification standards does this product meet?

The products are manufactured under strict controls matching ISO 9001:2008 standards, alongside UL Certification, Reach Certification, and RoHS Compliance.
