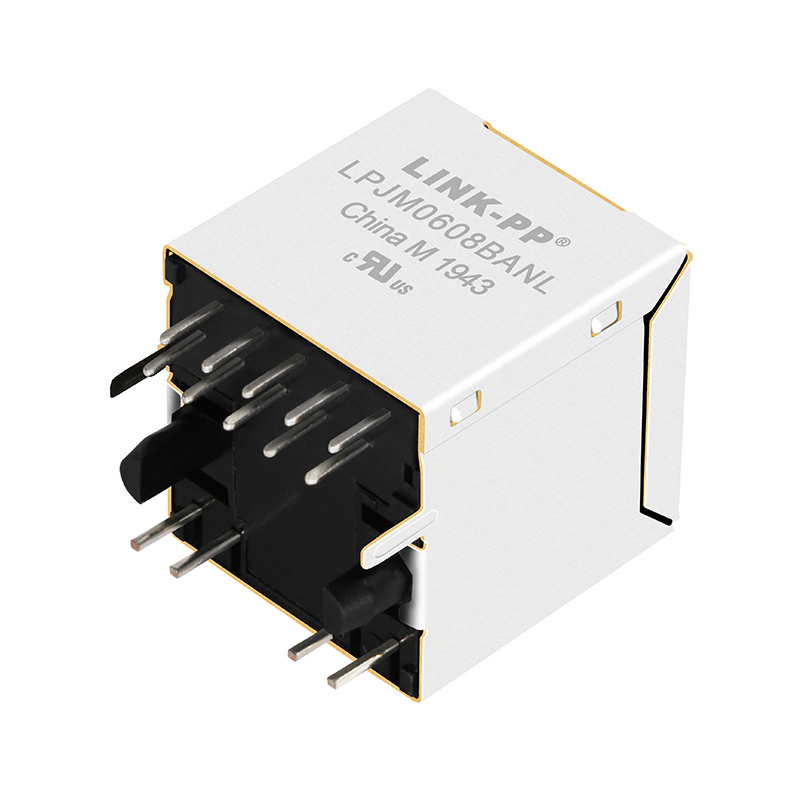

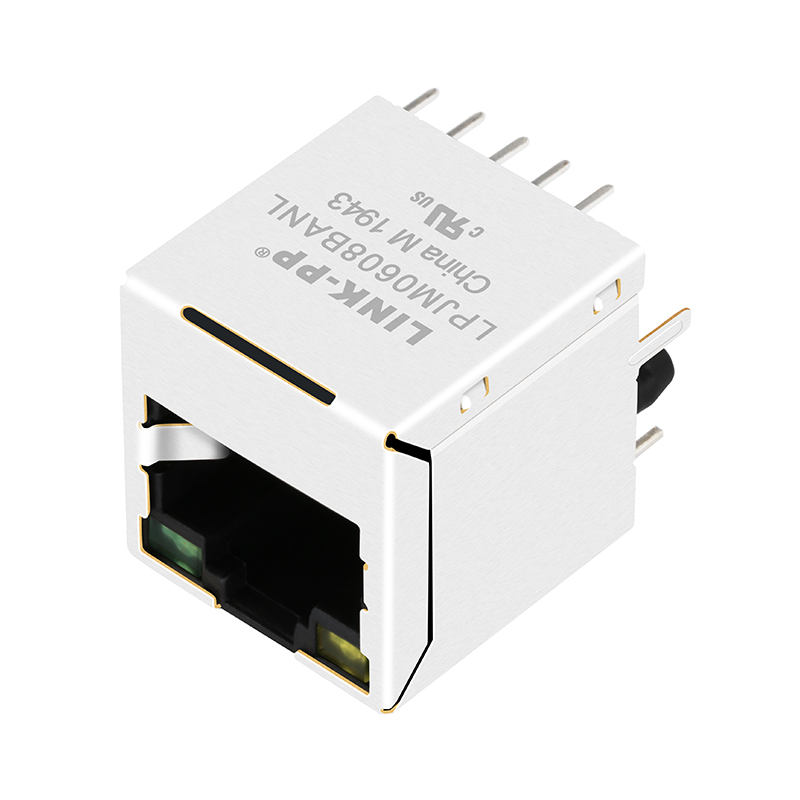

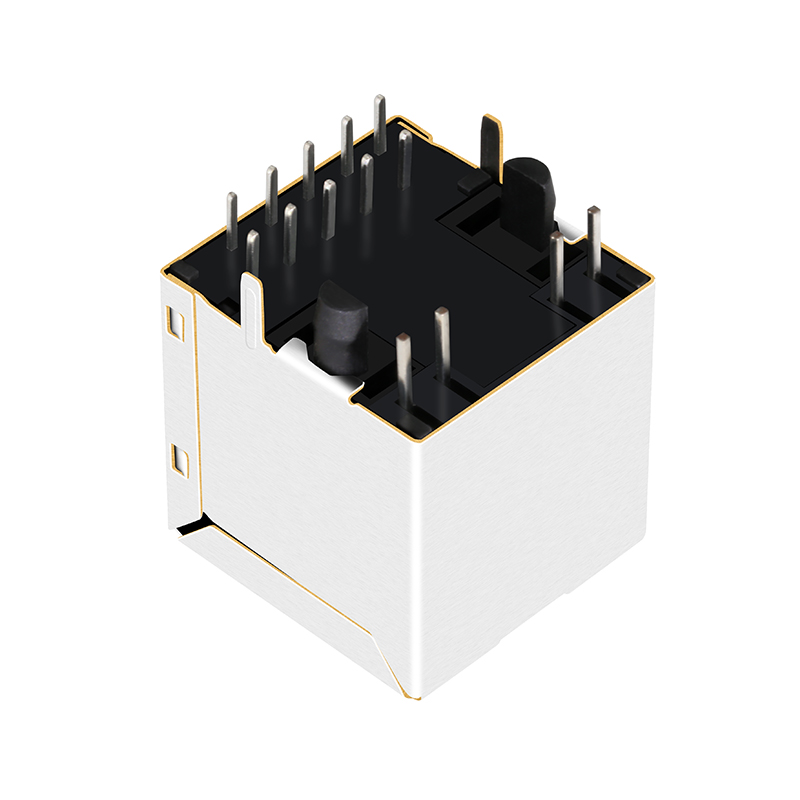

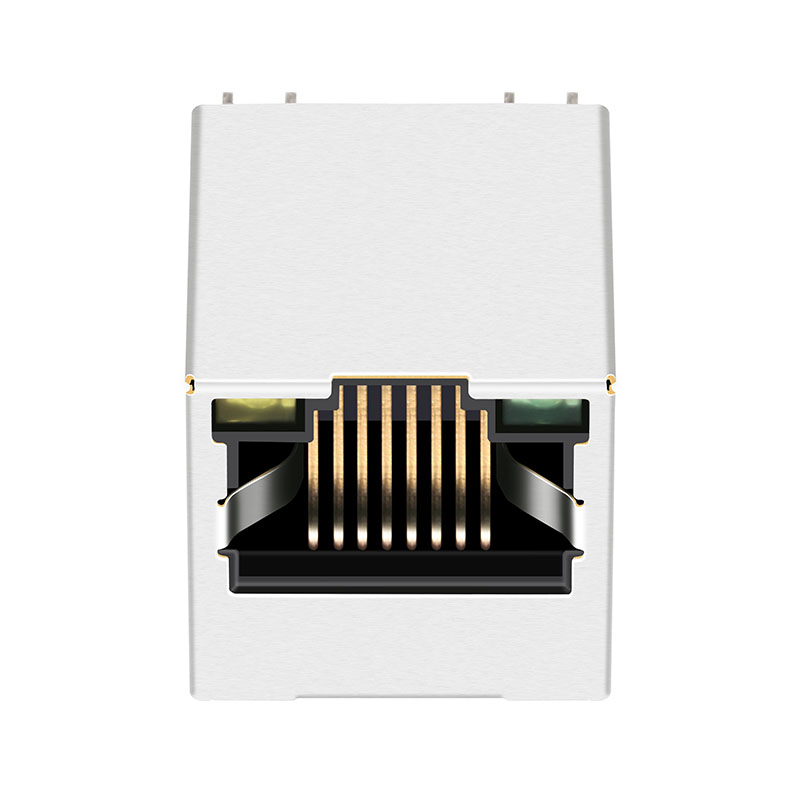

RJ-45 Network Sockets Ethernet 1 Port 2.5G Base-t Vertical RJ45 Female Connector With Led Lights

RJ45 Connector Overview
Products Description
Item RJ45 Female Connector
Bothhand Part Number LPJM0608BANL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 2.5g Base-T
Latch Up
Cores per Port 8
Orientation 180° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

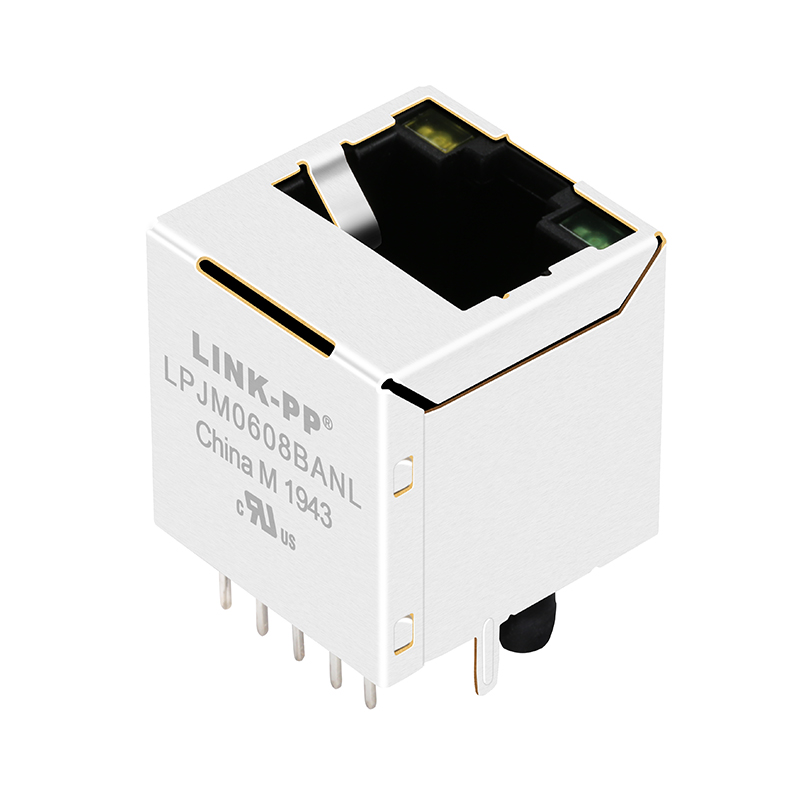

Product Detail View 1
Product Detail View 2
Specification View 1
Specification View 2
Specification View 3
Specification View 4
Click Below Products Link To Get More
Product Category Matrix
Structural Design 1
Structural Design 2
Structural Design 3
Testing Facility 1
Testing Facility 2
Testing Facility 3
Company Profile
Established in 1997, is a professional designer and Manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities. We are a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers and CEMs, supplying more than 10000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
Production Line 1
Production Line 2
FAQ
1. Are you factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free sample to test quality, but you should pay the shipping fee.
3. What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
4. What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
5. Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
6. What is your advantage?
19 years of production experience and we are Intel's and Jabil's partner for many years.
