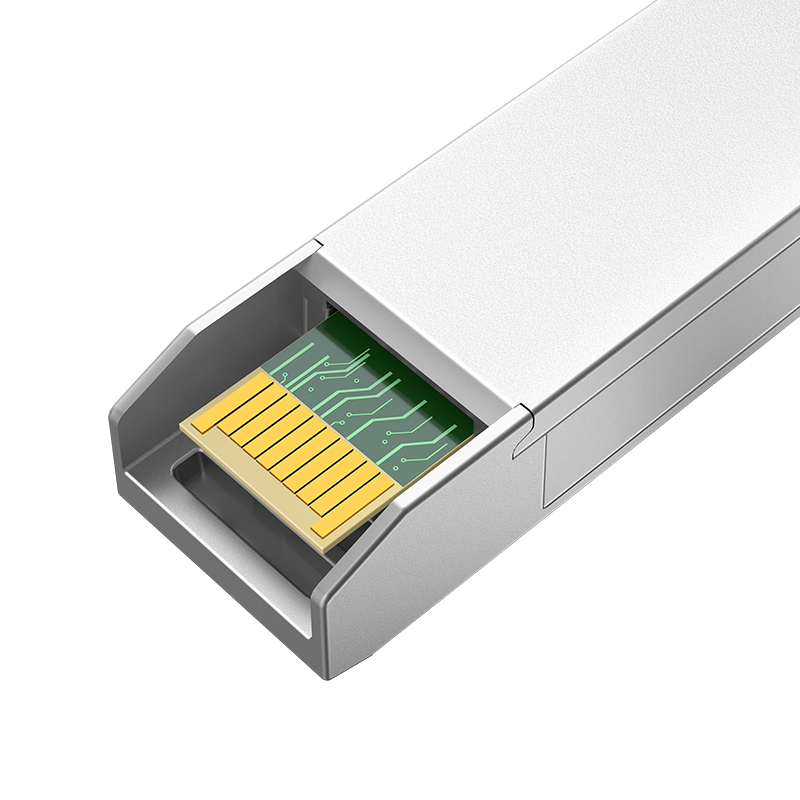

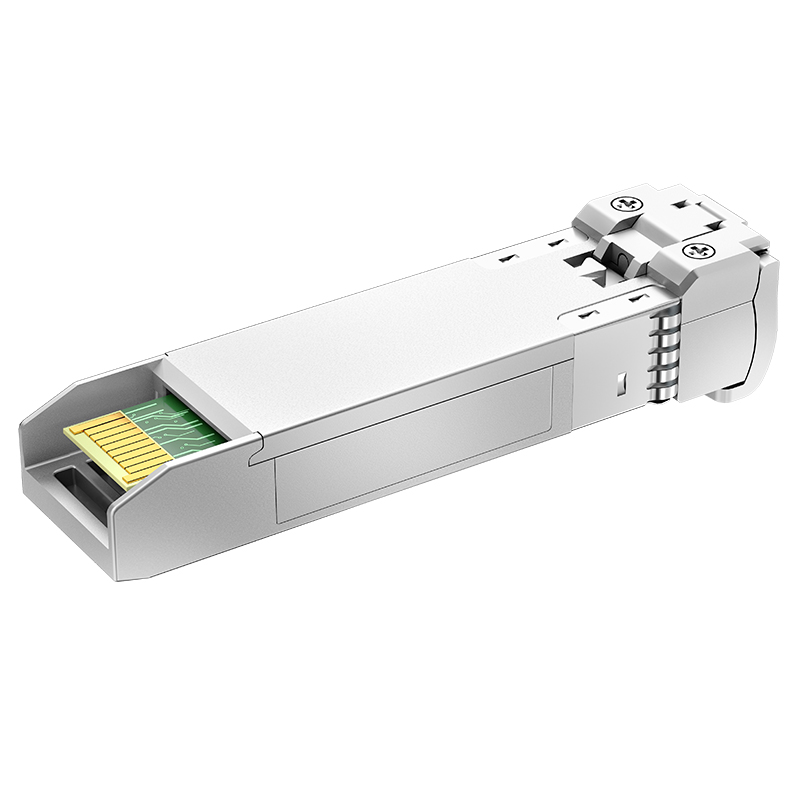

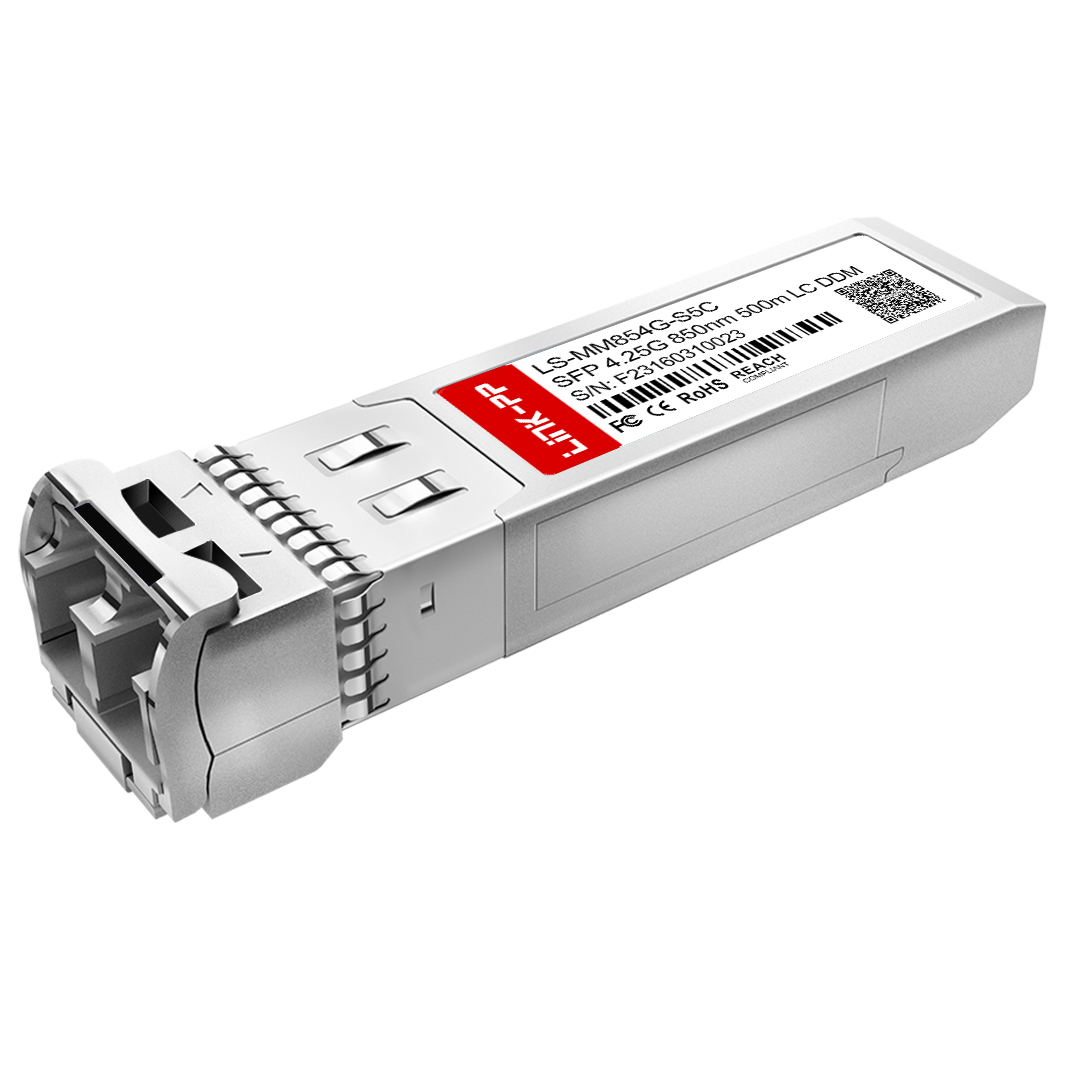

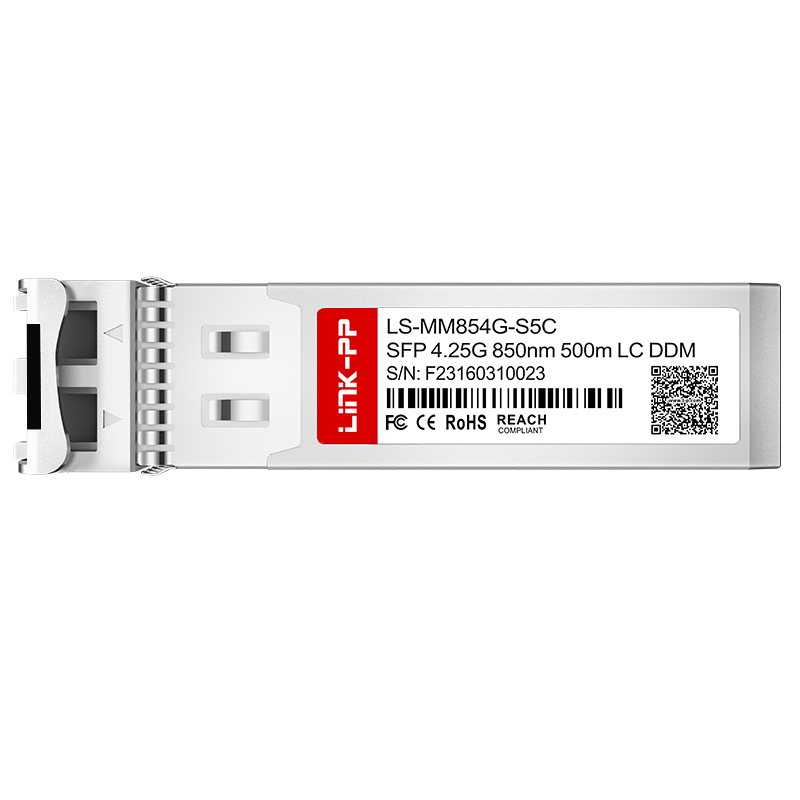

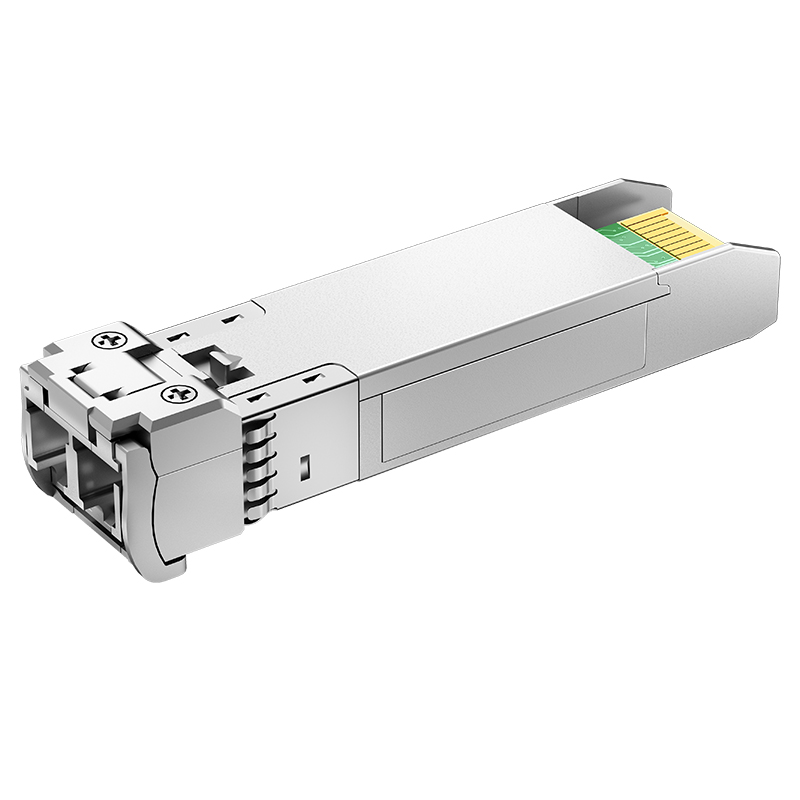

Multi-mode 850nm SFP 4G 500m DDM MMF Duplex LC Optical Transceiver Module

1 / 5

Multi-mode 850nm SFP 4G 500m DDM MMF Duplex LC Optical Transceiver Module

Send Inquiry

Product Description

Part No.	LS-MM854G-S5C
Form Factor	SFP
Max Data Rate	4.25Gbps
Wavelength	850nm
Max Cable Distance	500m
Connector	Duplex LC
Media	MMF
Transmitter Type	VCSEL
Receiver Type	PIN
TX Power	-6 ~ 0dBm
Receiver Sensitivity	< -13dBm
EMC (Electro Magnetic Compatibility)	Supported
DDM/DOM	Supported
Protocols	MSA Compliant
Temperature Range	0 to 70°C / -40 to 85°C
Warranty	5 Years
Sample	Available

VIEW OUR SOLUTIONS

⚡

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.

⚡

A full series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Product Overview & Categories

Support Full Range Of 4.25G SFP

Part Number	Data Rate	Wavelength	Distance	Media	DDM
LS-MM854G-S1C	4.25Gbps	850nm	150m	Multi-mode	Yes
LS-MM852G-S3C	4.25Gbps	850nm	300m	Multi-mode	Yes
LS-MM854G-S5C	4.25Gbps	850nm	500m	Multi-mode	Yes
LS-SM314G-02C	4.25Gbps	1310nm	2km	Single Mode	Yes
LS-SM314G-04C	4.25Gbps	1310nm	4km	Single Mode	Yes
LS-SM314G-10C	4.25Gbps	1310nm	10km	Single Mode	Yes
LS-SM314G-40C	4.25Gbps	1310nm	40km	Single Mode	Yes
LS-SM554G-40C	4.25Gbps	1550nm	40km	Single Mode	Yes

Applications & Scenarios

Optical Transport Networks

End-to-end DWDM devices with almost all optical devices can be provided - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR, etc.

Cloud and Enterprise

To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.

Wireless

High reliability and performance products are provided with mature and efficient lasers and mainstream chip solutions to customers worldwide. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.

FTTx

Aiming at global communication network constructors, FTTx optical fiber access total solutions are provided, covering all-optical or optical copper combined access solutions and products.

Subsystems

To ensure the normal operation of the communication line, the optical cable O&M solution is provided, which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).

Related Products SFP Cage

Why Choose Us

FAQ

Are you a factory or a trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

Can I get a sample before mass production?

Yes, we can offer you free samples to test quality, but shipping fees should be covered by the buyer.

What is your delivery time?

Items in stock are ready to ship immediately, while mass production typically takes 15-30 days.

What after-sales service do you offer?

We offer a one-year warranty period along with 24-hour online technical support.

Do you accept OEM/ODM orders?

Yes, please contact us with your specifications so we can discuss the details.

What is your advantage?

We have over 19 years of manufacturing experience and maintain long-term partnerships with industry leaders.
