5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
1 / 5
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector

5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector

Send Inquiry

Product Description

Product Description

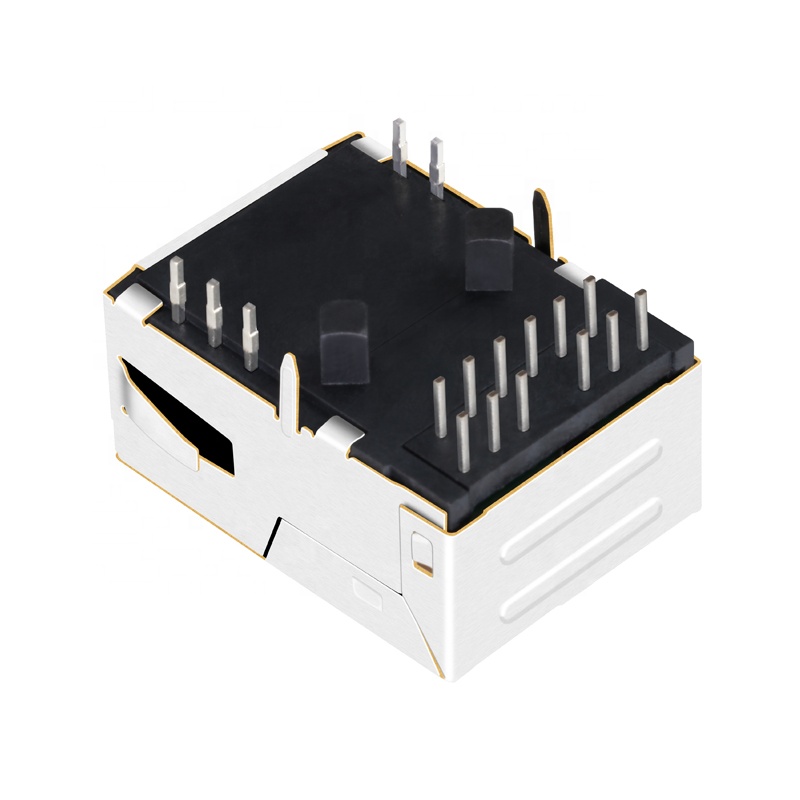

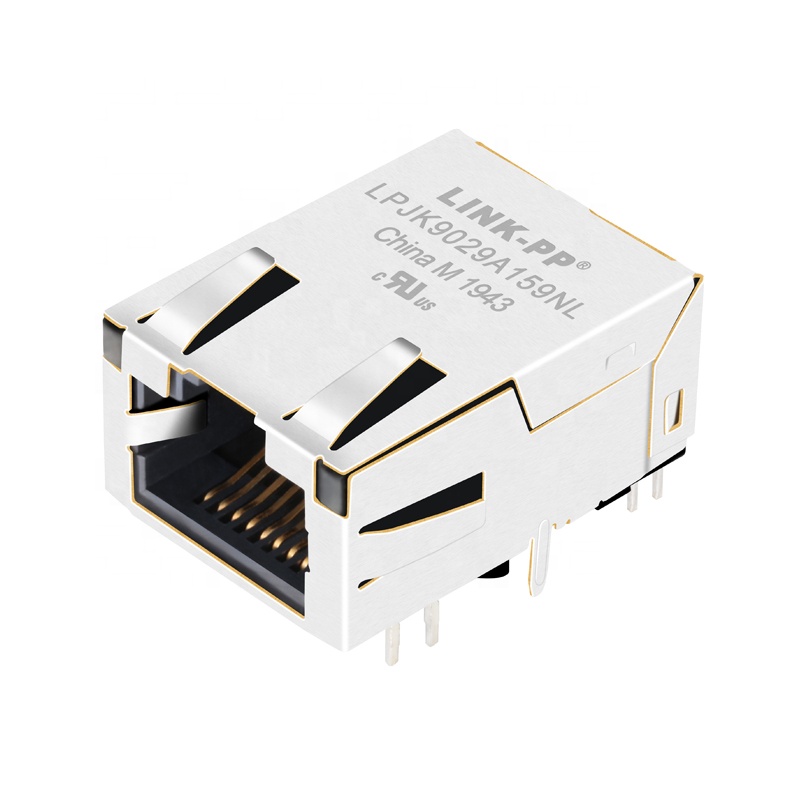

Product Image 1
Product Image 2
Specification
Item Value
Model Number LPJK9029A159NL
Part Status Active
Connector Type RJ45
Applications-Lan 5G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow&Green - Yellow
Number of Cores per Jack 8
Shielding Shielded
Number of Ports Single Port
Features Board Guide
Tab Direction Down
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C
Characteristics
Characteristics Diagram
RJ45 Connector with integrated transformer / common mode choke
Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
Available in SMT, THT and THT with USB
Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEEE 802.3bt
HPLE products: Improved Common Mode Rejection due to additional NiZn cores
Packing & Delivery
Package Details: 110 pcs in 1 tray, which is 34.5*34.5*27cm, 5.5KGS (550pcs) of each carton.
Packing Image
Product Gallery

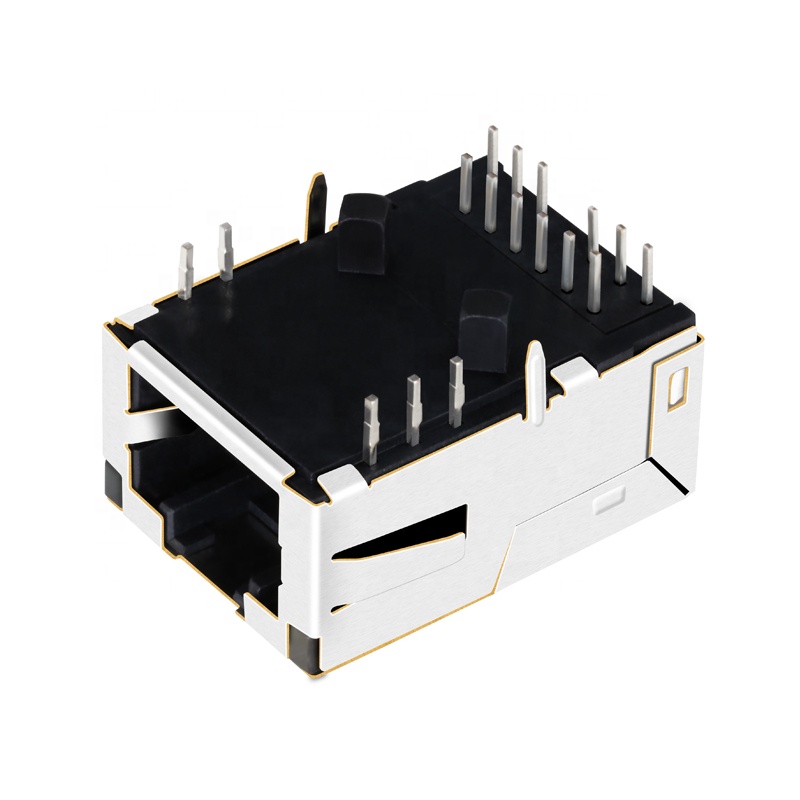

Gallery Image 1

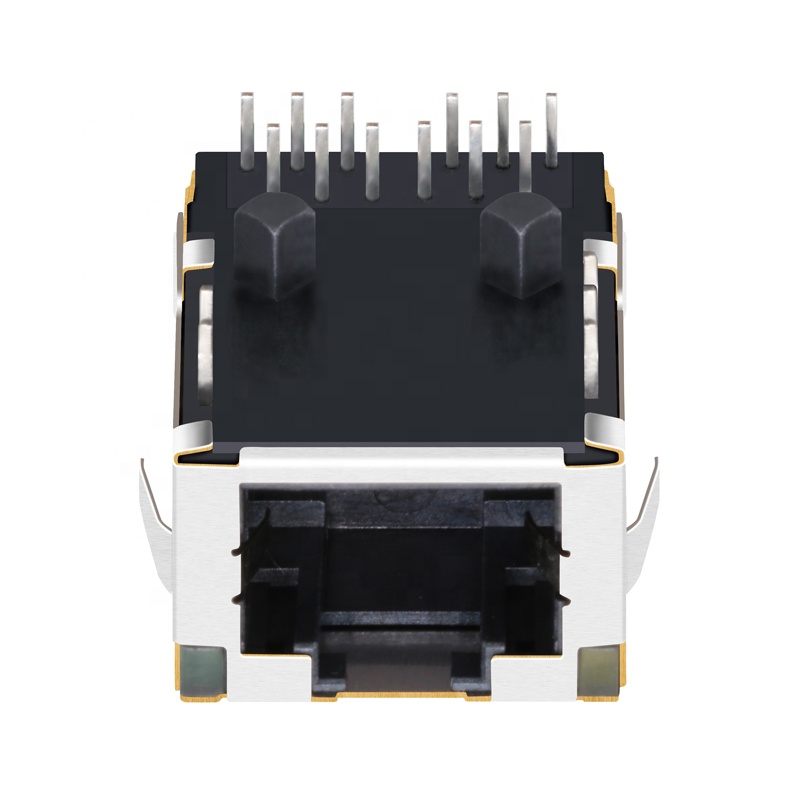

Gallery Image 2
Gallery Image 3
Gallery Image 4
Gallery Image 5
Gallery Image 6
Gallery Image 7
Frequently Asked Questions
What are the primary applications for the LPJK9029A159NL connector?
This RJ45 connector is designed specifically for 5G Base-T and AutoMDIX LAN networking configurations, ensuring high-speed data transmission and reliable performance.
Does this RJ45 connector support Power over Ethernet (PoE)?
Yes, this configuration supports Power over Ethernet (PoE) capacities of up to 50 Watts and transfer speeds up to 10 Gbit/s.
What is the operational temperature range for this component?
The device is rated to operate safely and effectively within a temperature range of 0°C to 70°C.
How are the components packaged for volume delivery?
They are packaged in trays containing 110 pieces. Standard shipping cartons contain 550 pieces (5 trays) with dimensions of 34.5*34.5*27cm and a total weight of approximately 5.5 KGS.
What standards does this product comply with?
It complies with IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, and IEEE 802.3at specifications, and features NiZn cores for improved common-mode rejection.
