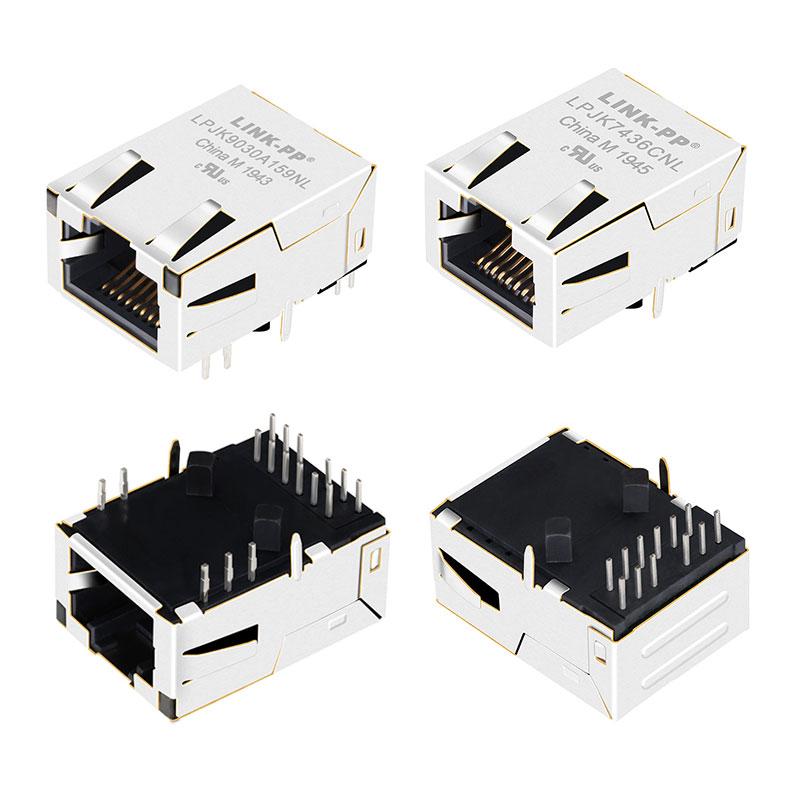

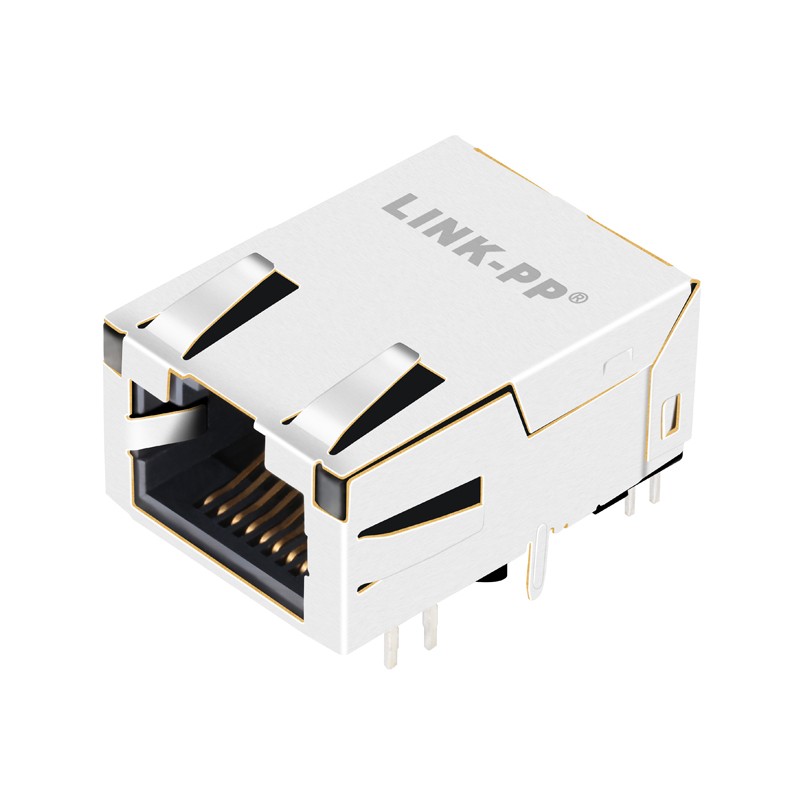

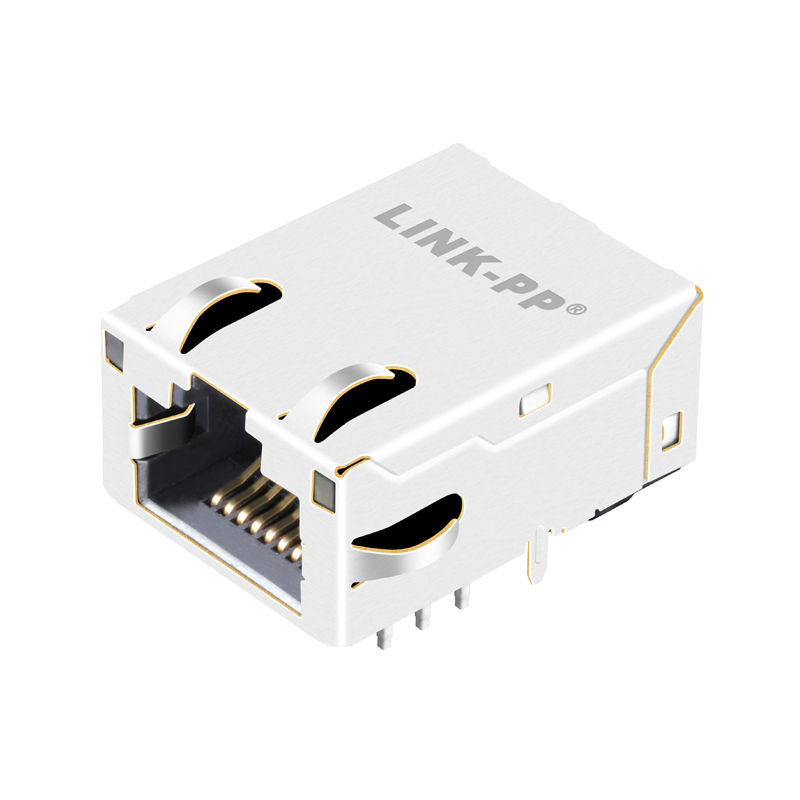

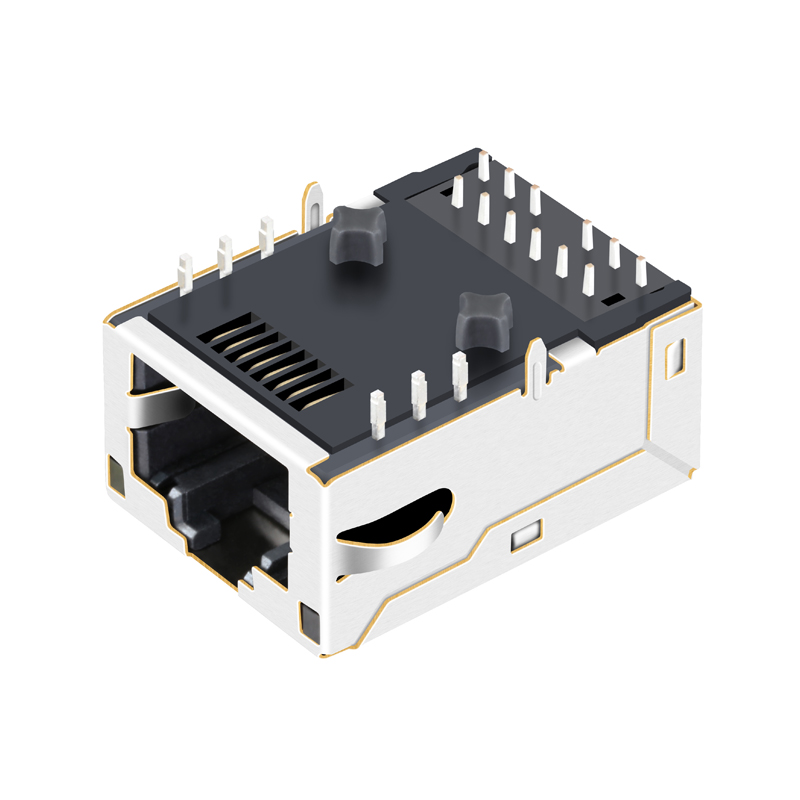

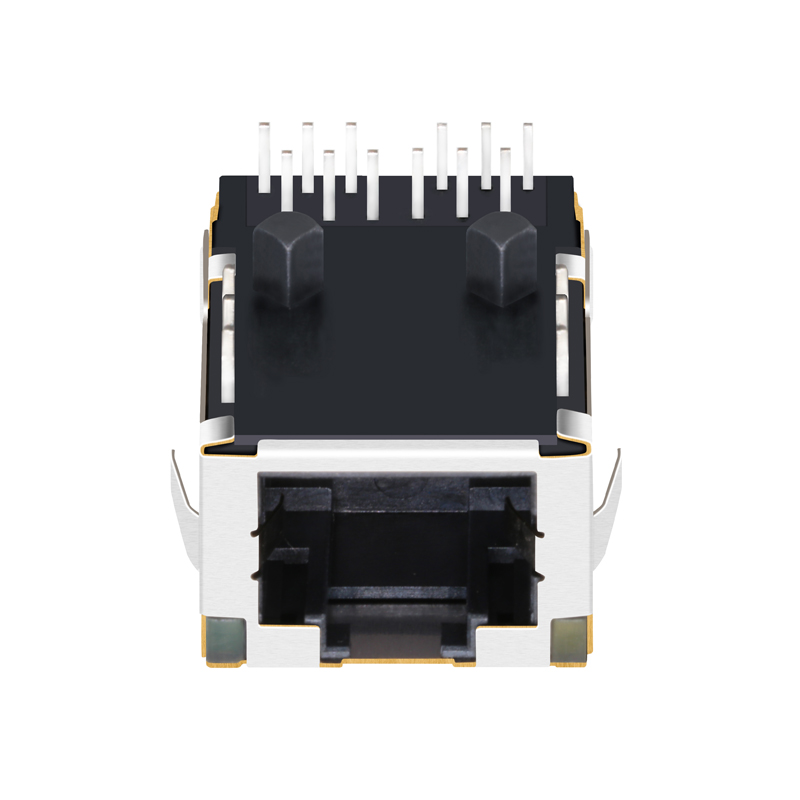

100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector

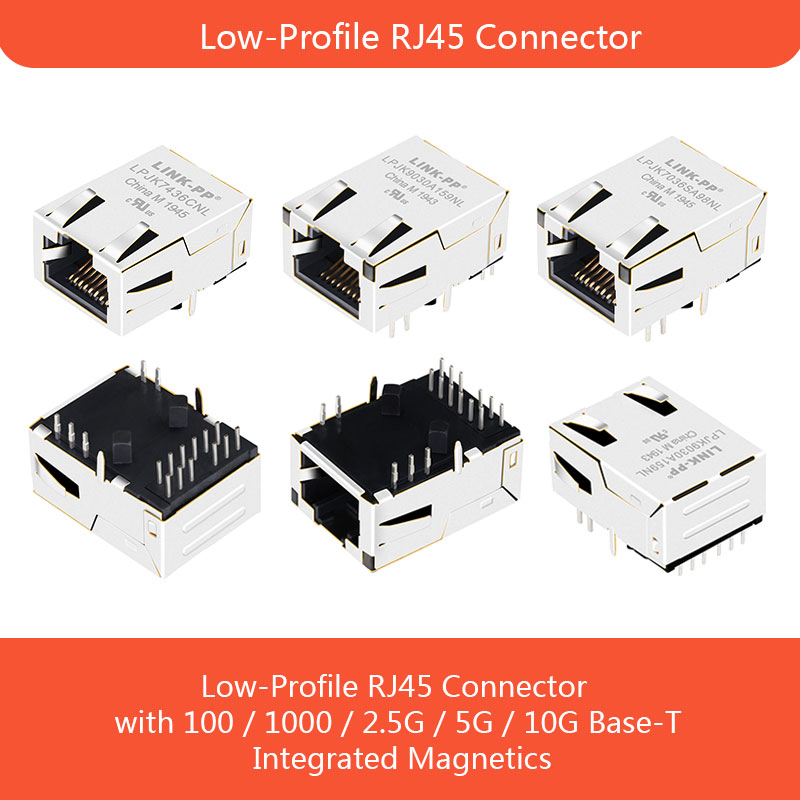

Specification & Characteristics

RJ45 Connector: Designed with integrated transformer and common mode choke.
Power over Ethernet (PoE): Supports up to 50 Watt with speeds up to 10 Gbit/s.
Flexible Packaging: Available in SMT, THT, and THT configurations with USB.
Standard Compliance: Fully compliant with IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and upcoming IEEE 802.3bt.
HPLE Technology: Features improved Common Mode Rejection due to additional NiZn cores.

Technical Parameters

Item	Value
Model Number	Low profile rj45 jack
Part Status	Active
Connector Type	RJ45
Applications-Lan	Ethernet(PoE/Non_PoE)
Speed	10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Contact Finish Thickness	6.00µin (0.152µm)
LED Color	Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack	4/6/8/12
Shielding	Shielded, Emi Finger
Number of Ports	Single Port
Features	Board Guide
Tab Direction	Down/Up
Contact Finish	Gold
Configuration RX/TX	T,C
Turns Ratio RX/TX	1CT:1CT
Operating Temperature	0°C ~ 70°C/-40°C ~ +85°C

Packing & Delivery

Package Type: Tray

Carton Size: 40 * 32 * 33 cm

Gross Weight per Carton: 12.3 kg

Quantity per Carton: 1200 pcs

Standard Packaging Quantity (SPQ): 50 pcs

Net Weight per Piece: 0.01 kg
