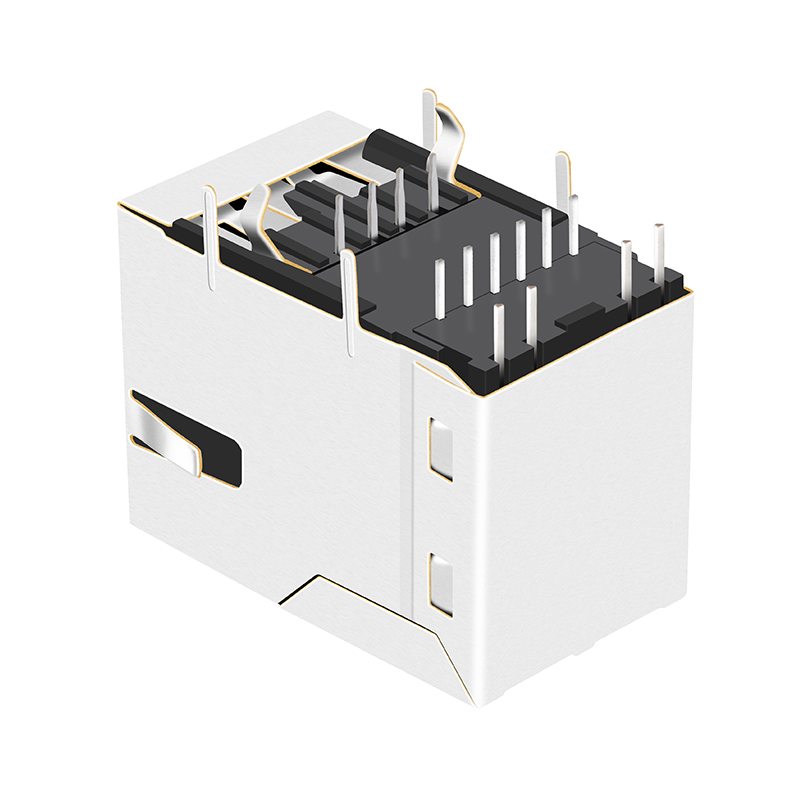

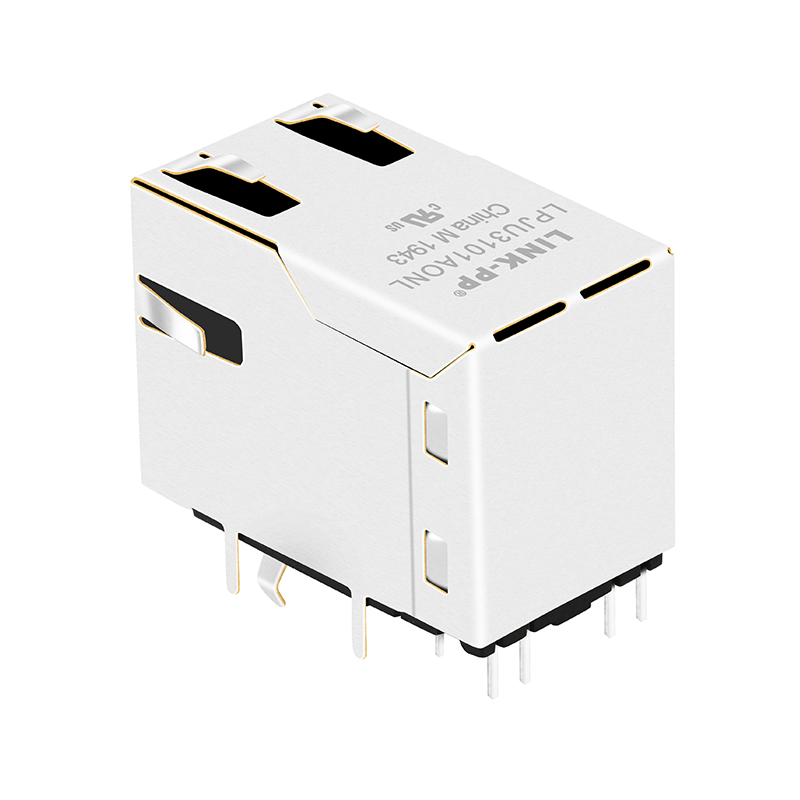

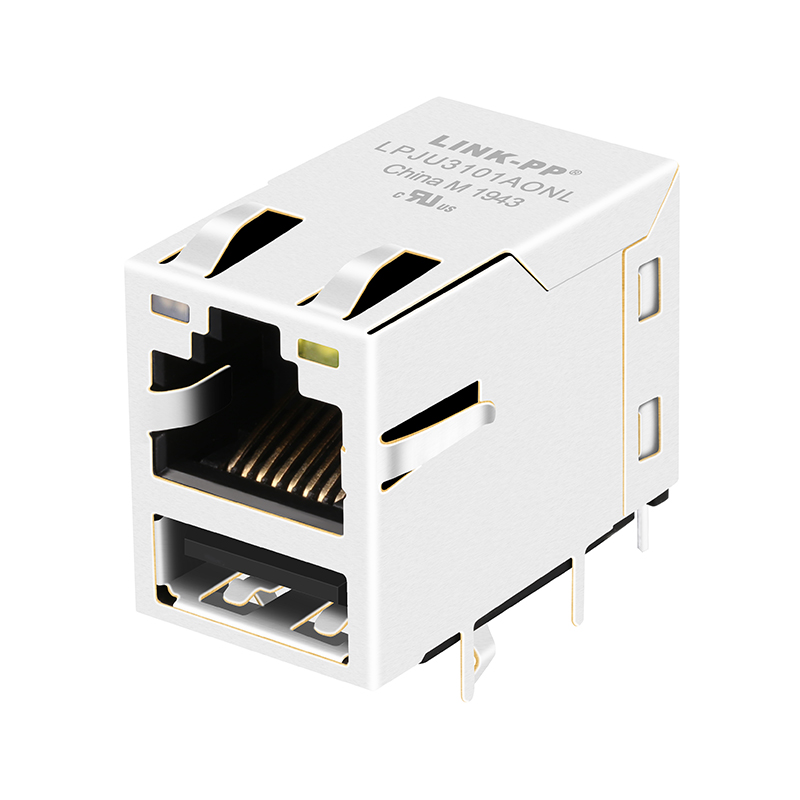

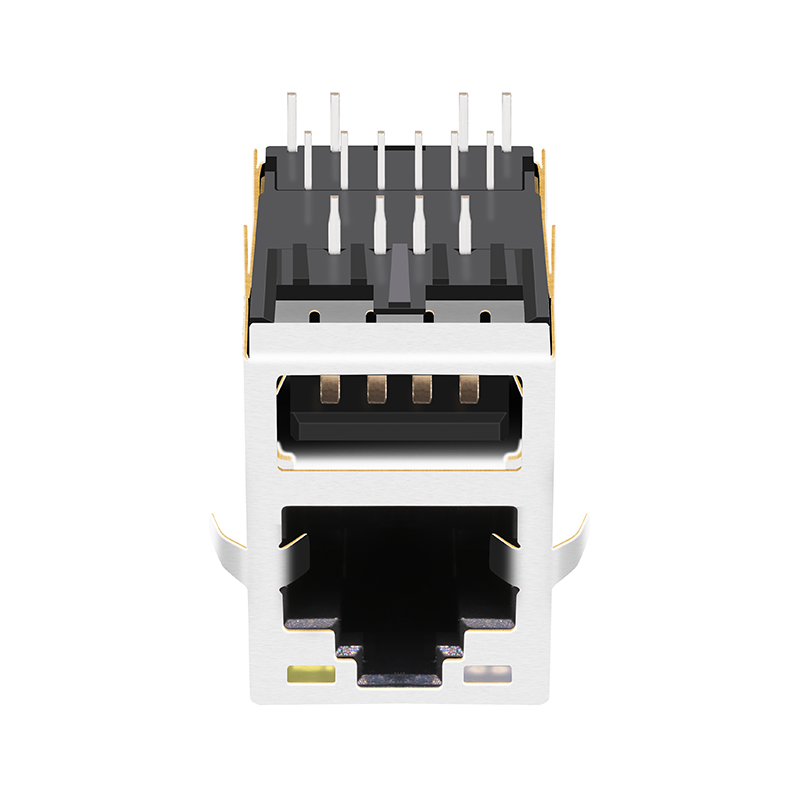

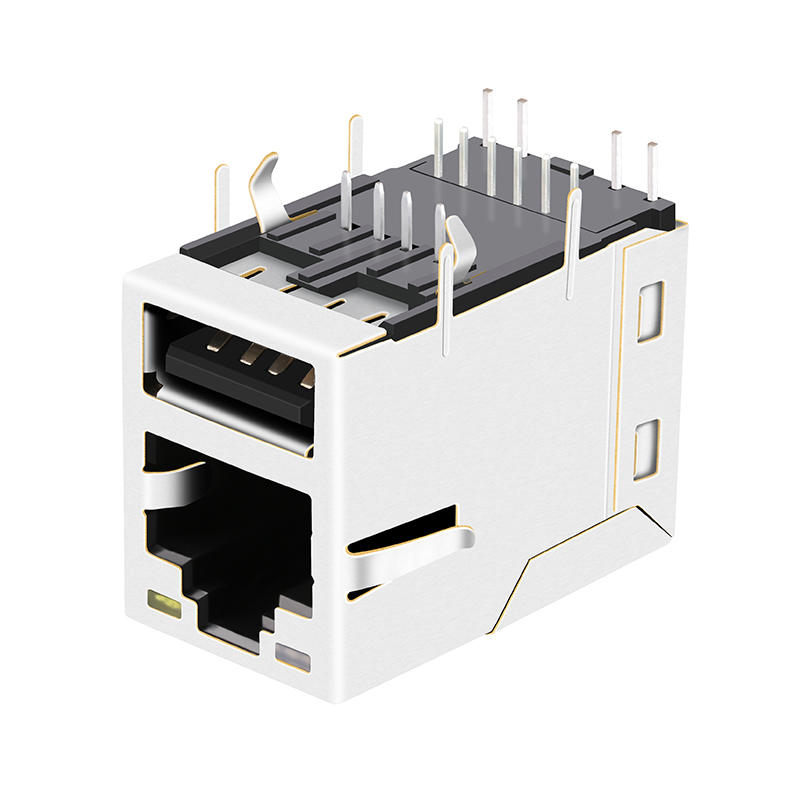

8211-1X1T-36-F 10/100 Base-T RJ45 Female Connector With Single USB

Product Description

Connector Category Overview
Lan Transformer Categories
Send Inquiry To Get Latest Price List
Product Layout Diagram
Connector Dimensional Drawing
8211-1X1T-36-F 10/100 Base-T RJ45 Connector with Single USB
Products Description
Item Specification Details
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port With 1 USB
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Orange&Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Interface Configuration Info
Why Choose Us
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE and UL, owning advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2,000 staff at present. With the abundant productive capacity of 3,000K per month, we are able to deliver the goods within a short time. Moreover, we can provide the professional complete solution for magnetic components and strong technical support as well. Our main products include 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem. We have exported our products to more than 30 countries and regions in the world, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan. Our engineering staff is dedicated to identifying, developing and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith in pursuing higher standards will convince you to be our long-term partner.
FAQ
1. Are you factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, lan transformers, RJ11 connectors, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping costs will apply.
3. What is your delivery time?
Items in stock are ready to ship, and mass production orders typically require 15-30 days.
4. What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so we can proceed with a detailed discussion regarding your specifications.
6. What is your advantage?
We offer over 19 years of dedicated production experience and have partnered with major industry leaders globally for many years.
