MIC24U16131W-LF3 Tab up 10/100 Base-t Ethernet Magnetic Female RJ45 USB Jack With Leds

Product Description

Ethernet Magnetic Female RJ45 USB Jack
MIC24U16131W-LF3 Tab Up 10/100 Base-t Ethernet Magnetic Female RJ45 USB Jack With Leds
Products Description
Item Specification Details
Item RJ45 Female Connector
Part Number LPJU3101AONL
Compatible With MIC24U16131W-LF3
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle Side Entry
Shield EMI Tabs With
LED Option With
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Technical Drawing and Specification
Click Below Products Link To Get More
Low Profile and SMT RJ45 Connectors Selection

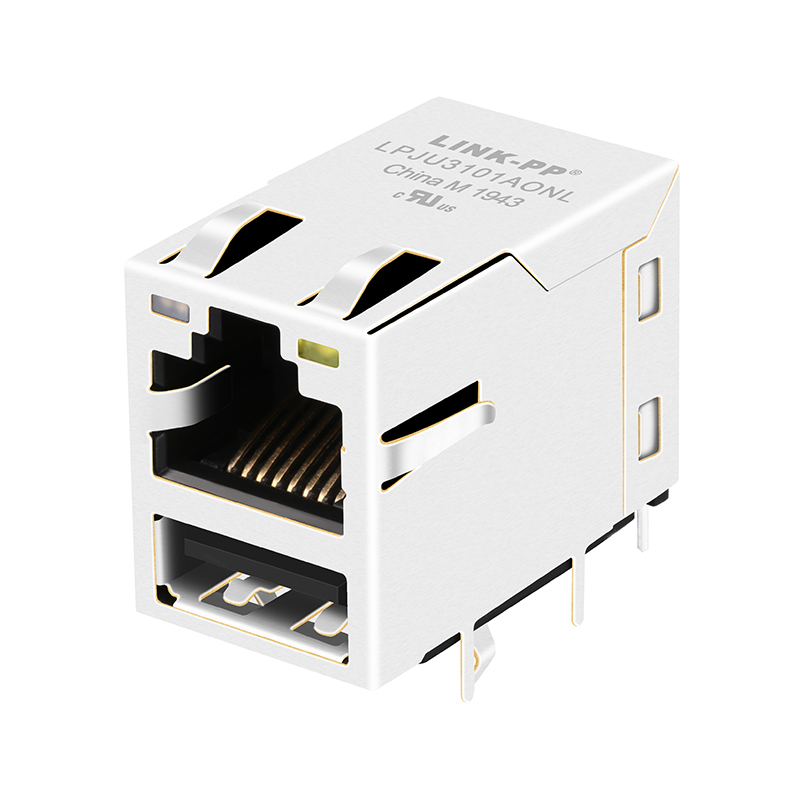

Connector Visual Detail 1

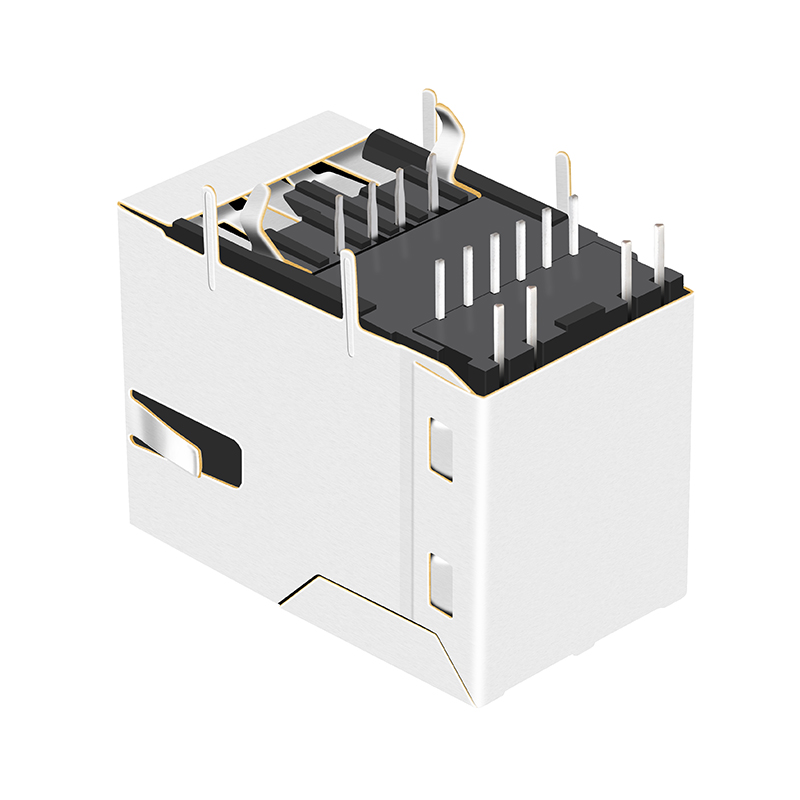

Connector Visual Detail 2

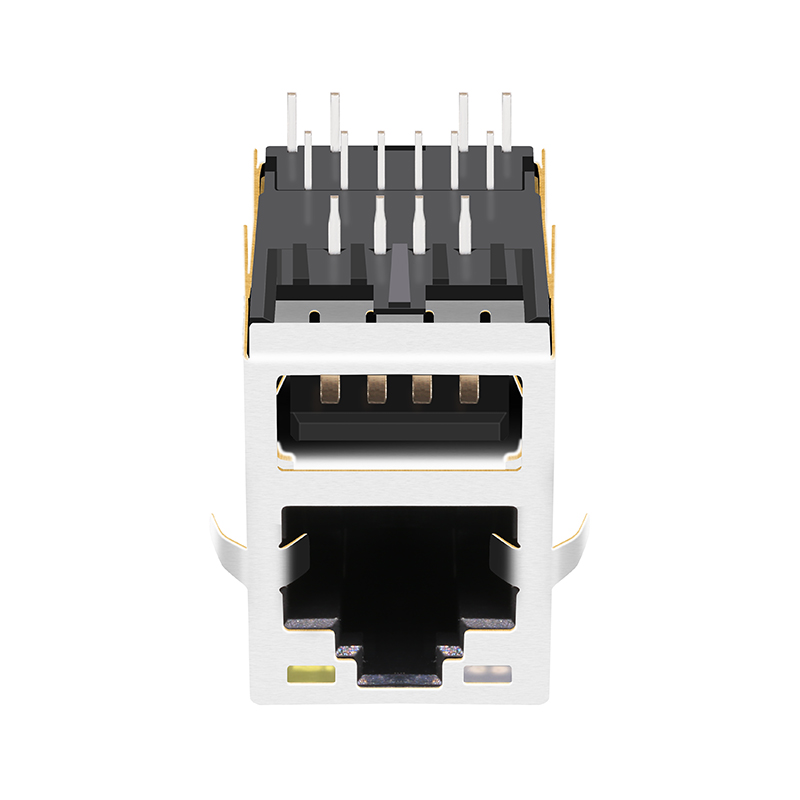

Connector Visual Detail 3
Production Facility View 1
Production Facility View 2
Production Quality Testing 1
Quality Standard Assurance
Profile
Established in 1997, this professional designer and manufacturer specializes in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we serve as a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers across 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Manufacturing Center
Automated Production Line
Product Inspection Area
FAQ

1. Are you a factory or a trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

2. Can I get a sample before mass production?

Yes, we can offer you free samples to test quality, but you will need to pay for the shipping cost.

3. What is your delivery time?

Products in stock are ready to ship immediately, while mass production typically takes between 15 to 30 days.

4. What after-service can you offer?

We provide a one-year guarantee period along with 24-hour online technical support.

5. Can you accept OEM/ODM orders?

Yes, we welcome OEM and ODM requests. Please send us your requirements so we can discuss the details.

6. What is your advantage?

We offer over 19 years of manufacturing expertise and have been a trusted partner to tier-one global technology brands for many years.
