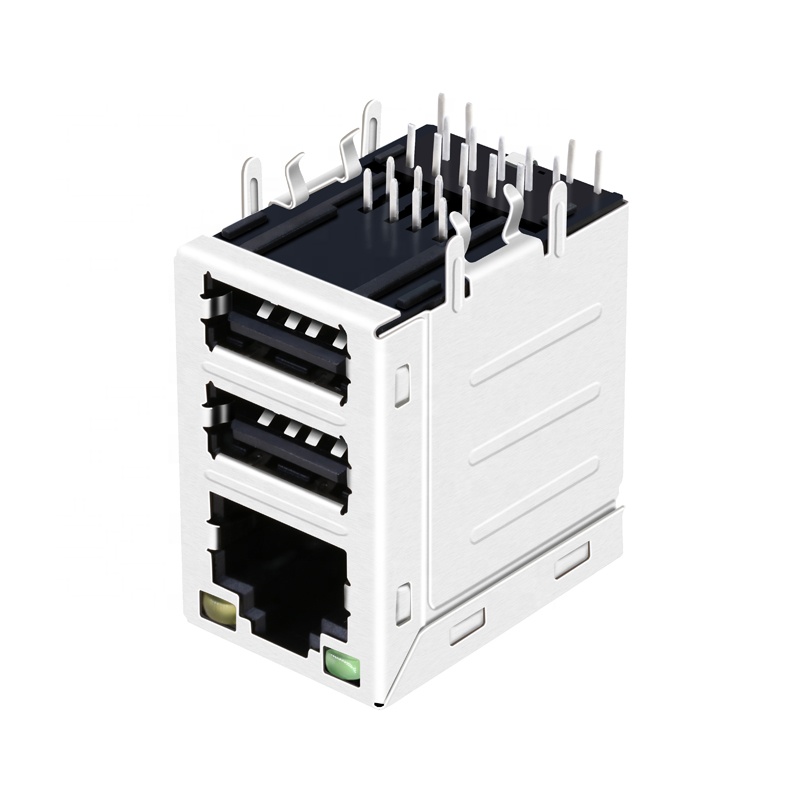

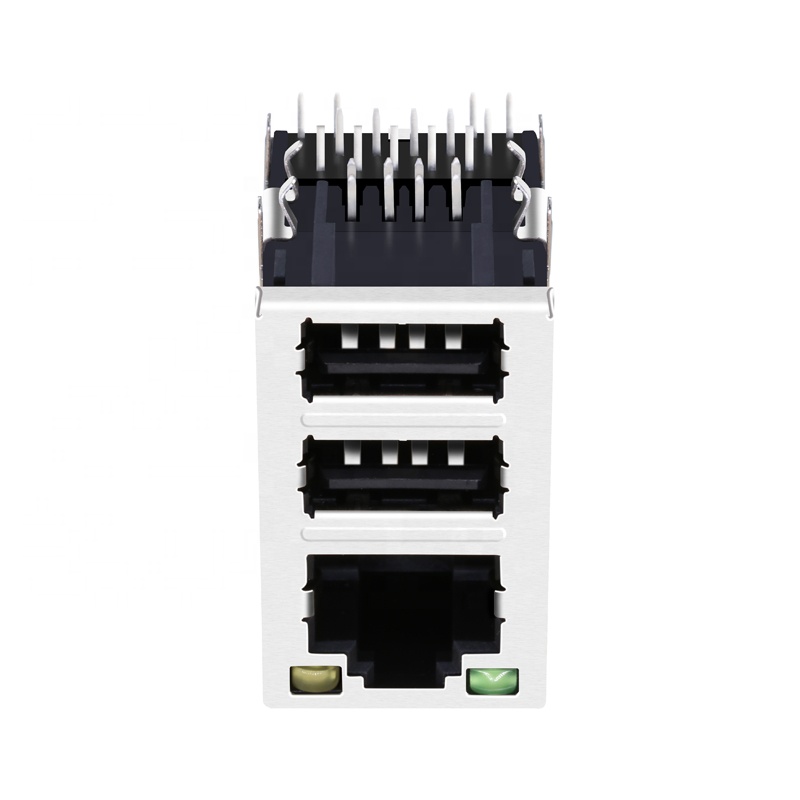

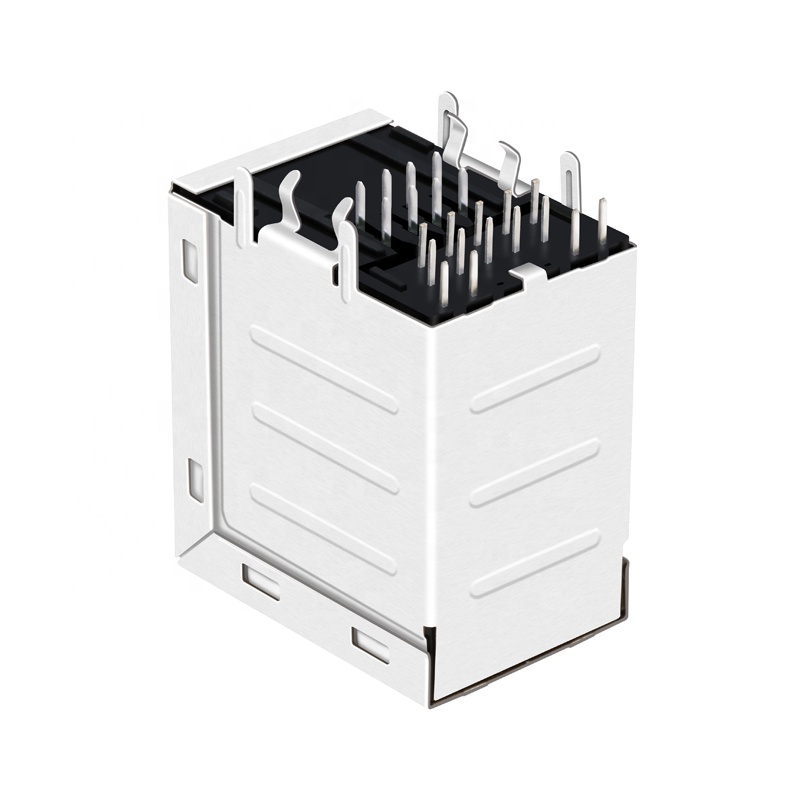

45F-10101DYD2NL JW0-0009NL C893-1AX1-E1 Magnetic RJ45 Connector Jack With Dual USB

Product Description

Magnetic RJ45 Connector Jack with Dual USB Overview
Magnetic RJ45 Connector Dimensions and Design
45F-10101DYD2NL JW0-0009NL C893-1AX1-E1 Magnetic RJ45 Connector Jack with Dual USB
Products Description
Item RJ45 Female Connector
Part Number (A) LPJU5009B28NL
Part Number (B) C893-1AX1-E1
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports Single Port With Dual USB
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB Material FR4
PCB Retaining Post T POST
Temperature Range 0°C TO 70°C
Bst Circuit Yes
AutoMDIX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C
Magnetic RJ45 Jack Pinout Diagrams
Lan Transformer Schematic Diagram
Send Inquiry To Get Latest Price List
Magnetic RJ45 Option 1

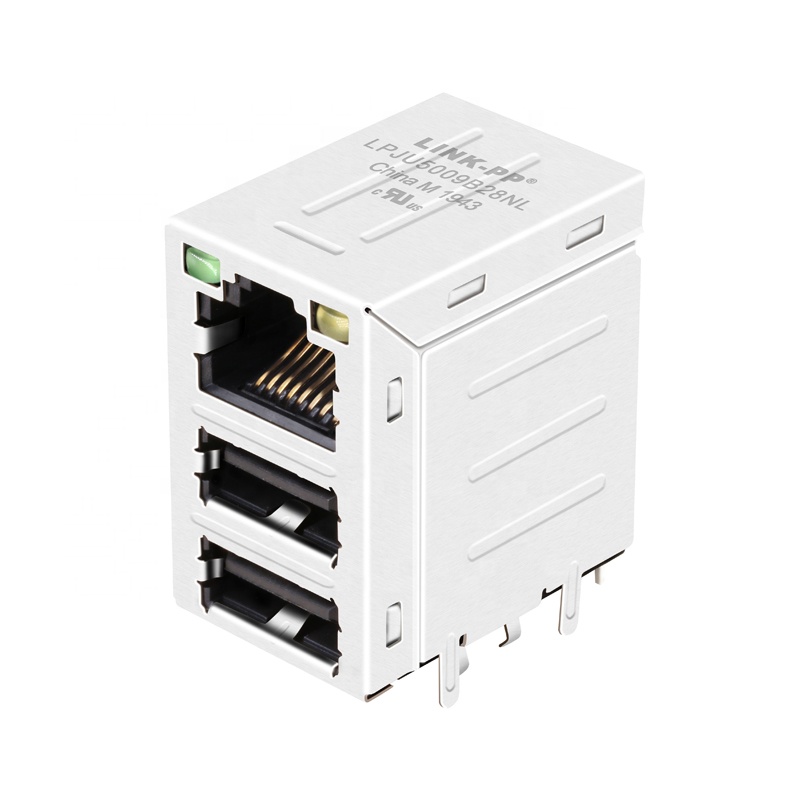

Magnetic RJ45 Option 2
Magnetic RJ45 Option 3
Magnetic RJ45 Option 4
Magnetic RJ45 Option 5

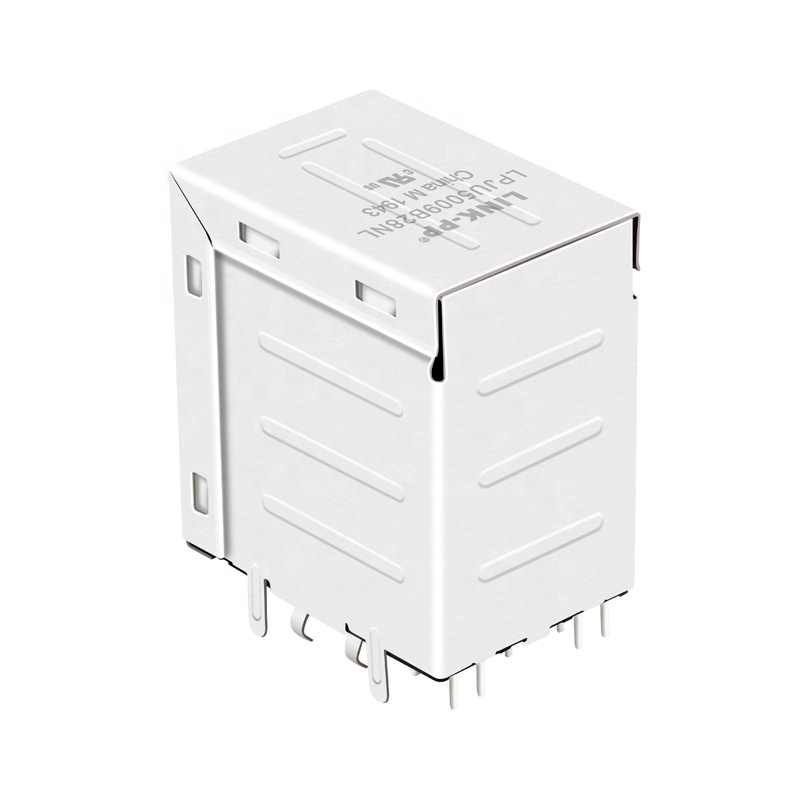

Magnetic RJ45 Option 6
Magnetic RJ45 Option 7
Product Application Area Overview
Why Choose Us
Quality Standard & Verification
Testing and Assembly Infrastructure
Advanced Machinery Overview
Integrated Production Facility
Profile Overview
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE and UL, owning advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components and strong technical support as well.

Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem. We have exported our products to more than 30 countries and regions in the world, including Germany, France, England, USA, Singapore, Korea, Canada and Japan.

Our engineering staff is dedicated to identifying, developing and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith in pursuing excellence will convince you to build a long-term partnership with us.
Production Workshop Floor
Quality Management Station
High Precision Test Equipment
Storage and Shipment Facility
FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee is covered by the customer.
3. What is your delivery time?
We have ready-to-ship stock for standard designs, and delivery is 15-30 days for mass production orders.
4. What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, custom solutions are welcome. Please send us your specifications for detailed customization discussions.
6. What is your advantage?
We have 19 years of dedicated production experience in magnetics and partner with leading global enterprises for long-term supply solutions.
