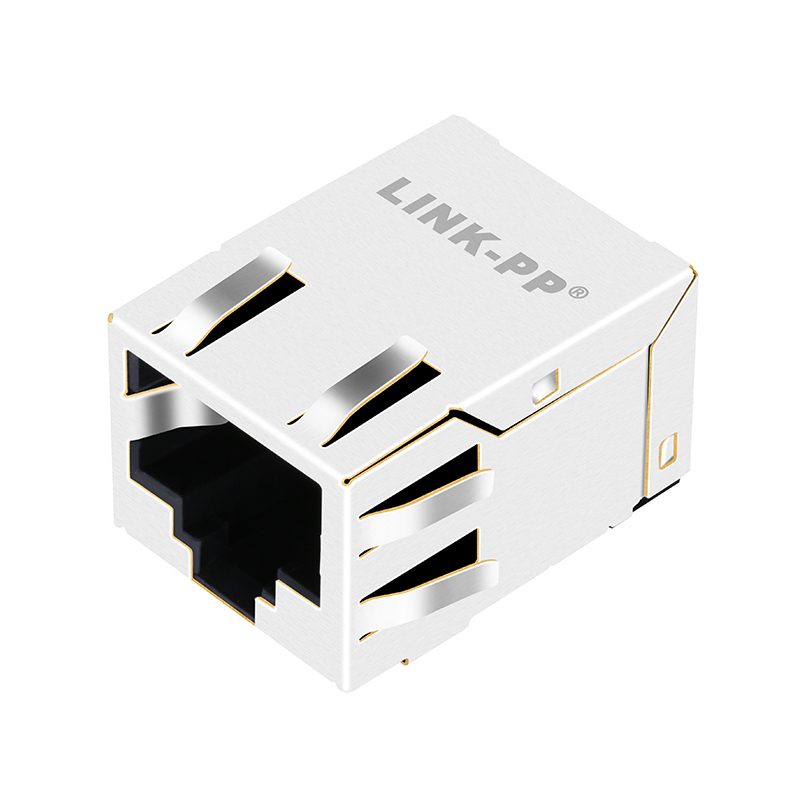

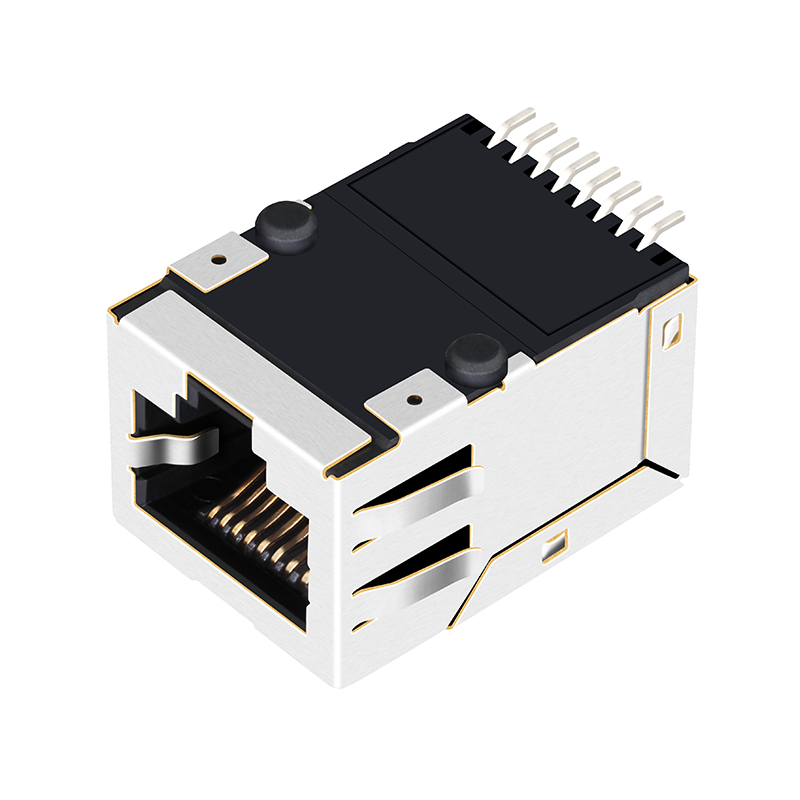

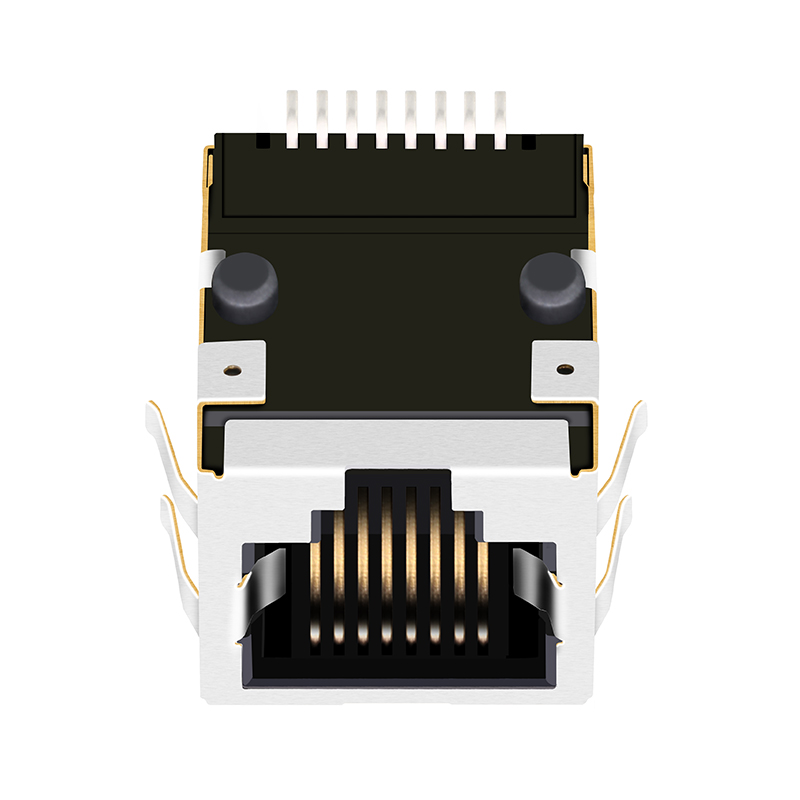

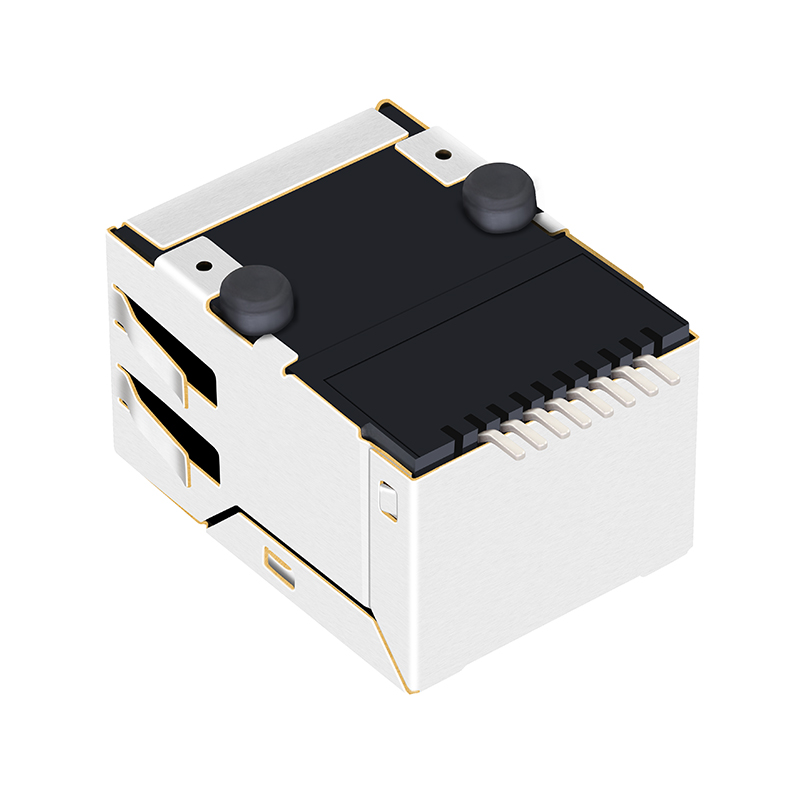

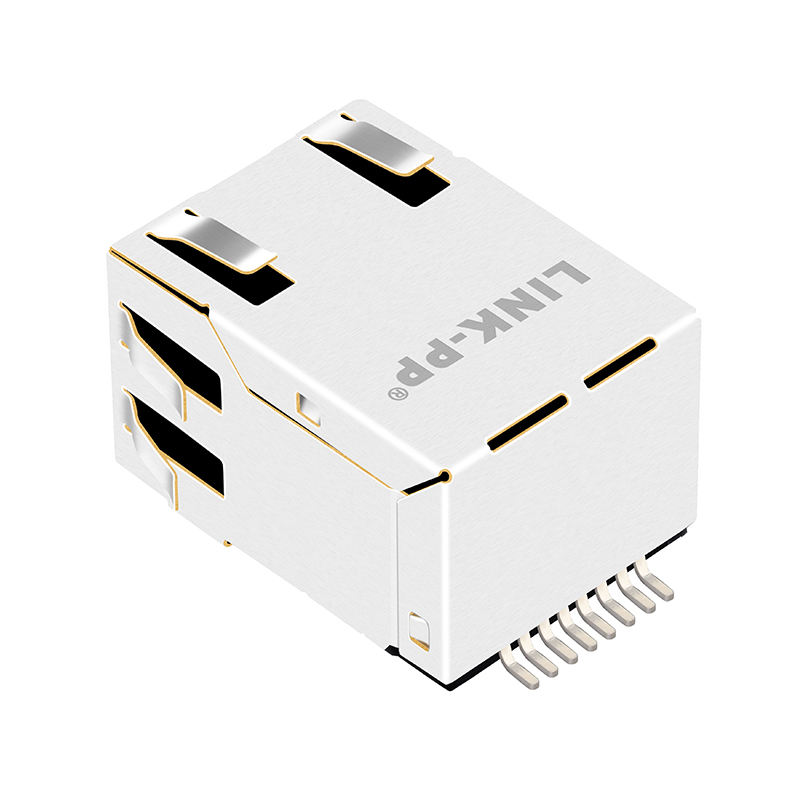

Low Profile RJ45 connector 8P8C SMT Top Entry Modular Jack 0855135109
| Part Number |
0855135109 |
| Application-LAN |
ETHERNET(NON POE) |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Cores Per Port |
4 |
| Diodes |
NO DIODES |
| LED Option |
WITH LEDS/WITHOUT LEDS |
| Latch |
UP/DOWN |
| Number of Ports |
1X1 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH OR WITHOUT |
| Speed |
10/100/1000 BASE-T |
| Temperature |
0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
100% Guarantee Quality
- Manufactured Under Strict Controls
- 100% Tested (Not Just Batch Tested)
- OEM partner for leading global brands
- Successful partnerships with global technology leaders
- Preferred supplier for leading global tech firms
- Quality Guarantee: 6 Years
Competitive Price And Service
- More Competitive Price Than Major Brands
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
- 90% Off Shipping Cost By DHL, UPS, FEDEX, Or TNT
Quality Policy
- Achieve the highest level of customer satisfaction through continuous improvements in quality, delivery, and service
- We are committed to and expect quality performance at every level
- Our standard is defect-free products and services
Technical Specifications & Drawings
Frequently Asked Questions
What are the primary applications for the 0855135109 modular jack?
This low-profile RJ45 connector is designed for standard Ethernet (Non-PoE) LAN configurations in high-density communication and networking equipment.
Does this RJ45 connector support surface-mount technology (SMT)?
Yes, this model features SMT Top Entry mounting design, allowing for streamlined automated pick-and-place assembly on PCBs.
What gold plating options are available for the contact mating area?
The contacts are available with gold plating thicknesses of 6u", 15u", or 30u" to suit varied electrical performance and durability specifications.
What is the temperature tolerance range for this component?
It supports standard commercial operating temperatures from 0 to 70°C and extended industrial ranges from -40 to 85°C.
Does this connector comply with environmental standards like RoHS?
Yes, it is RoHS-5 compliant with standard lead in solder exemption, conforming to common eco-friendly industrial manufacturing guidelines.
