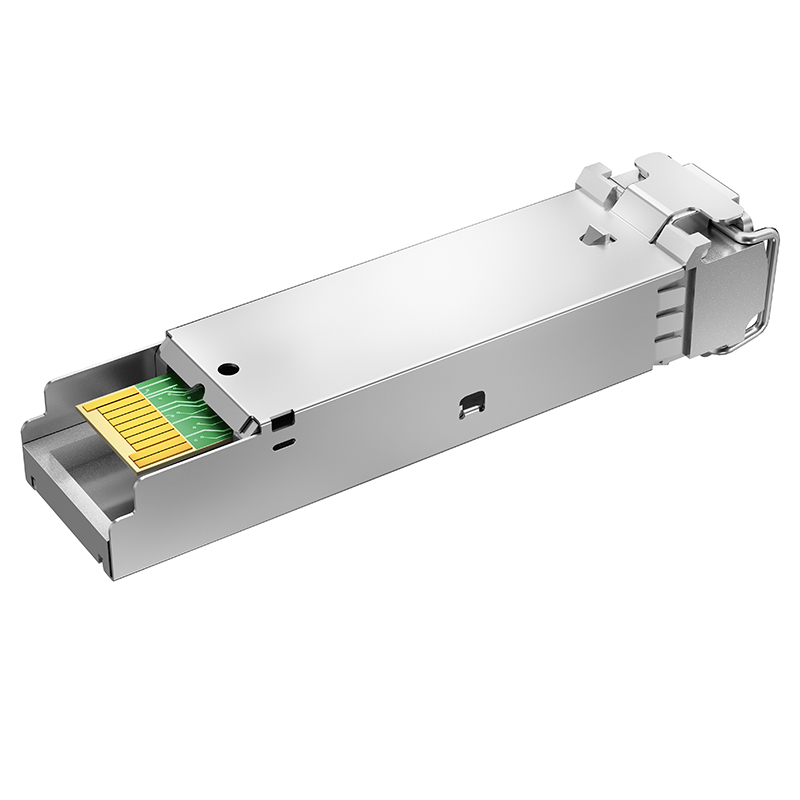

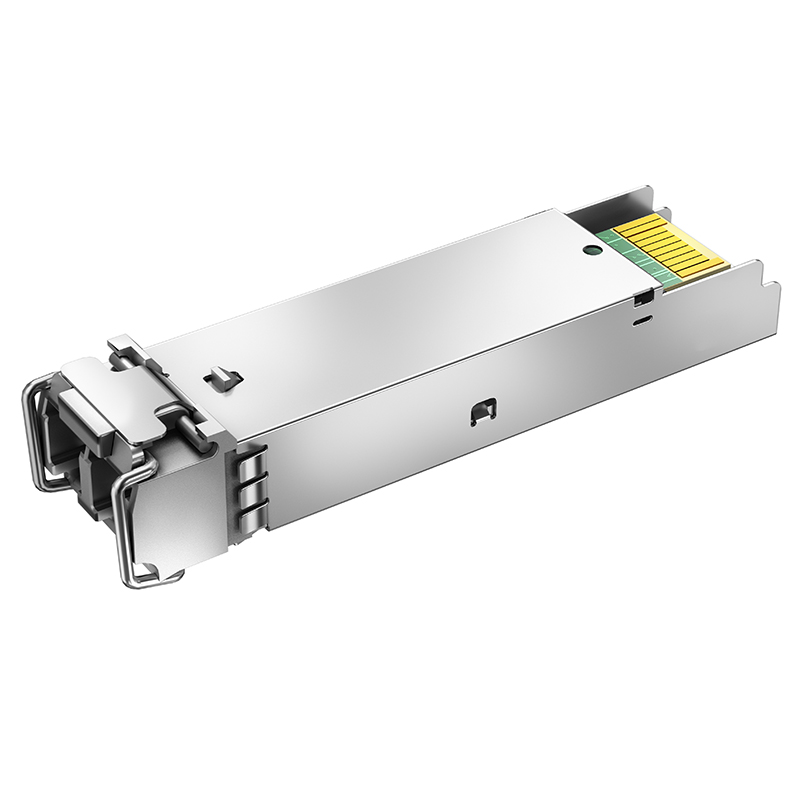

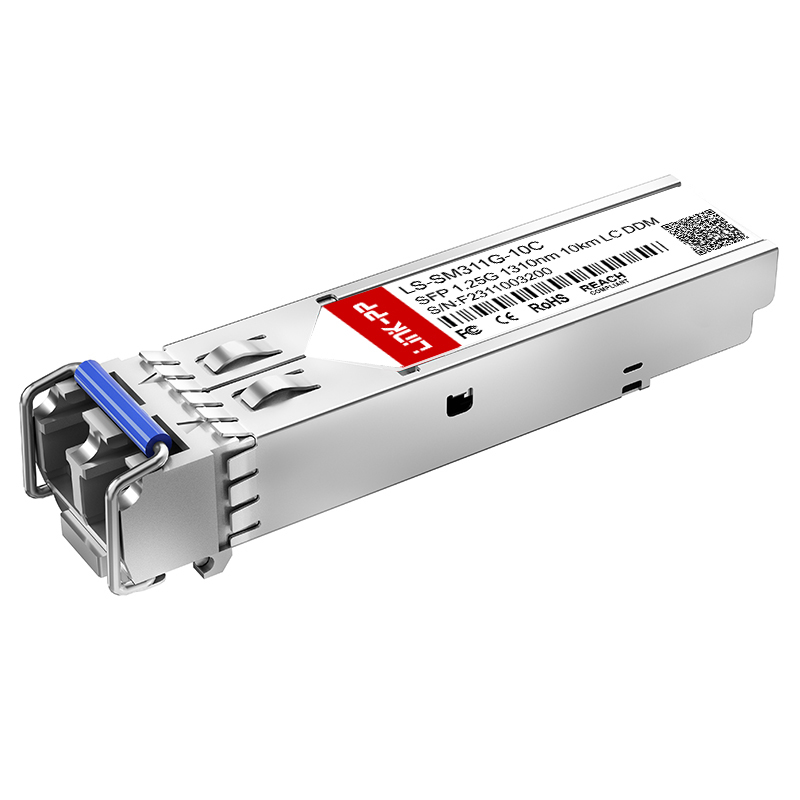

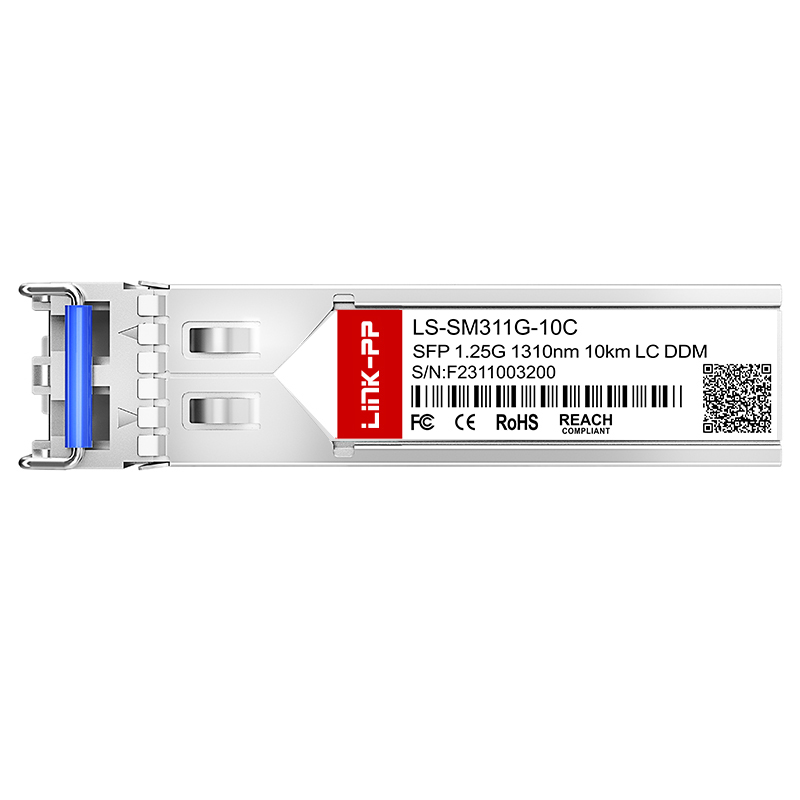

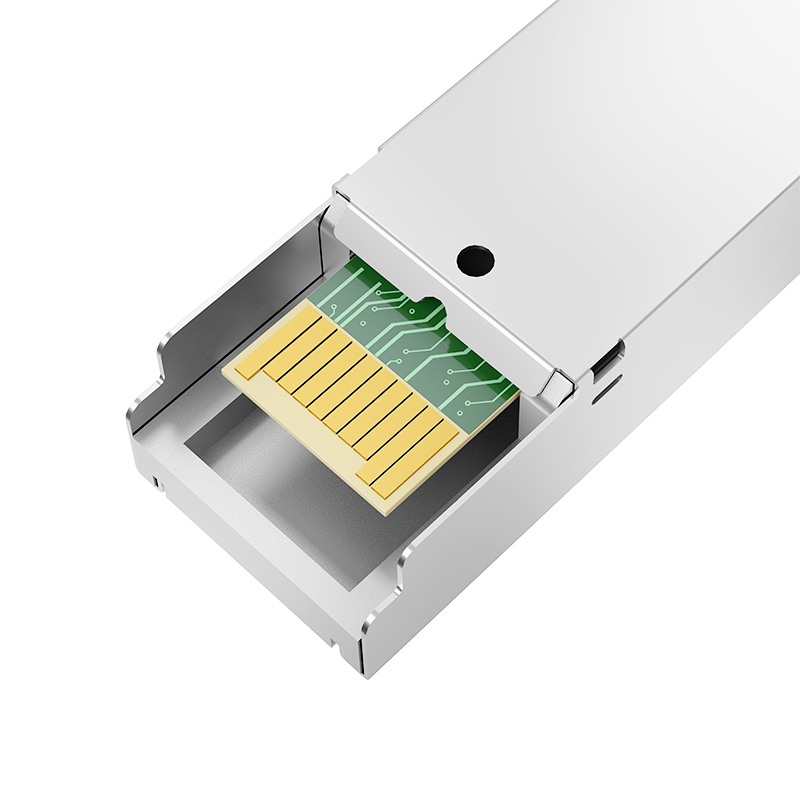

J4859D HPE Aruba Compatible 1000BASE LX SMF Optical Transceiver Single Mode 1G SFP Module 1310nm 10km
J4859D HPE Aruba Compatible 1000BASE LX SMF Optical Transceiver Single Mode 1G SFP Module 1310nm 10km
J4859D HPE Aruba Compatible 1000BASE LX SMF Optical Transceiver Single Mode 1G SFP Module 1310nm 10km
J4859D HPE Aruba Compatible 1000BASE LX SMF Optical Transceiver Single Mode 1G SFP Module 1310nm 10km
J4859D HPE Aruba Compatible 1000BASE LX SMF Optical Transceiver Single Mode 1G SFP Module 1310nm 10km
1 / 5
J4859D HPE Aruba Compatible 1000BASE LX SMF Optical Transceiver Single Mode 1G SFP Module 1310nm 10km
J4859D HPE Aruba Compatible 1000BASE LX SMF Optical Transceiver Single Mode 1G SFP Module 1310nm 10km
J4859D HPE Aruba Compatible 1000BASE LX SMF Optical Transceiver Single Mode 1G SFP Module 1310nm 10km
J4859D HPE Aruba Compatible 1000BASE LX SMF Optical Transceiver Single Mode 1G SFP Module 1310nm 10km
J4859D HPE Aruba Compatible 1000BASE LX SMF Optical Transceiver Single Mode 1G SFP Module 1310nm 10km

J4859D HPE Aruba Compatible 1000BASE LX SMF Optical Transceiver Single Mode 1G SFP Module 1310nm 10km

Send Inquiry

Product Description

J4859D HPE Aruba Compatible 1000BASE LX SMF Optical Transceiver Single Mode 1G SFP Module 1310nm 10km
Products Description
Item 1000BASE SFP
Compatible J4859D HPE Aruba
Part Status Active
Form Factor SFP
Max Data Rate 1.25Gbps
Wavelength 1310nm
Max Cable Distance 10Km
Media SMF
Connector Duplex LC
Optical Component FP/PIN
TX Power -9.5~-3dBm
Receiver Sensitivity <-20dBm
Receiver Overload -3dBm
Power Consumption ≤1W
Extinction Ratio >9dB
DDM/DOM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Protocols IEEE 802.3ah-2004, IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant
Warranty 5 Years
Sample Available
Optical Transceiver Types Diagram
VIEW OUR SOLUTION
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Solution Overview
Optical Transport Networks
Optical Transport Networks
We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, a series of high-speed optical module has been developed which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless Networks
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx Solutions
FTTx
Aimed at global communication network constructors, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
Subsystems
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Subsystem Flowchart Diagram
Production Process Line 1
Production Process Line 2
⚙ Related Products SFP Cage ⚙
SFP Cage Option 1
SFP Cage Option 2
Why Choose Us
Advanced Equipment Advantage
Quality Inspection Control
High Capacity Manufacturing
Fast Reliable Delivery
FAQ
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping fees are to be covered by the customer.
What is your delivery time?
Items in stock are ready to ship immediately, while mass production typical lead times range from 15 to 30 days.
What after-service can you offer?
We provide a one-year guarantee period along with online technical support.
Can you accept OEM/ODM orders?
Yes, we accept both OEM and ODM orders. Please share your detailed requirements with us so we can proceed with a discussion.
What is your advantage?
We offer extensive specialized production experience, advanced automated manufacturing facilities, strict quality control procedures, and high-standard compatibility testing.
