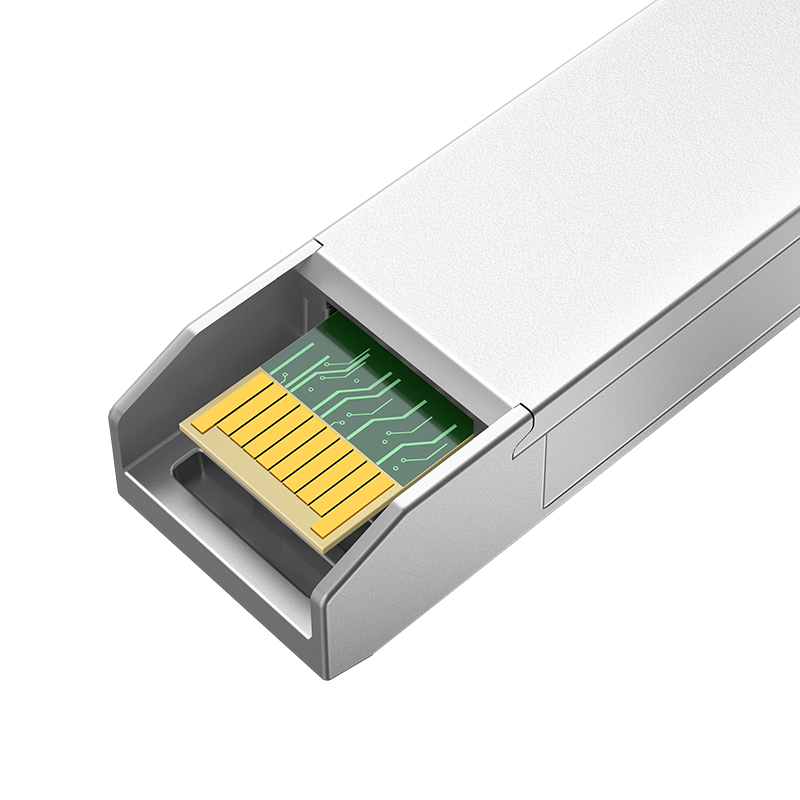

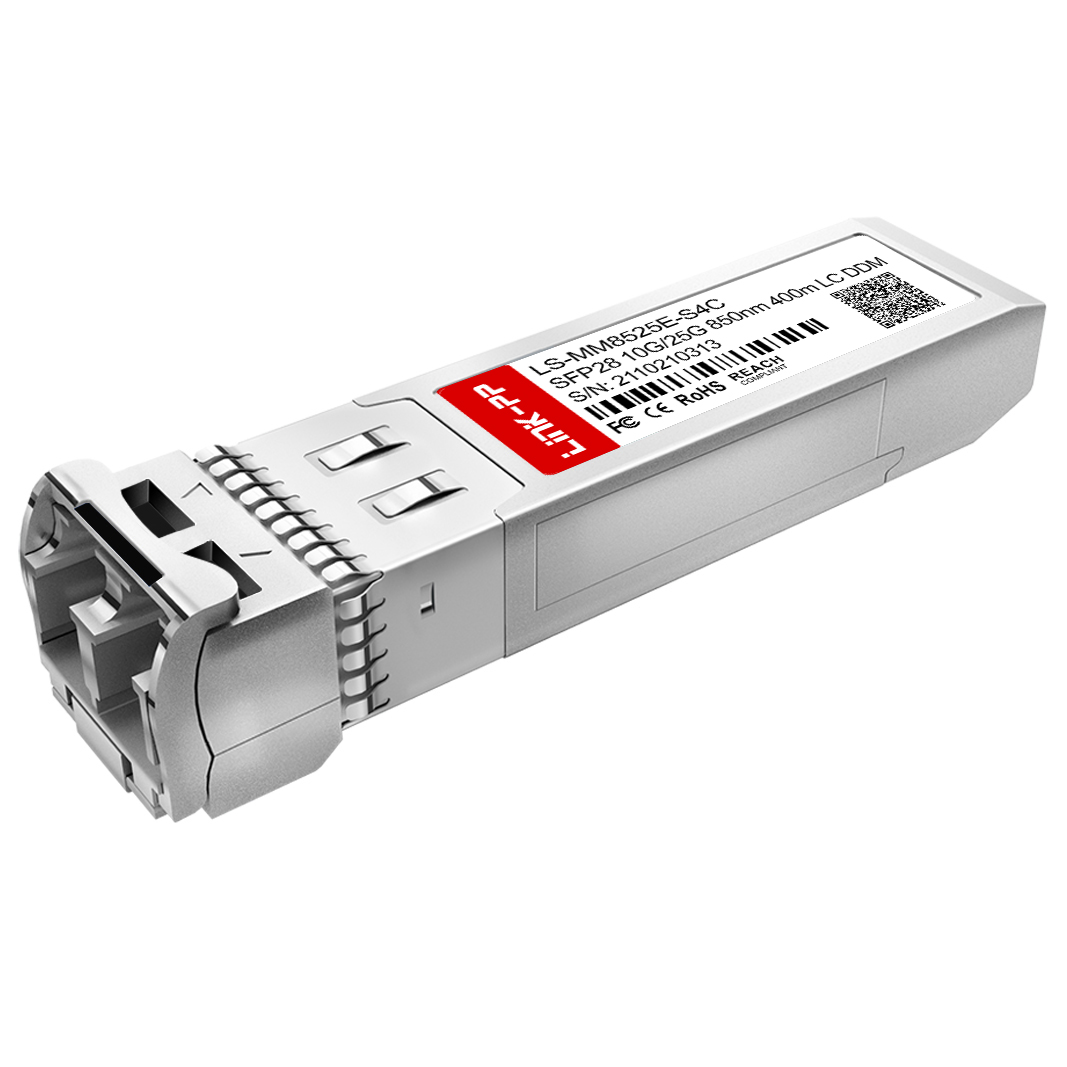

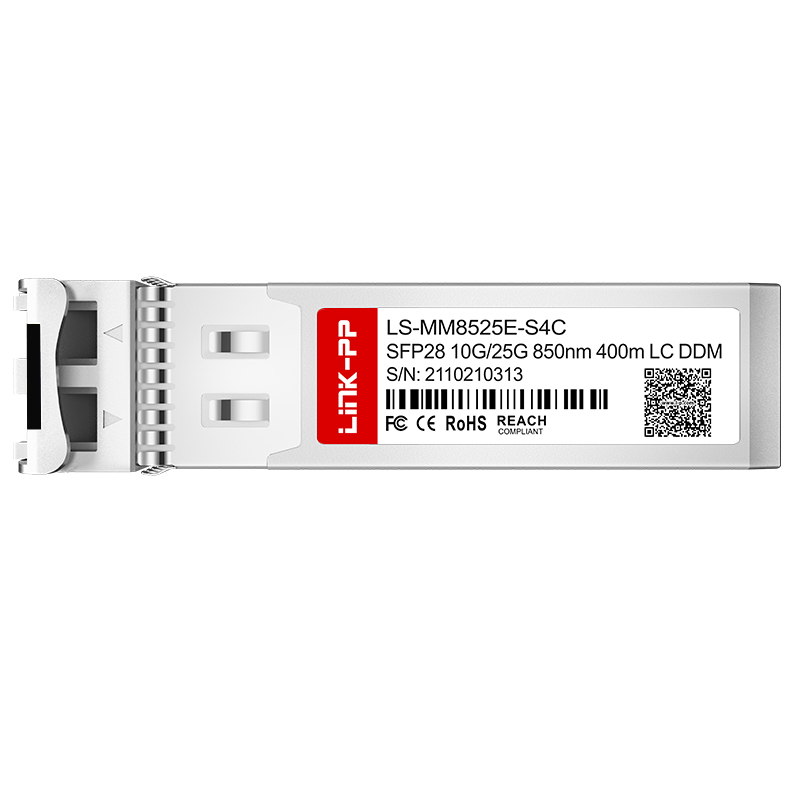

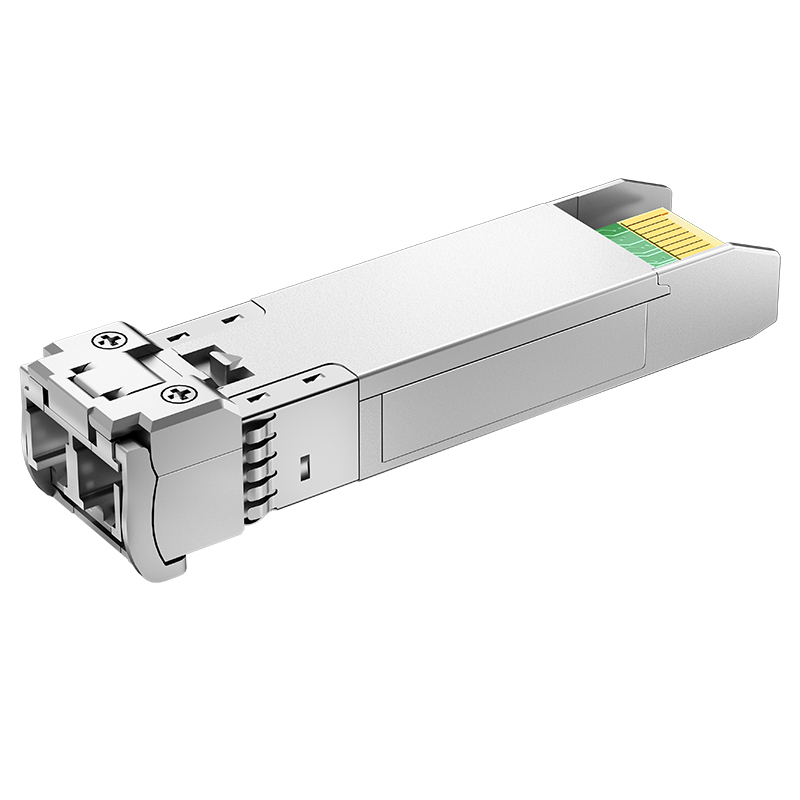

Cisco SFP-10/25G-CSR-S Compatible Dual-rate 10G/25G SFP28 Transceiver 400m MMF Optical Transceiver Module
Products Description
| Item |
25G SFP28 Transceiver |
| Part No. |
LS-MM8525E-S4C |
| Part Status |
Active |
| Form Factor |
SFP28 |
| Max Data Rate |
10G/25Gbps |
| Wavelength |
850nm |
| Max Cable Distance |
400m |
| Media |
MMF |
| Connector |
Duplex LC |
| Optical Component |
VCSEL/PIN |
| TX Power |
-6.4~2.4dBm |
| Receiver Sensitivity |
<-6dBm |
| Receiver Overload |
2.4dBm |
| Power Consumption |
≤1W |
| Extinction Ratio |
≥2dB |
| DDM/DOM |
Supported |
| Commercial Temperature Range |
0°C to 70°C / -40°C to 85°C |
| Protocols |
SFF-8472, SFF-8024, SFF-8431, SFF-8432, IEEE802.3by |
| Warranty |
5 Years |
| Sample |
Available |
View Our Solution
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transport Networks
We can provide end-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
Aimed at global communication network constructors, we provide FTTx optical fiber access total solutions covering all-optical or optical copper combined access solutions and products.
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
❖ Related Products: SFP Cage
Why Choose Us
Manufacturing Capabilities
As a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE, and UL, we own advanced manufacturing facilities and test equipment imported from abroad.
Established in 1997, we currently have around 2000 staff. With an abundant production capacity of 3000K per month, we are able to deliver products within a short timeframe.
Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. Utilizing the latest optoelectronics technologies, we develop, manufacture, and sell products worldwide.
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples to test quality, though shipping fees are to be covered by the client.
What is your delivery time?
Items in stock are ready to ship immediately, while mass production takes approximately 15-30 days.
What after-sales service do you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Do you accept OEM/ODM orders?
Yes, please contact us with your details so we can have a detailed discussion.
What is your advantage?
We possess 19 years of professional production experience and have been a trusted partner for major global enterprises for many years.
