| Item | Specification |
|---|---|

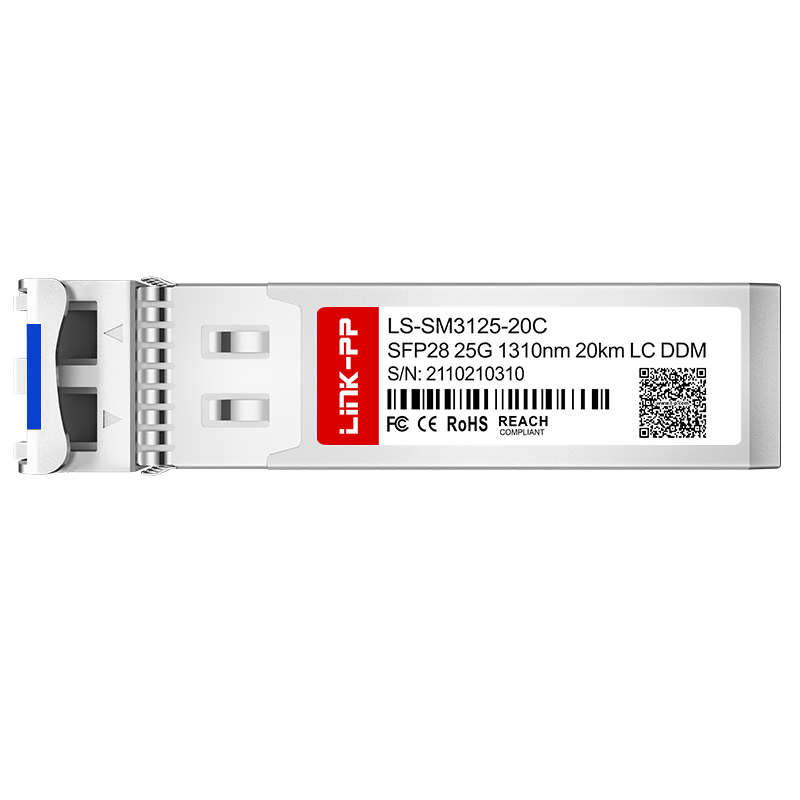

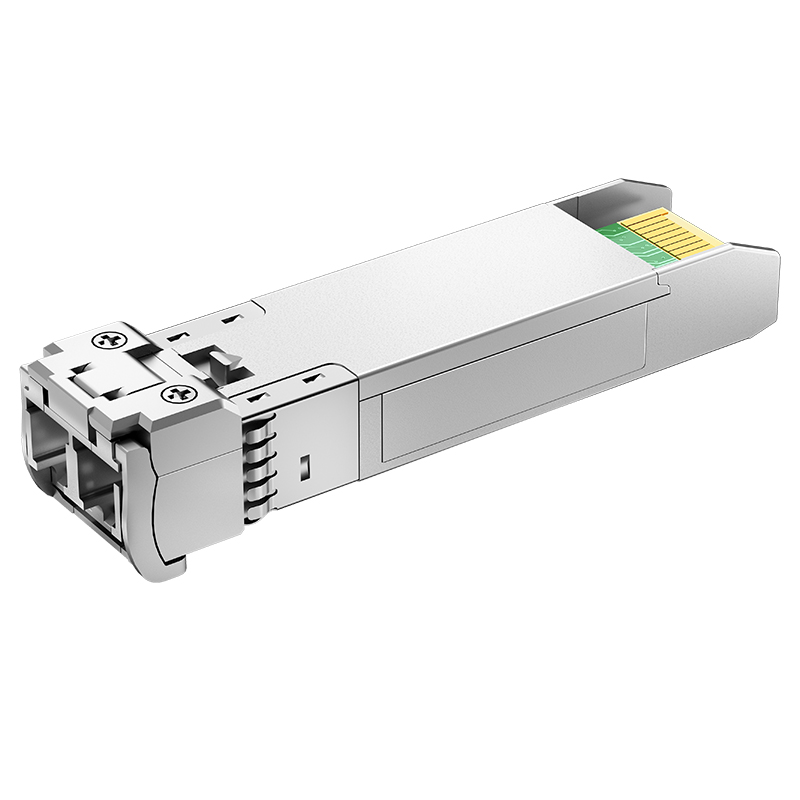

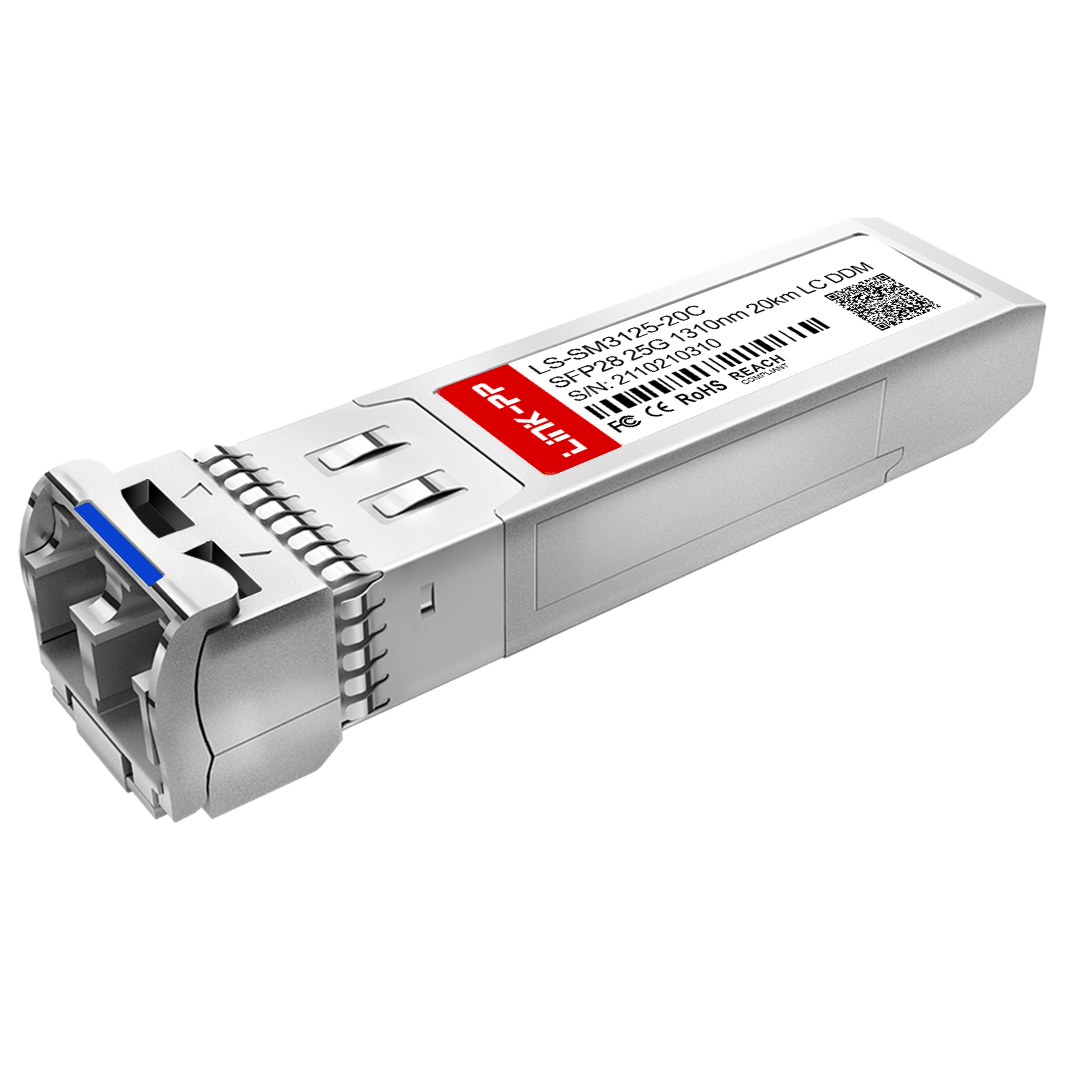

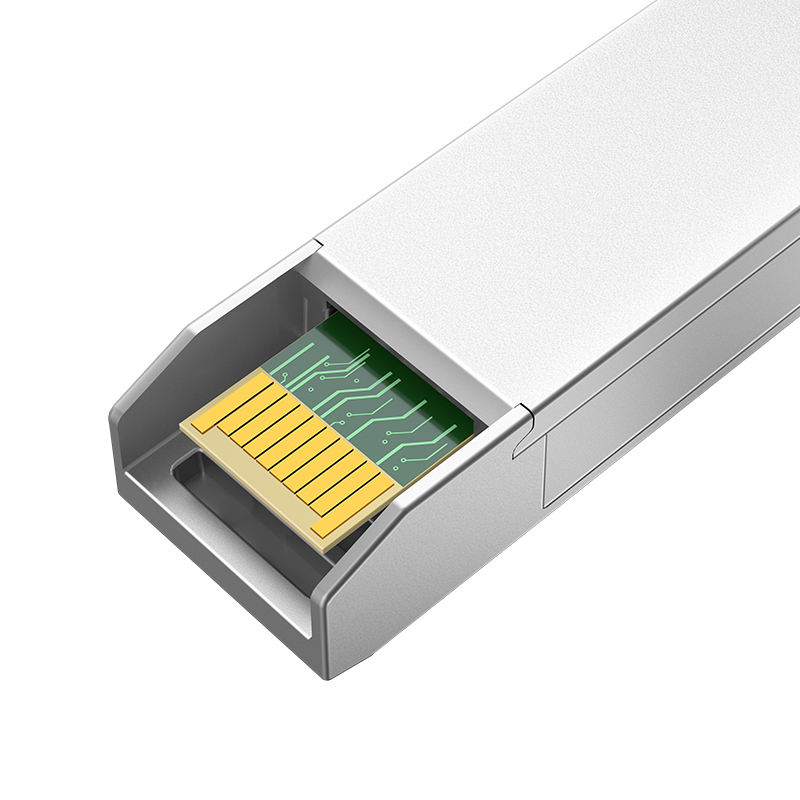

| Item | 25G SFP28 Transceiver |
| Part No. | LS-SM3125-20C |
| Part Status | Active |
| Form Factor | SFP28 |
| Max Data Rate | 25Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 20km |
| Media | SMF |
| Connector | Duplex LC |
| Optical Component | DFB/PIN |
| TX Power | -7~2dBm |
| Receiver Sensitivity | <-11.3dBm |
| Receiver Overload | 2dBm |
| Power Consumption | ≤1.2W |
| Extinction Ratio | 3.5dB |
| DDM/DOM | Supported |
| Commercial Temperature Range | 0℃ to 70°C / -40℃ to 85℃ |
| Protocols | SFF-8402, SFF-8472, MSA SFP+ |
| Warranty | 5 Years |
| Sample | Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
We provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
Aimed at global communication network constructors, we provide FTTx optical fiber access total solutions covering all-optical or optical copper combined access solutions and products.
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Yes, we can offer you a free sample to test quality, but you should cover the shipping fee.
Ready to ship for items in stock, and 15-30 days for mass production orders.
We provide a one-year guarantee period along with 24-hour online technical support.
Yes, please send your inquiries to us so that we can proceed with a detailed discussion.
We possess 19 years of professional production experience and have maintained partnerships with leading global enterprises for many years.
