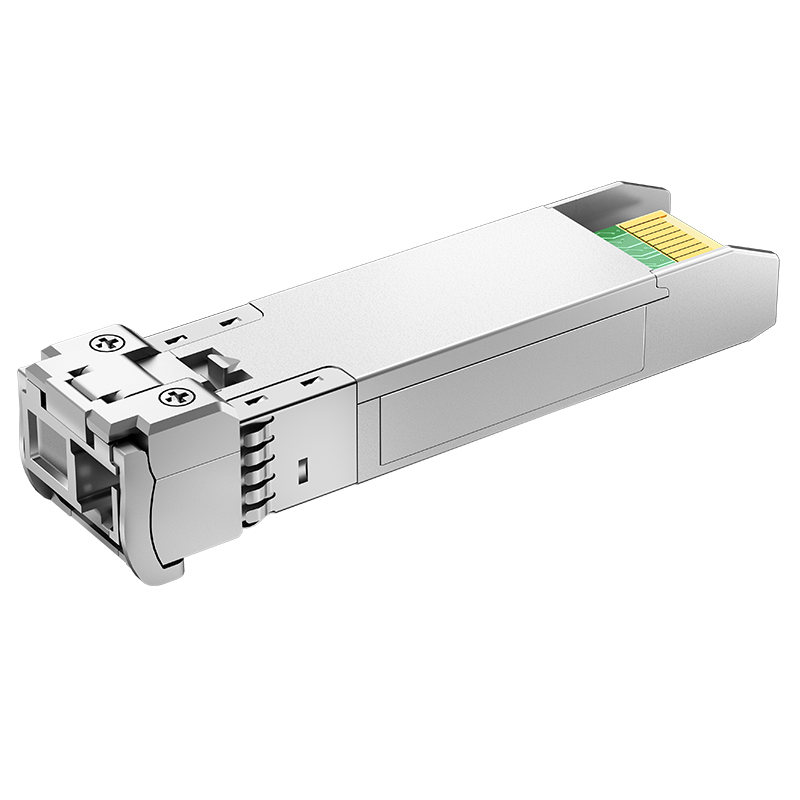

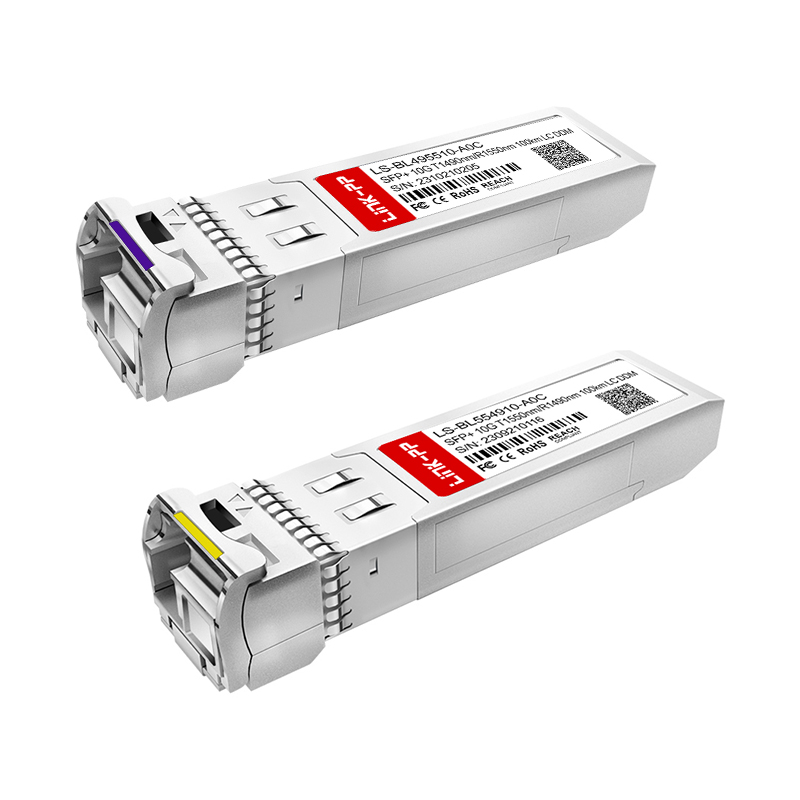

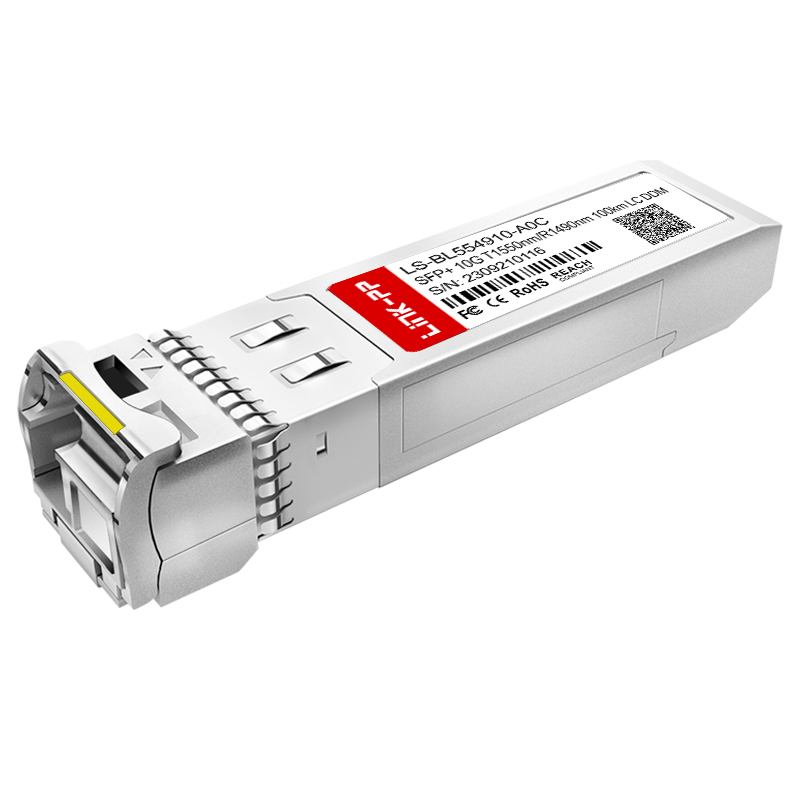

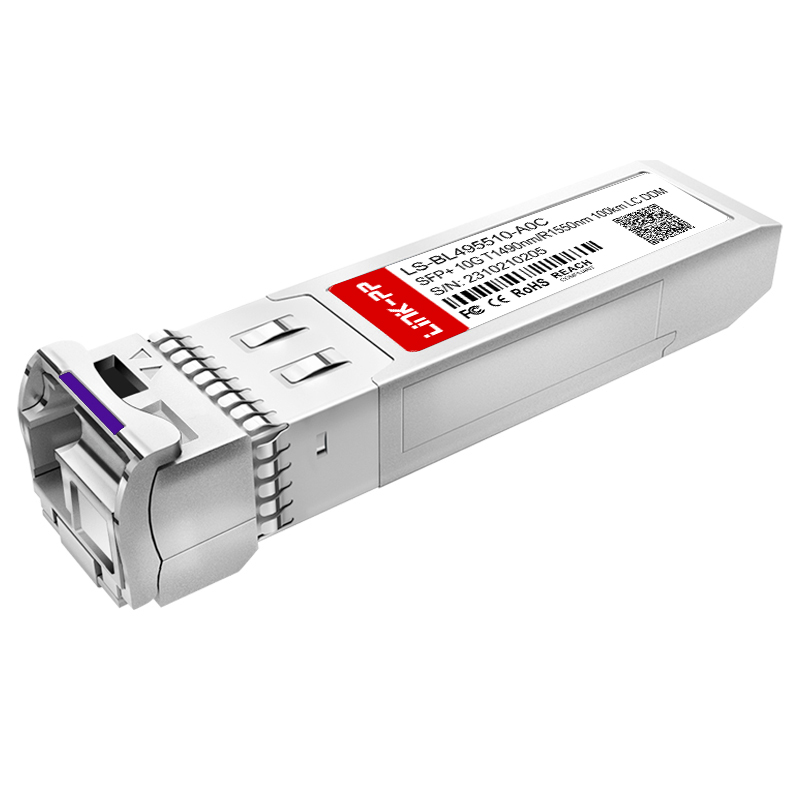

1490nm/1550nm Bidirectional Simplex LC 10G BiDi SFP+ 100km SMF Optical Transceiver Module

Product Description

1490nm/1550nm Bidirectional Simplex LC 10G BiDi SFP+ 100km SMF Optical Transceiver Module
Products Description
Item 10G BiDi SFP+
Part Status Active
Form Factor SFP+
Max Data Rate 10G
Max Cable Distance 100km
Wavelength 1490nm/1550nm
Connector Simplex LC
Optical Components EML BiDi
Media SMF
TX Power 1~5dBm
Receiver Sensitivity <-22dBm
DDM/DOM DDM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Protocols SFP+ MSA Compliant, CPRI, eCPRI
Warranty 5 Years
Sample Available
View Our Solution
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Module Solution
Provide 10~25G BiDi Transceiver
10G 25G BiDi Transceiver
Optical Transceiver Overview
Transceiver Product Line
Application Scenarios
Optical Transport Networks
We provide end-to-end DWDM devices with almost all optical elements - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.
Optical Transport Networks
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Cloud and Enterprise
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which meet the needs of various scenarios in 4G/5G systems.
Wireless Networks
FTTx
Aimed at global communication network constructors, our FTTx optical fiber access total solutions cover all-optical or optical copper combined access solutions and products.
FTTx Solutions
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Subsystems
Production Process 1 Production Process 2
Related Products SFP Cage
SFP Cage Related Products
Why Choose Us
Quality Assurance Technical Strength Advanced Testing Global Certificates
Manufacturing Profile & Capabilities
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE and UL. Our facilities own advanced manufacturing equipment and testing instruments imported from abroad. Established in 1997, our current facility utilizes an abundant production capacity of up to 3000K units per month to ensure delivery within a short time.

Additionally, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. With the latest optoelectronics technologies, we develop, manufacture, and distribute products globally.
Manufacturing Plant Testing Lab
Frequently Asked Questions
Q1: Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, lan transformers, RJ11 connectors, and SFP modules.
Q2: Can I request a sample before proceeding to mass production?
Yes, we can provide samples to test and verify the quality, though the shipping fee is covered by the buyer.
Q3: What is the typical delivery timeframe?
For in-stock items, products are ready to ship. For mass production orders, the lead time is typically between 15 to 30 days.
Q4: What kind of after-sales service and support do you provide?
We offer a one-year guarantee period along with 24-hour online technical support to assist you with any inquiries.
Q5: Do you accept OEM or ODM orders?
Yes, we accept both OEM and ODM orders. Please send us your specifications and details so we can assist you with your requirements.
Q6: What are your key production advantages?
With over 19 years of professional manufacturing experience and partnerships with leading global technology providers, we deliver premium performance and certified reliability.
